- Metric heavy duty stud type cam follower
- Cylindrical outside diameter
- Full complement cylindrical rolling elements
- Slot hole
- Metallic shield sealing
- Jam nuts and lube fitting included
MCFD 40 X

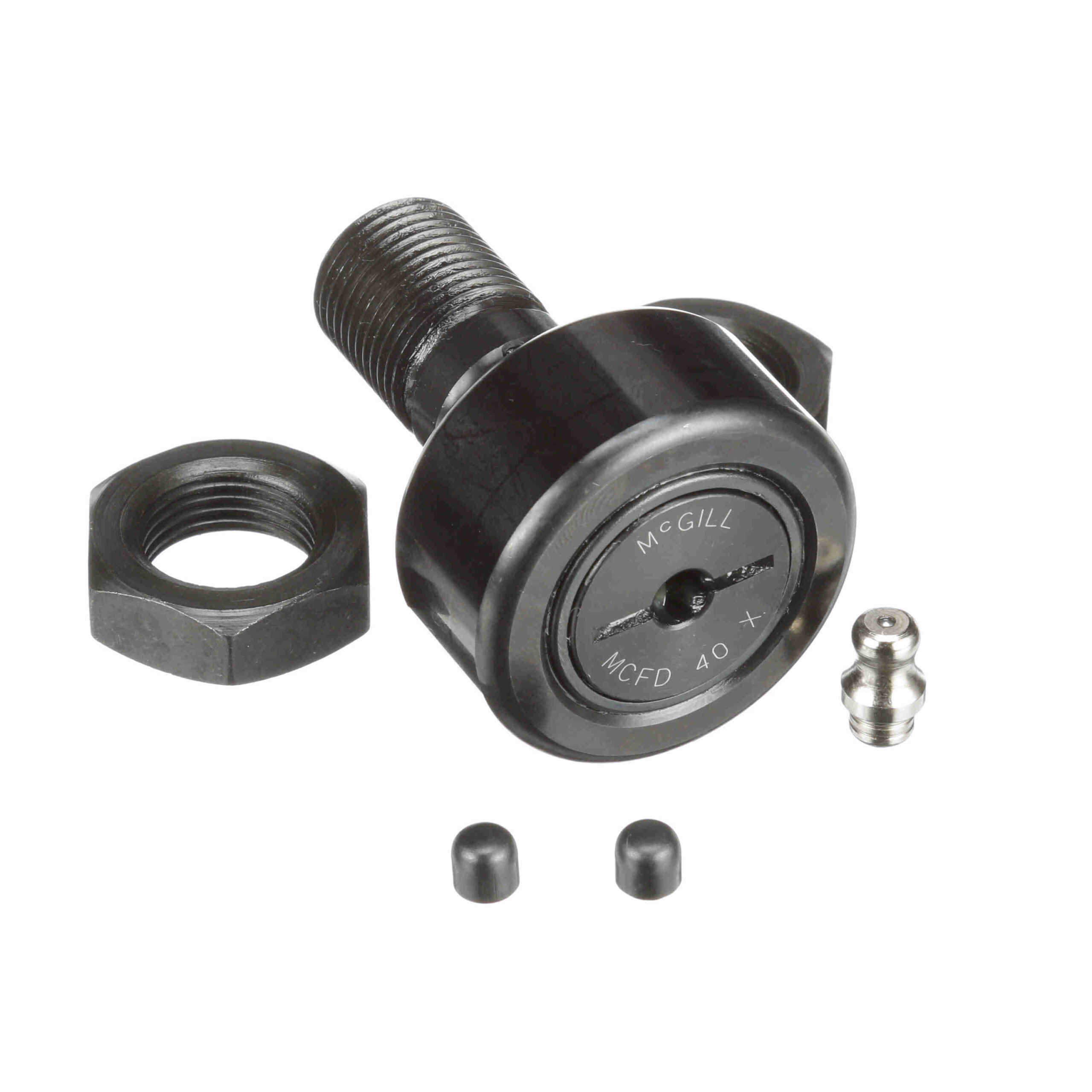

McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Shielded – MCFD 40 X
$56.23
Out of stock
Out of stock
| Dynamic Track Roller Load Rating (N): | 18, 000 N | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Dynamic Radial Rating: | 4 | Hex/Slot: | Screwdriver Slot |
| Series: | Heavy Duty Metric CAMROL® | Limiting Speed: | 6 |
| Adjustment: | None | Sealing: | Shielded |
| Rolling Element: | Cylindrical Roller | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 22 | Dynamic Load Rating (lb): | 5, 500 lb |
| Platform: | CAMROL® | Stud Type: | Standard Stud |
| Roller Shape: | Cylindrical | Static Load Rating: | 22 |
| Tolerance Class: | P0 Equivalent | Lubrication Hole Location: | Stud side |
| Ability to Relubricate: | Yes | Dynamic Load Rating (N): | 25, 000 N |
| Clamping Torque (Nm): | 85 N·m | UPC: | 726166022068 |
| Weight: | 0.66 LB | Packaged Length: | 2.48 Inches |
| Packaged Width: | 1.73 Inches | Packaged Height: | 1.73 Inches |
| Country of Origin: | China |
