- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Asian dimensional standard
- Jam nuts and lube fitting included
MCF 26A SX

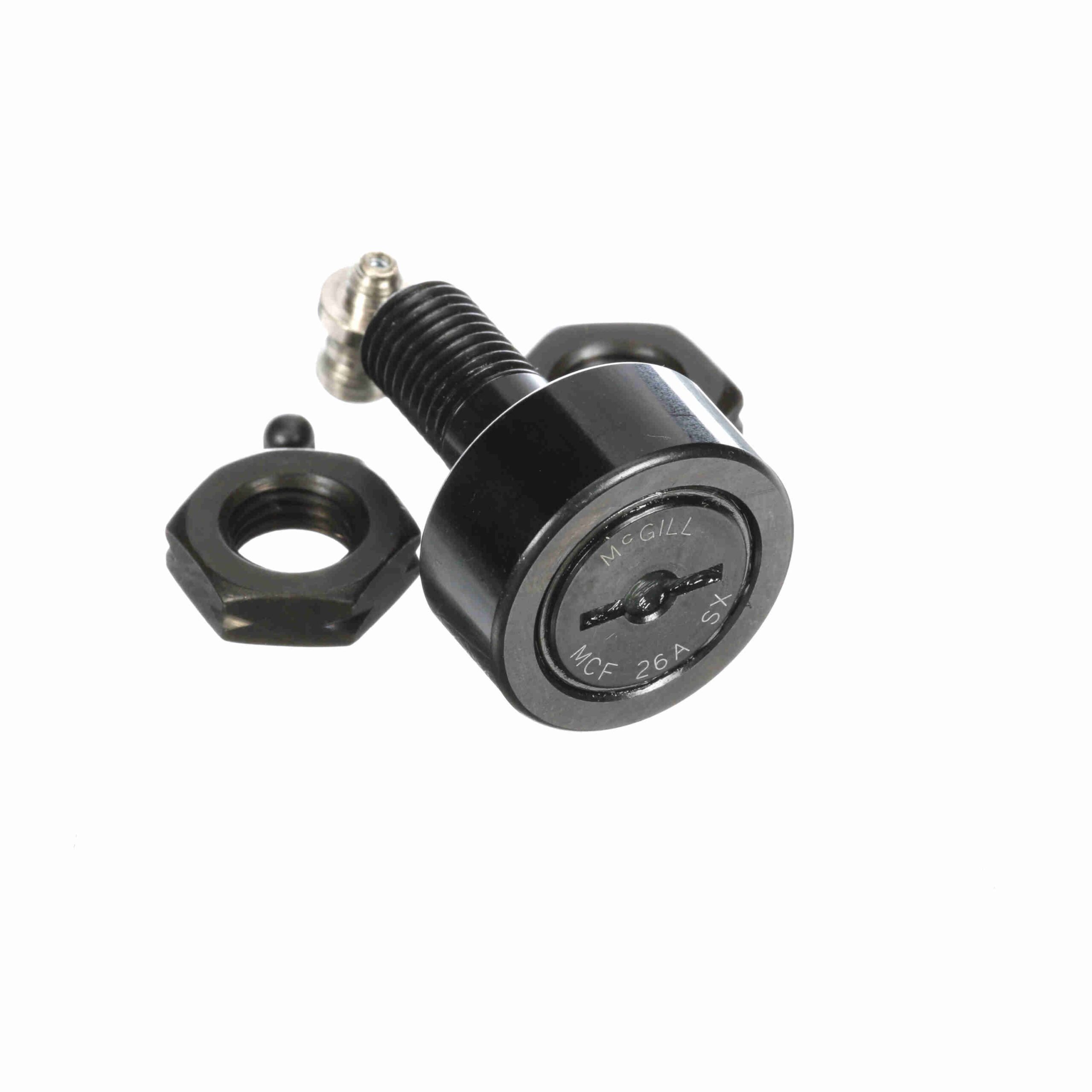

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCF 26A SX
$29.73
Out of stock
Out of stock
| Adjustment: | None | Sealing: | Sealed |
|---|---|---|---|
| Dynamic Radial Rating: | 2 | O.D. Configuration: | Cylindrical |
| Limiting Speed: | 9 | Rolling Element: | Needle Roller - Full Complement |
| Dynamic Track Roller Load Rating (N): | 7, 850 N | Hex/Slot: | Screwdriver Slot |
| Series: | Metric CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating (lb): | 2, 460 lb | Stud Type: | Standard Stud |
| Platform: | CAMROL® | Static Track Roller Load Rating: | 10 |
| Static Load Rating: | 10 | Industry Standard: | JIS |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Lubrication Hole Location: | Stud side | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 15 N·m | Dynamic Load Rating (N): | 9, 410 N |
| UPC: | 726166017347 | Weight: | 0.59 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.1 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
