- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCF 26 S

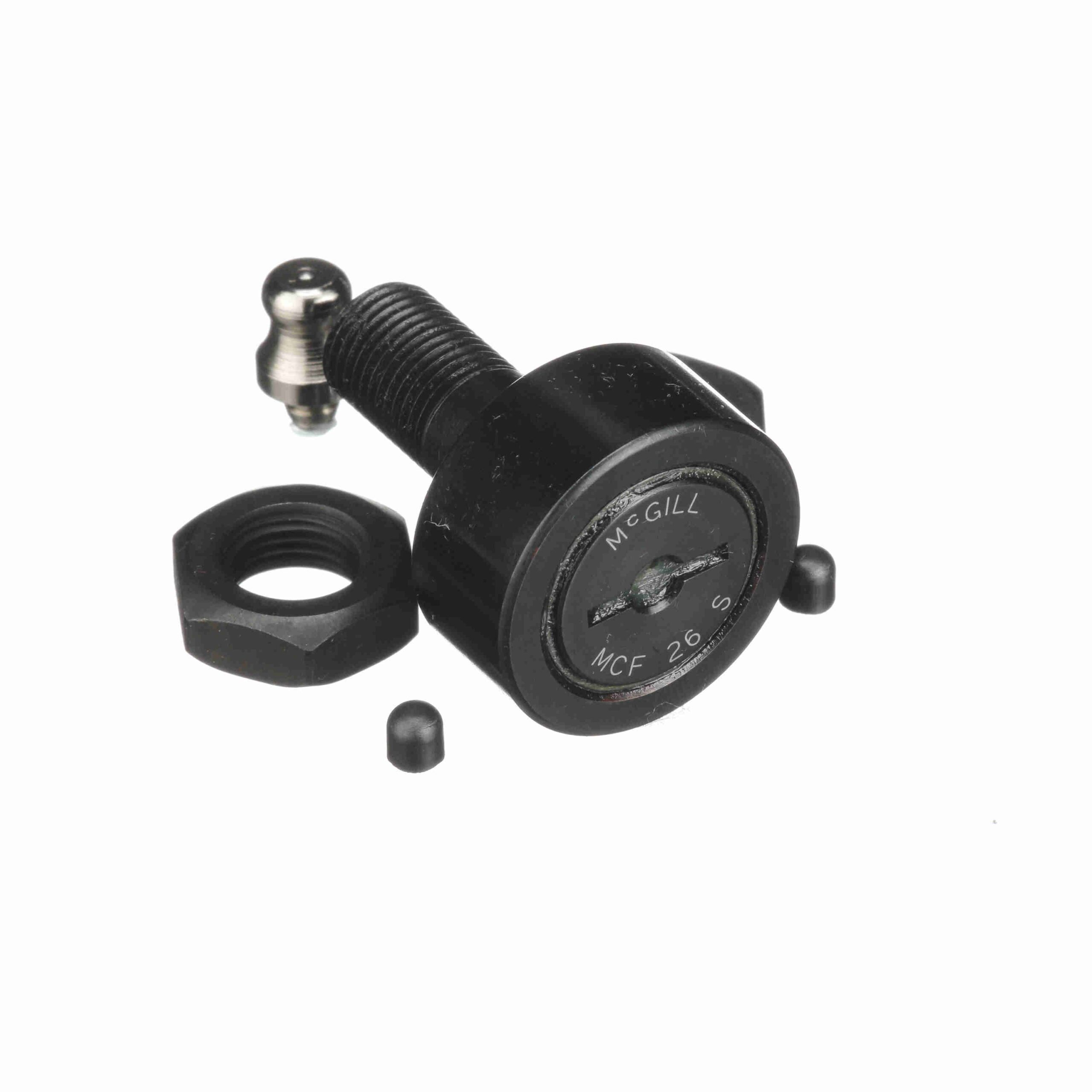

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCF 26 S
$90.72
Availability: 11 in stock
Availability: 11 in stock
| Sealing: | Sealed | Adjustment: | None |
|---|---|---|---|
| Dynamic Radial Rating: | 2 | Hex/Slot: | Screwdriver Slot |
| Series: | Metric CAMROL® | Dynamic Track Roller Load Rating (N): | 7, 850 N |
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Crowned |
| Limiting Speed: | 9 | Material: | Bearing Steel, Black Oxide Finish |
| Roller Shape: | Crowned | Stud Type: | Standard Stud |
| Industry Standard: | DIN | Static Load Rating: | 10 |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 10 |
| Platform: | CAMROL® | Dynamic Load Rating (N): | 9, 410 N |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 15 N·m |
| UPC: | 726166017132 | Weight: | 0.59 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
