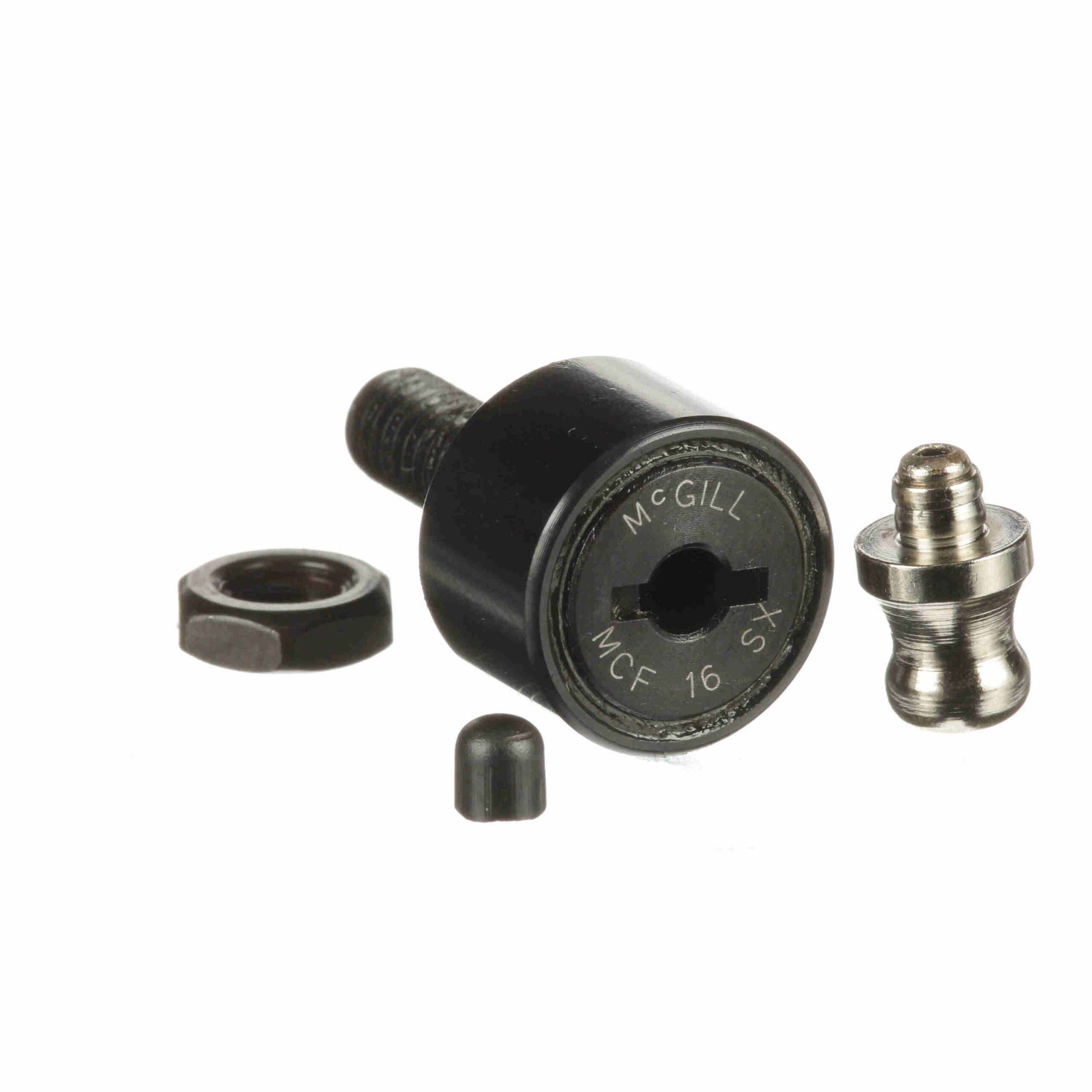

- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCF 16 SX
McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCF 16 SX
$69.06
Availability: 7 in stock
Availability: 7 in stock
| Sealing: | Sealed | Hex/Slot: | Screwdriver Slot |
|---|---|---|---|
| Series: | Metric CAMROL® | Limiting Speed: | 13 |
| Adjustment: | None | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Cylindrical | Dynamic Radial Rating: | 1 |
| Dynamic Track Roller Load Rating (N): | 5, 790 N | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN / JIS | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 2 | Platform: | CAMROL® |
| Static Load Rating: | 2 | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Clamping Torque (Nm): | 3 N·m |
| Dynamic Load Rating (N): | 6, 960 N | Ability to Relubricate: | Yes |
| UPC: | 726166014216 | Weight: | 0.07 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 0.9 Inches | Country of Origin: | China |
