- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK40-2GD 1K

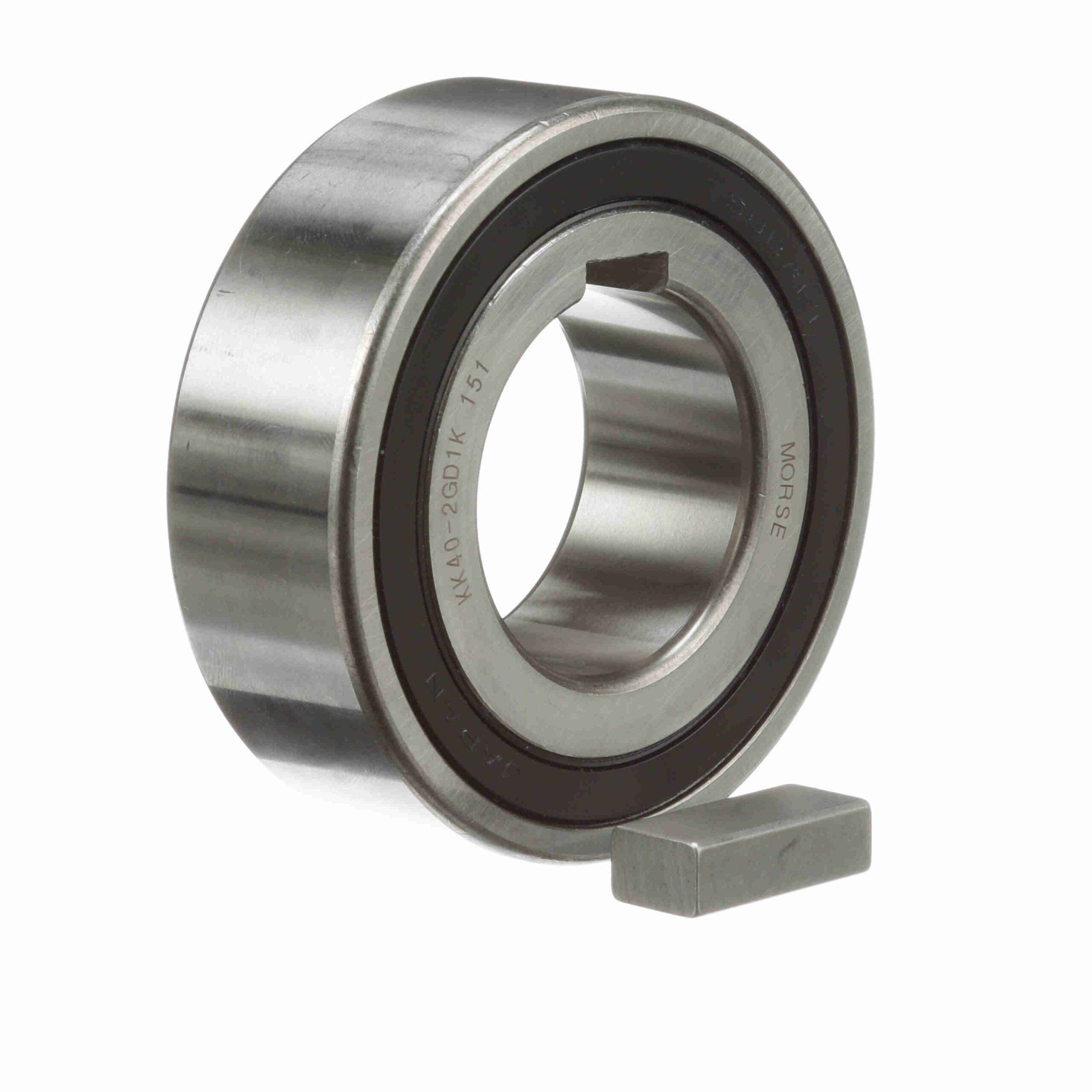

Morse KK Series CAM Clutch – KK40-2GD 1K
$1,255.53
Out of stock
Out of stock
| Type: | CAM Clutches | Static Radial Load Rating (lb): | 2630.3 |
|---|---|---|---|
| RPM Max. - Outer Race: | 900 | Dynamic Radial Load Rating (lb): | 3529.7 |
| RPM Max. -inner Race: | 1, 800 | Overall Diameter (in): | 3.15 in |
| Corner Radius: | 1.1 | Overall Diameter (mm): | 80 mm |
| Mounting Housing Diameter: | 3.149/3.1483 | Mounting Shaft Diameter: | 1.5743/1.5733 |
| Overall Width (in): | 1.063 in | Add'l Bearing Support Requirement: | No |
| Indexing Clutch: | Yes | Rated Torque Capacity (ft.-lbs.): | 191.8 |
| Product Type: | KK Series | Bore Size (mm): | 40 mm |
| Overrunning Clutch: | Yes | Backstopping Clutch: | Yes |
| UPC: | 662288927624 | Weight: | 1.90 LB |
| Packaged Length: | 3.80 Inches | Packaged Width: | 3.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
