- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J80-2 RIV 10 FT CH

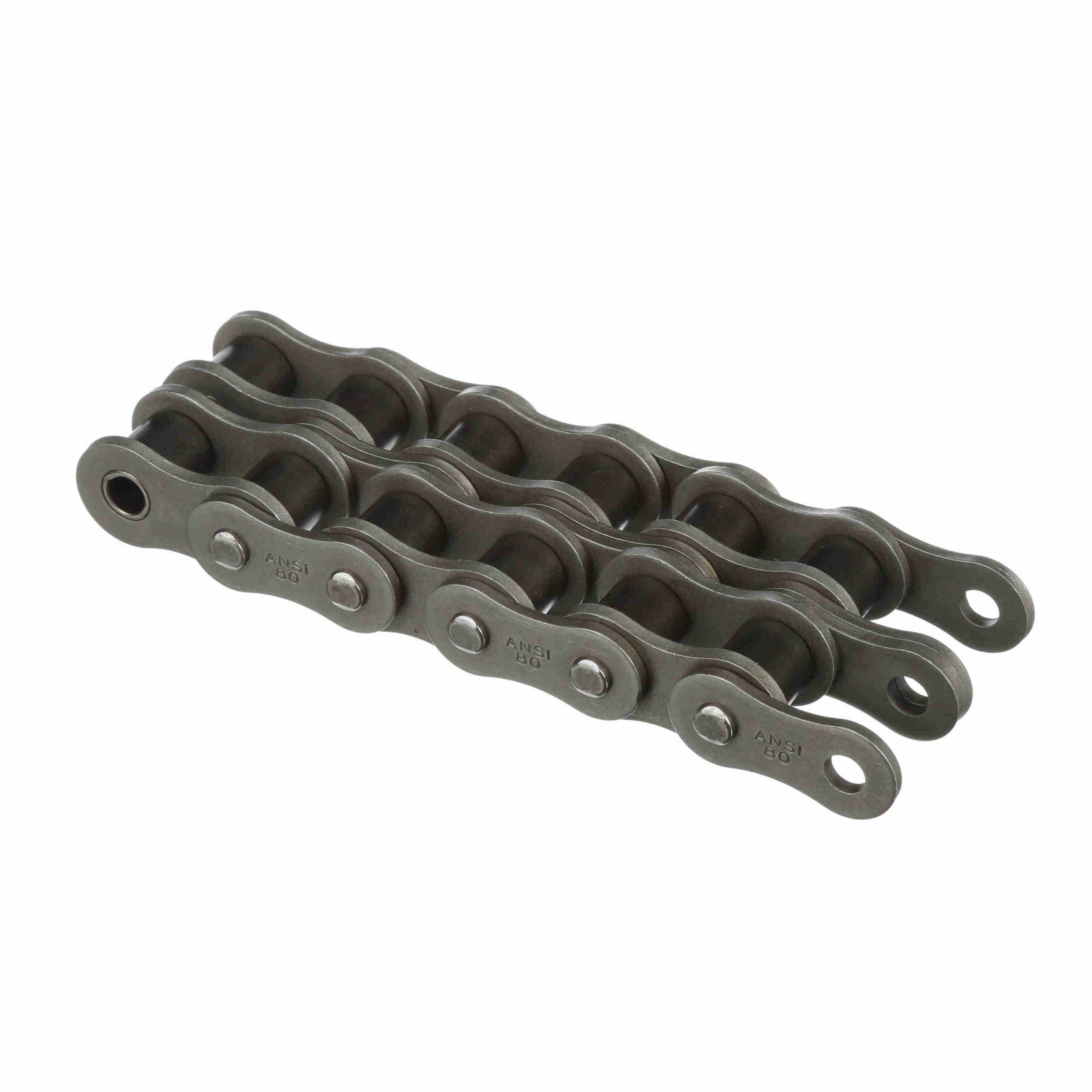

Browning Standard Riveted Roller Chain – J80-2 RIV 10 FT CH
$41.24
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 0.741 | Number of Strands/Width: | 2 |
|---|---|---|---|
| Roller Diameter (in): | 0.625 in | Plate Thickness: | 0.125 |
| Chain Construction: | Riveted | Chain Size: | 80 |
| Centerline to Opposite cotter Pin Side: | 0.637 | Pin Diameter (in): | 0.312 in |
| Roller Width (in): | 0.625 in | Material: | Steel |
| Average Ultimate Tensile Strength (psi): | 29, 000 | Inside Plate Height: | 0.934 |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Pitch (in): | 1 in | Coating: | Uncoated |
| Total Length: | 10 ft | Width Over Pins/Total Width: | 1.35 |
| Transverse Pitch: | 1.158 | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Pin Length - Riveted: | 2.449 |
| UPC: | 662289283828 | Weight: | 3.43 LB |
| Packaged Length: | 11.20 Inches | Packaged Width: | 11.50 Inches |
| Packaged Height: | 2.90 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | Thailand |
