- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 55 MM

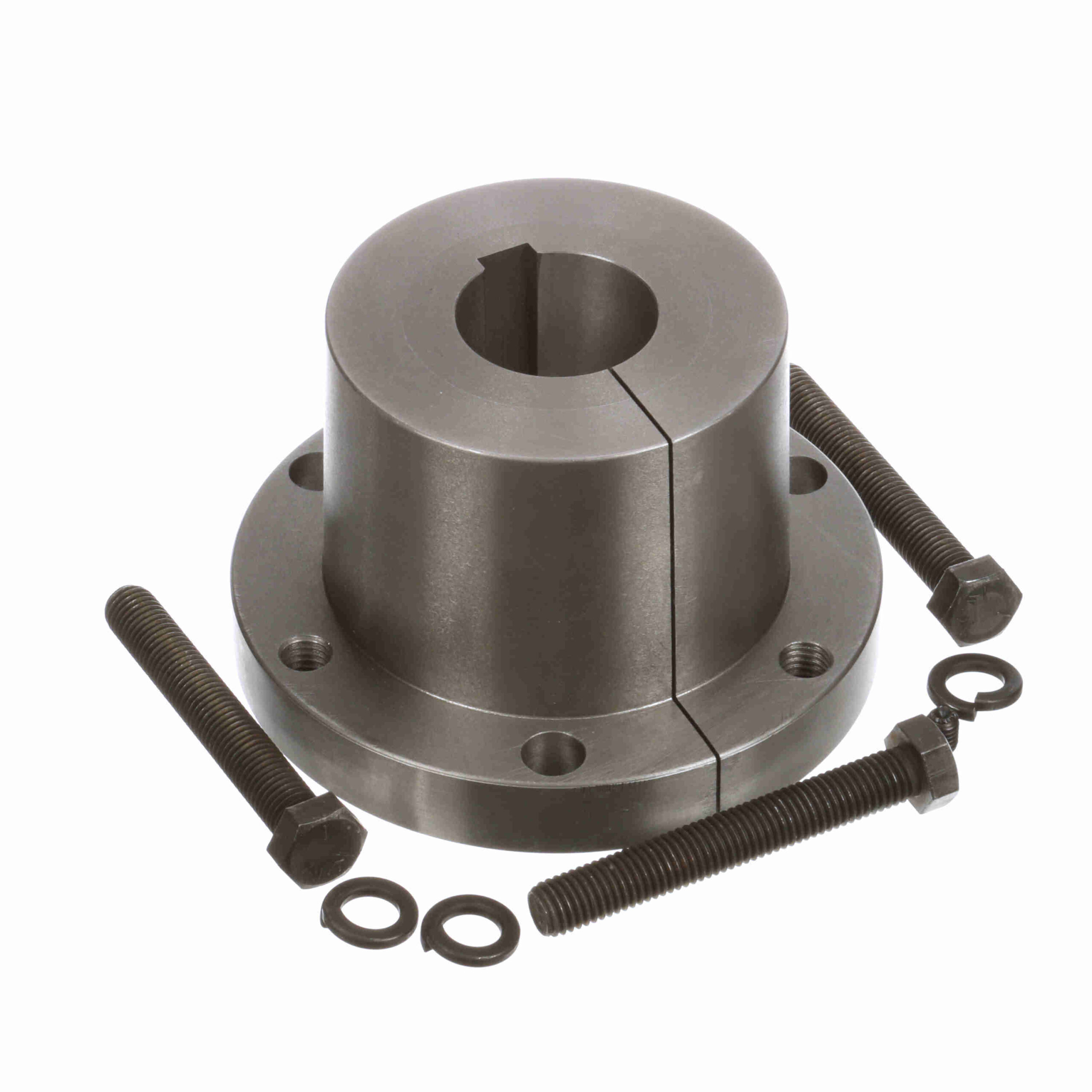

Browning Q-D Bushing – Metric Bore Type – J 55 MM
$1,082.04
Out of stock
Out of stock
| Cap Screws (No.): | 3 | Total Length (in): | 4.51 in |
|---|---|---|---|
| Keyway: | 16mm x 5mm | Length Through Bore (mm): | 114.554 mm |
| Outside Diameter (in): | 7.25 in | Bore Type: | Metric |
| Cap Screws (Size): | 5/8-11 x 4 1/2 | Wrench Torque (ft.-lbs.): | 135 |
| Compatible Bore Size [Max] (mm): | 55 mm | Outside Diameter (mm): | 184.15 mm |
| Torque Capacity (in-lb): | 45, 000 | Total Length (mm): | 114.554 mm |
| Product Type: | Q-D Bushing | Cap Screws (Bolt Circle): | 6.25 |
| Bushing Type: | J | Mounting Type: | Conventional |
| Bore Size (mm): | 55 mm | Flange Thickness: | 1 in |
| Material: | Gray Iron - G3004 | Barrel Diameter: | 5.1484 in |
| Barrel Length: | 3.51 in | UPC: | 662289615643 |
| Weight: | 26.36 LB | Packaged Length: | 7.88 Inches |
| Packaged Width: | 7.88 Inches | Packaged Height: | 4.75 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
