- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 4 7/16

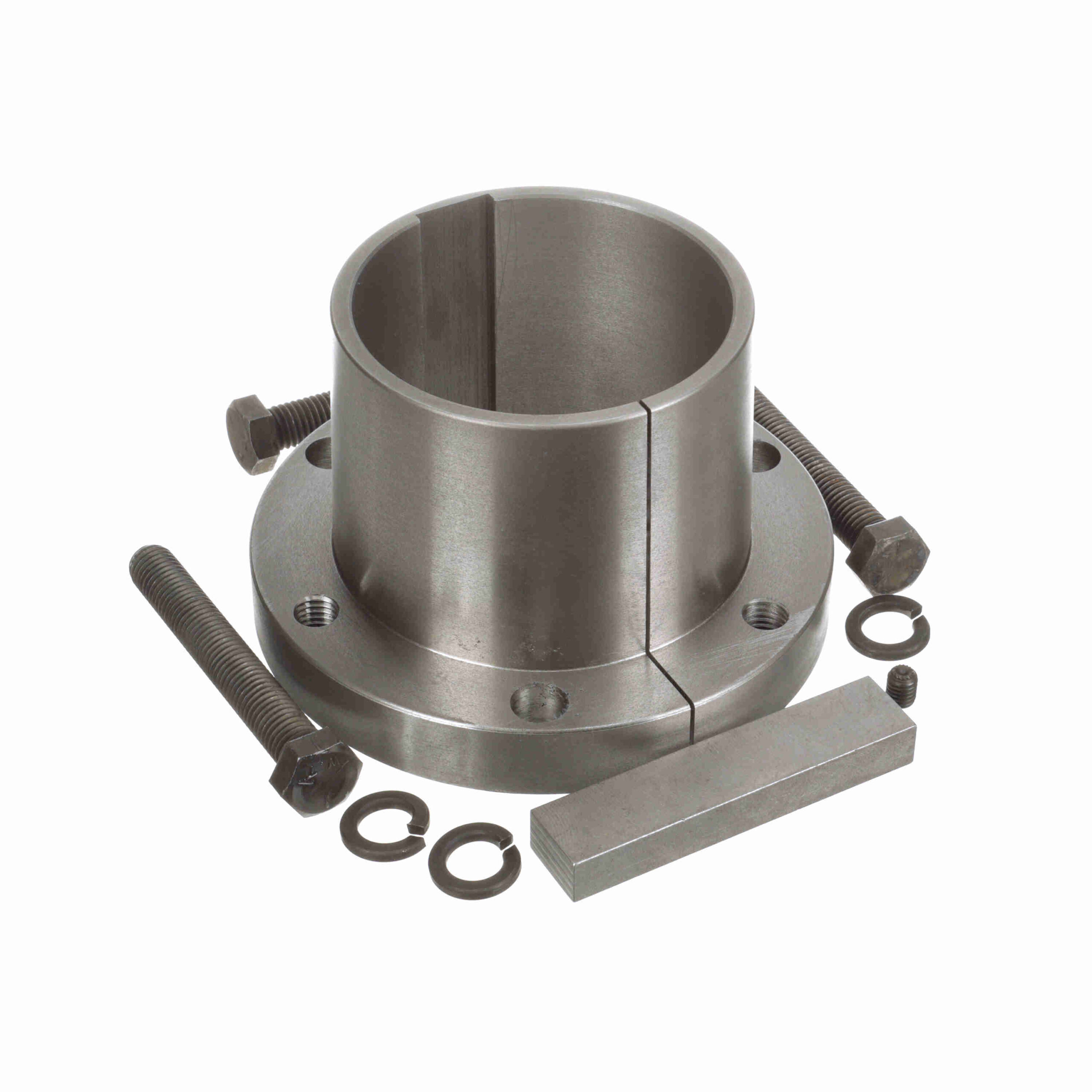

Browning Q-D Bushing – Inch Bore Type – J 4 7/16
Out of stock
| Product Type: | Q-D Bushing | Torque Capacity (in-lb): | 45, 000 |
|---|---|---|---|
| Total Length (in): | 4.51 in | Wrench Torque (ft.-lbs.): | 135 |
| Bore Type: | Inch | Bushing Type: | J |
| Mounting Type: | Conventional | Outside Diameter (in): | 7.25 in |
| Keyway: | 1 x 1/2 | Cap Screws (No.): | 3 |
| Cap Screws (Bolt Circle): | 6.25 | Compatible Bore Size [Max] (in): | 4.4375 in |
| Length Through Bore (in): | 4.51 in | Model Name: | QD-J_Bushing_Master |
| Cap Screws (Size): | 5/8-11 x 4 1/2 | Bore Size (in): | 4.4375 in |
| Barrel Diameter: | 5.1484 in | Barrel Length: | 3.51 in |
| Flange Thickness: | 1 in | Material: | Ductile Iron - Grade 65-45-12 |
| UPC: | 662289321902 | Weight: | 13.18 LB |
| Packaged Length: | 7.88 Inches | Packaged Width: | 7.88 Inches |
| Packaged Height: | 4.75 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
