- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 3 7/8

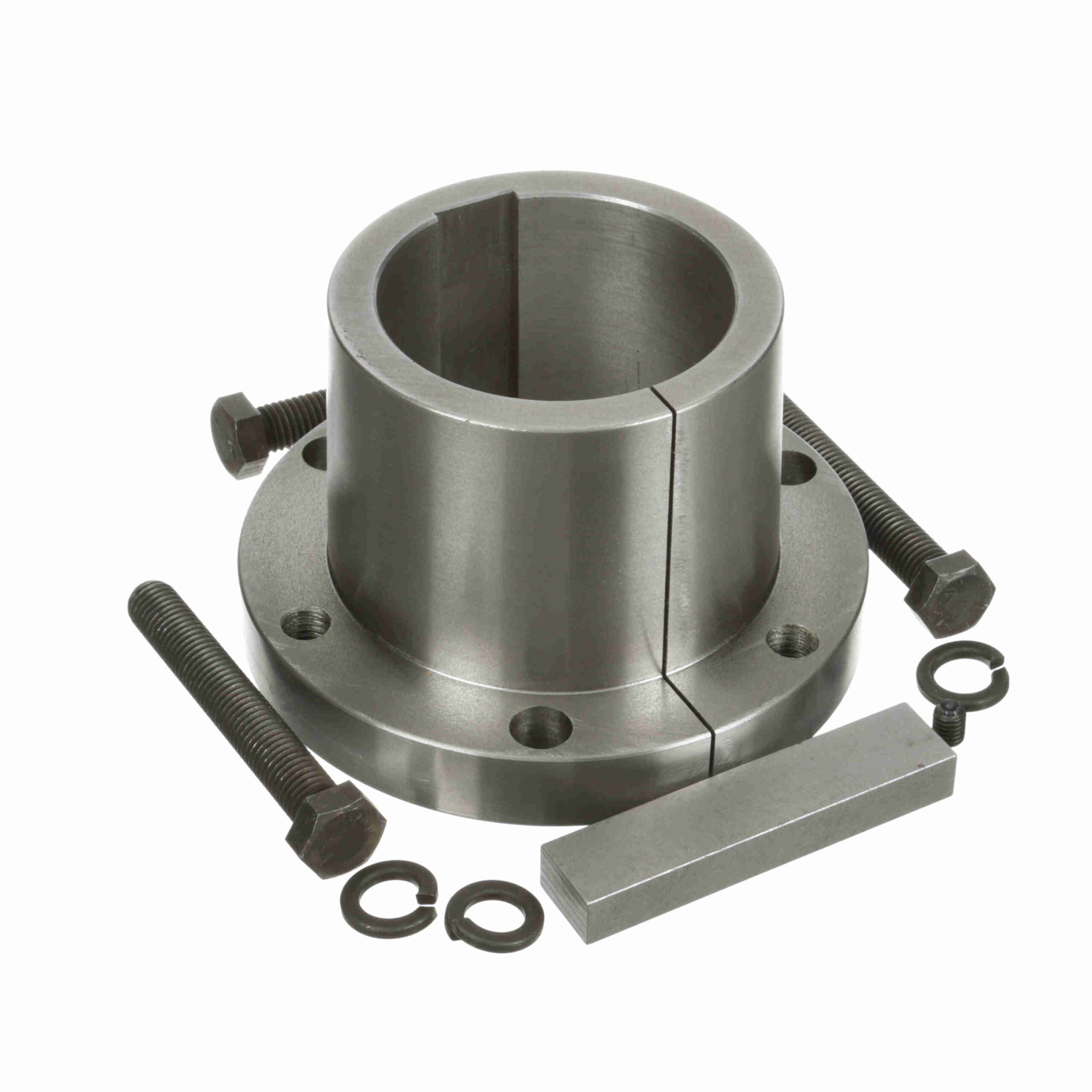

Browning Q-D Bushing – Inch Bore Type – J 3 7/8
Out of stock
| Total Length (in): | 4.51 in | Bore Type: | Inch |
|---|---|---|---|
| Bushing Type: | J | Cap Screws (Bolt Circle): | 6.25 |
| Outside Diameter (in): | 7.25 in | Keyway: | 1 x 1/2 |
| Length Through Bore (in): | 4.51 in | Compatible Bore Size [Max] (in): | 3.875 in |
| Mounting Type: | Conventional | Cap Screws (Size): | 5/8-11 x 4 1/2 |
| Model Name: | QD-J_Bushing_Master | Torque Capacity (in-lb): | 45, 000 |
| Wrench Torque (ft.-lbs.): | 135 | Cap Screws (No.): | 3 |
| Product Type: | Q-D Bushing | Bore Size (in): | 3.875 in |
| Material: | Gray Iron - G2999 | Flange Thickness: | 1 in |
| Barrel Length: | 3.51 in | Barrel Diameter: | 5.1484 in |
| UPC: | 662289390700 | Weight: | 17.44 LB |
| Packaged Length: | 7.88 Inches | Packaged Width: | 7.88 Inches |
| Packaged Height: | 4.75 Inches |
