- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- HT series clutch is designed for indexing operations. Not symmetrical so order according to the rotation required
- Created for applications requiring space restrictions

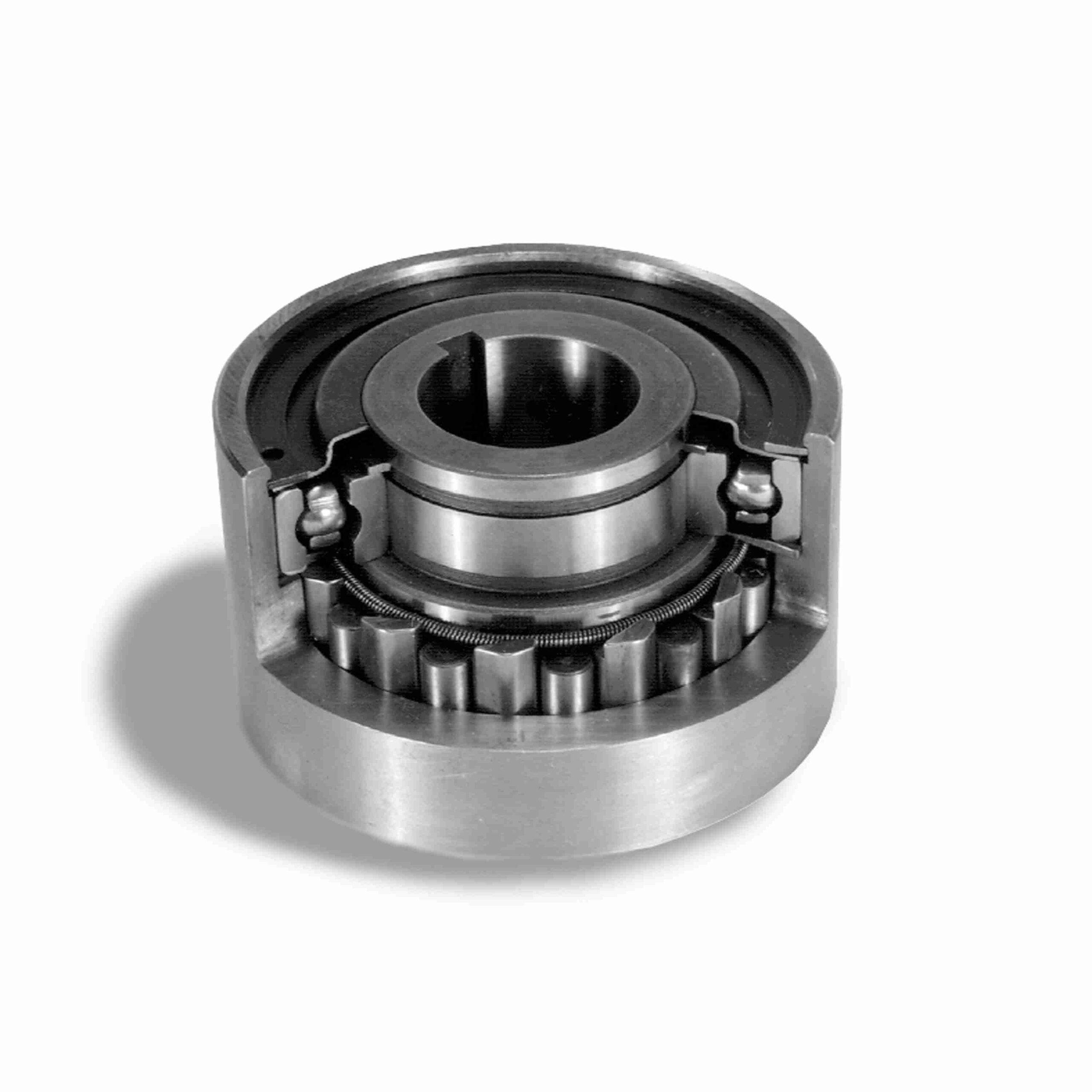

HT 20 CLUTCH 1 1/8 RH
Morse HT Series CAM Clutch – HT 20 CLUTCH 1 1/8 RH
$4,019.48
Out of stock
Out of stock
| Overall Diameter (in): | 3.5625 in | Tapped Hole Thread Size: | 5/16-24 |
|---|---|---|---|
| Type: | CAM Clutches | Overall Width (in): | 2.28125 in |
| Number of Tapped Mounting Holes: | 4 | Useable depth of thread: | .375 |
| Snap Ring Ball Brg (Unfurnished): | 304/205 | Configuration: | RH |
| Model: | HT20 | Lubrication Type: | Automatic Transmission Fluid - Must Be Added Before Use |
| Bearing Counterbore Diameter: | 2.0470/2.0475 | Nominal Overrunning Drag (ft-lb): | 3.4 |
| Mounting Bolt Circle Diameter: | 2.75 | Rated Torque Capacity (ft.-lbs.): | 154 |
| Add'l Bearing Support Requirement: | No | Backstopping Clutch: | Yes |
| Length Through Bore (in): | 1.6875 in | Overrunning Clutch: | Yes |
| Bore (Min) (in): | .4875/.4900 in | Product Type: | HT Series |
| Indexing Clutch: | Yes | Bore Size (in): | 1.125 in |
| UPC: | 662288383185 | Weight: | 5.00 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 3.75 Inches |
| Packaged Height: | 3.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Mexico |
