- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H80Q26

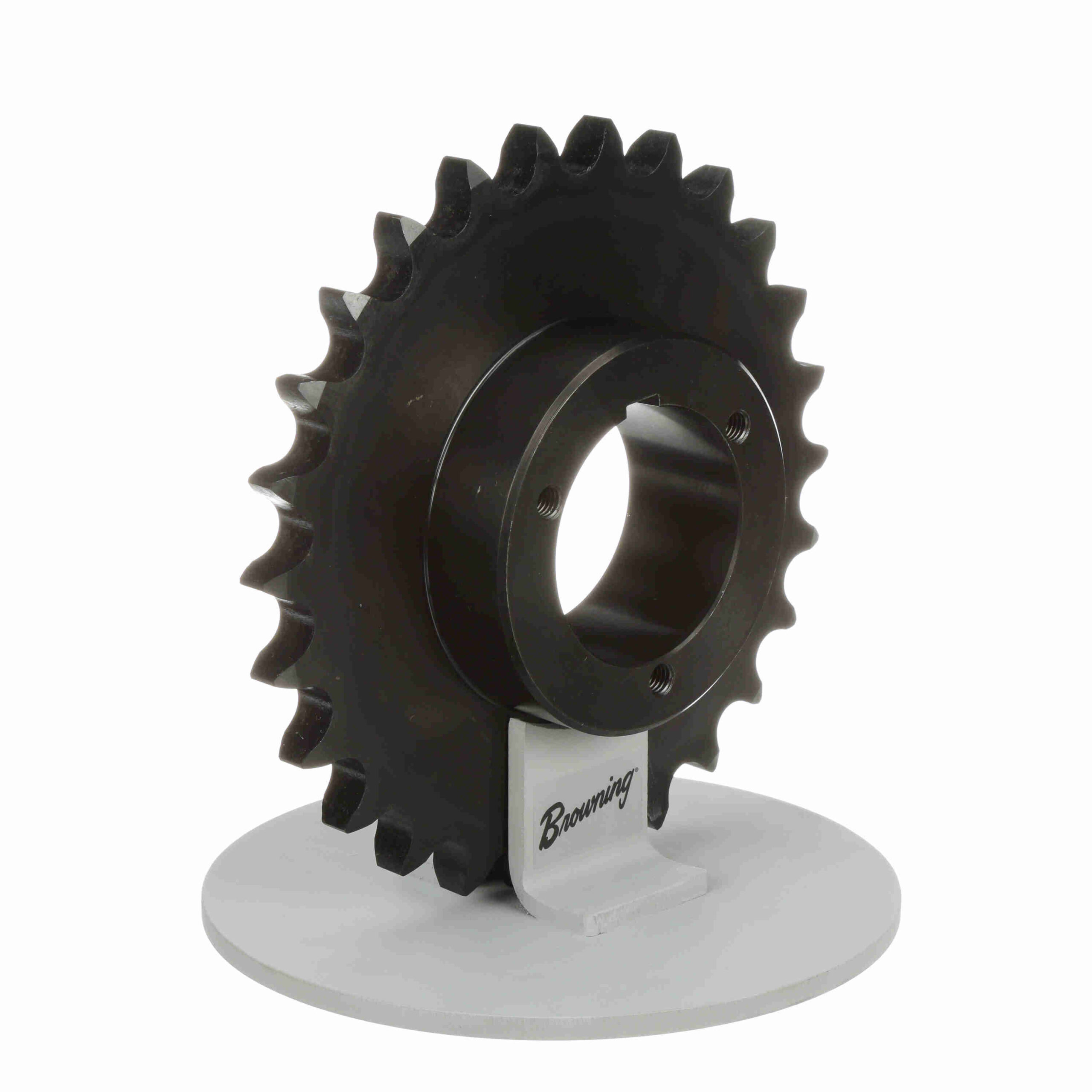

Browning Steel Bushed Bore Roller Chain Sprocket – H80Q26
$429.01
Availability: 3 in stock
Availability: 3 in stock
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 1 in |
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Bore (Max) (in): | 2.6875 in |
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 8.296 in |
| Number of teeth: | 26 | Outside Diameter (in): | 8.836 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.575 | UPC: | 662289276288 |
| Weight: | 10.65 LB | Packaged Length: | 9.90 Inches |
| Packaged Width: | 9.80 Inches | Packaged Height: | 2.00 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
