- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60Q20

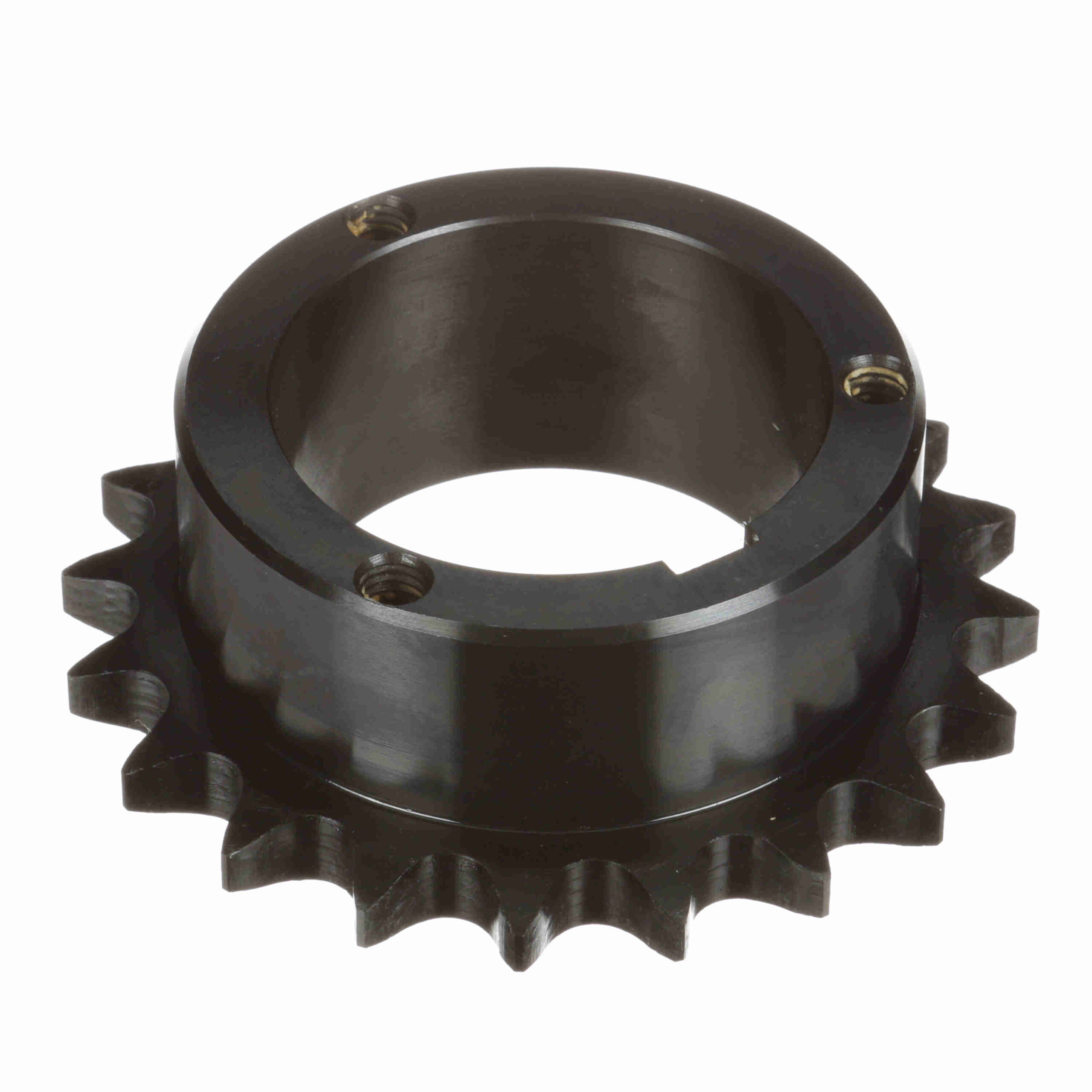

Browning Steel Bushed Bore Roller Chain Sprocket – H60Q20
$217.99
Availability: 9 in stock
Availability: 9 in stock
| Material: | Steel, Hardened Teeth | Number of teeth: | 20 |
|---|---|---|---|
| Pitch Diameter (in): | 4.794 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 2.6875 in | Bore (Min) (in): | 0.75 in |
| Chain Pitch (in): | 0.75 in | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Bushing Used: | Split Taper | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 5.185 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 0.459 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289125739 |
| Weight: | 3.43 LB | Packaged Length: | 6.10 Inches |
| Packaged Width: | 6.10 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
