- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H6013X 1 3/8

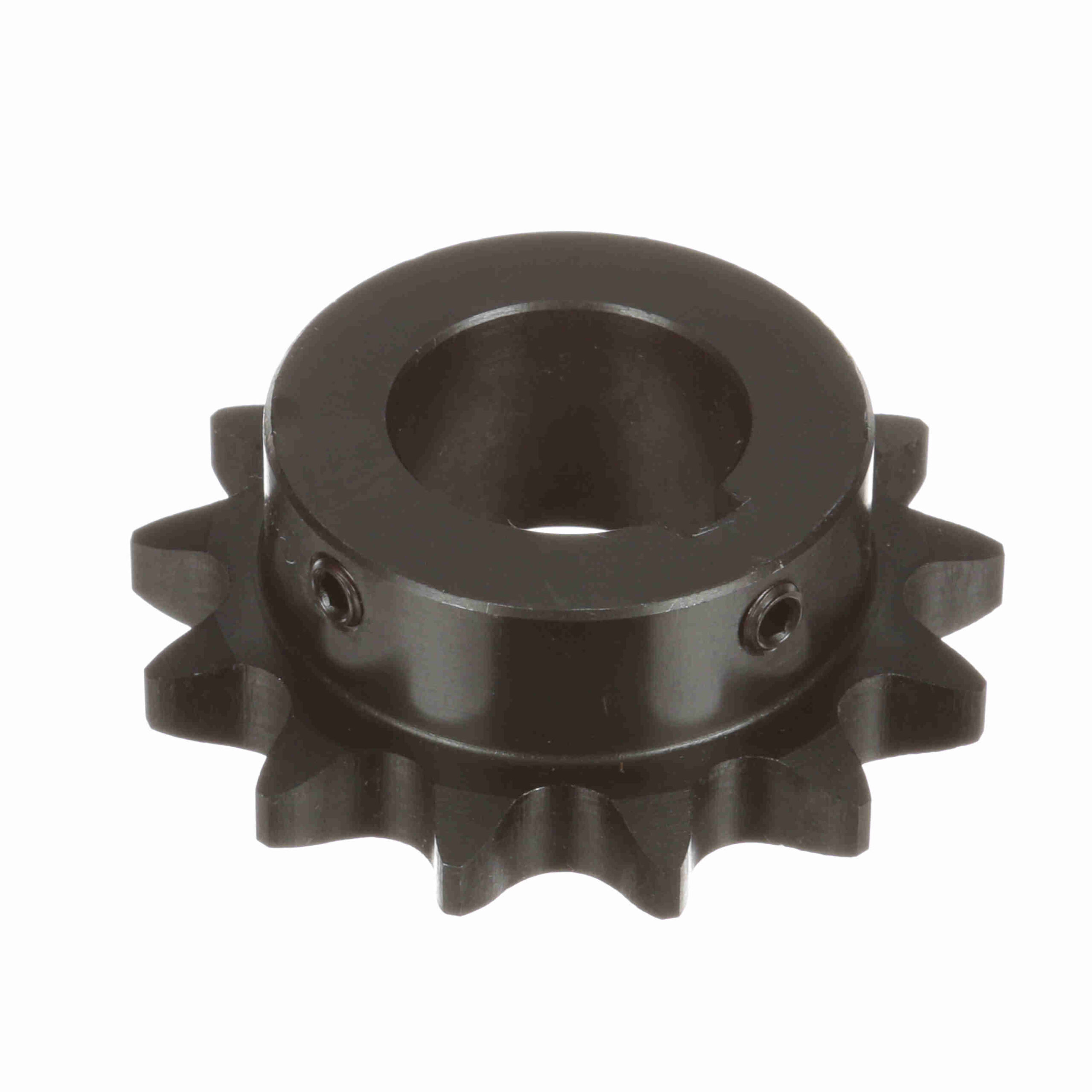

Browning Steel Finished Bore Roller Chain Sprocket – H6013X 1 3/8
Out of stock
| Product Type: | Finished Bore Roller Chain Sprocket | Print Revision Level: | C |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 0.75 in |
| Number of teeth: | 13 | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Pitch Diameter (in): | 3.134 in | Length Through Bore (in): | 1.25 in |
| Tooth Width (in): | 0.459 in | Outside Diameter (in): | 3.493 in |
| Bore Type: | Finished Bore | Hub Projection (in): | 0.796875 in |
| Hub Type: | Type B | Sprocket Material: | Steel, Hardened Teeth |
| Hub Diameter (in): | 2.34375 in | Overall Length (in): | 1.25 in |
| Number of Strands/Width: | 1 | Bore (in): | 1.375 in |
| Hardened Teeth: | With Hardened Teeth | Keyway Size: | 5/16 x 5/32 |
| Pitch Type: | Single | UPC: | 662289985494 |
| Weight: | 1.32 LB | Packaged Length: | 3.56 Inches |
| Packaged Width: | 3.56 Inches | Packaged Height: | 1.44 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
