- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H140R16

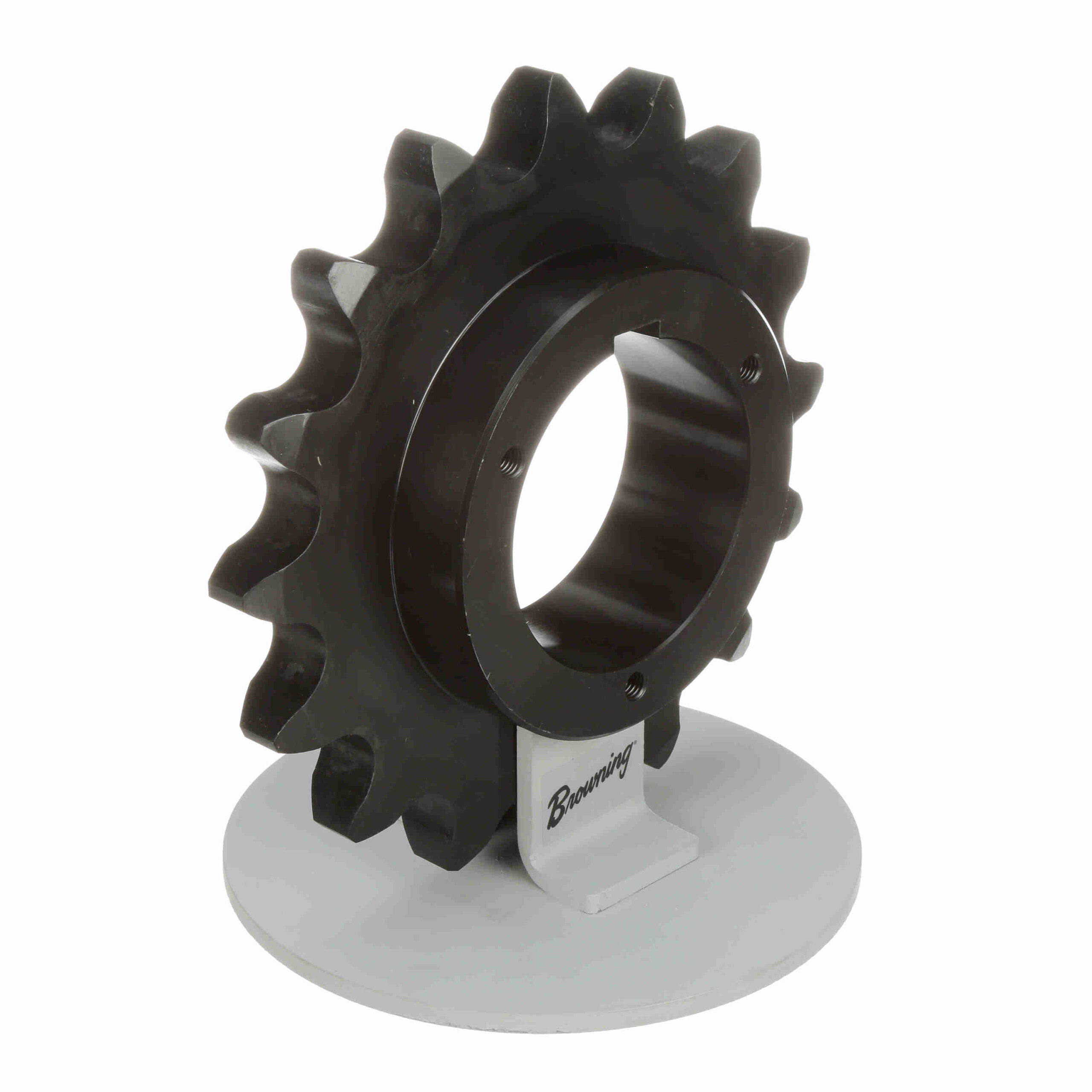

Browning Steel Bushed Bore Roller Chain Sprocket – H140R16
$910.81
Availability: 5 in stock
Availability: 5 in stock
| Bore (Max) (in): | 3.75 in | Bushing Used: | Split Taper |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Number of teeth: | 16 |
| Pitch Diameter (in): | 8.97 in | Chain Pitch (in): | 1.75 in |
| Bore (Min) (in): | 1.125 in | Chain Used: | No. 140, 1-3/4 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 9.848 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.924 |
| Number of Hubs: | 1 | UPC: | 662289196753 |
| Weight: | 16.67 LB | Packaged Length: | 10.70 Inches |
| Packaged Width: | 10.40 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
