- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H120R21

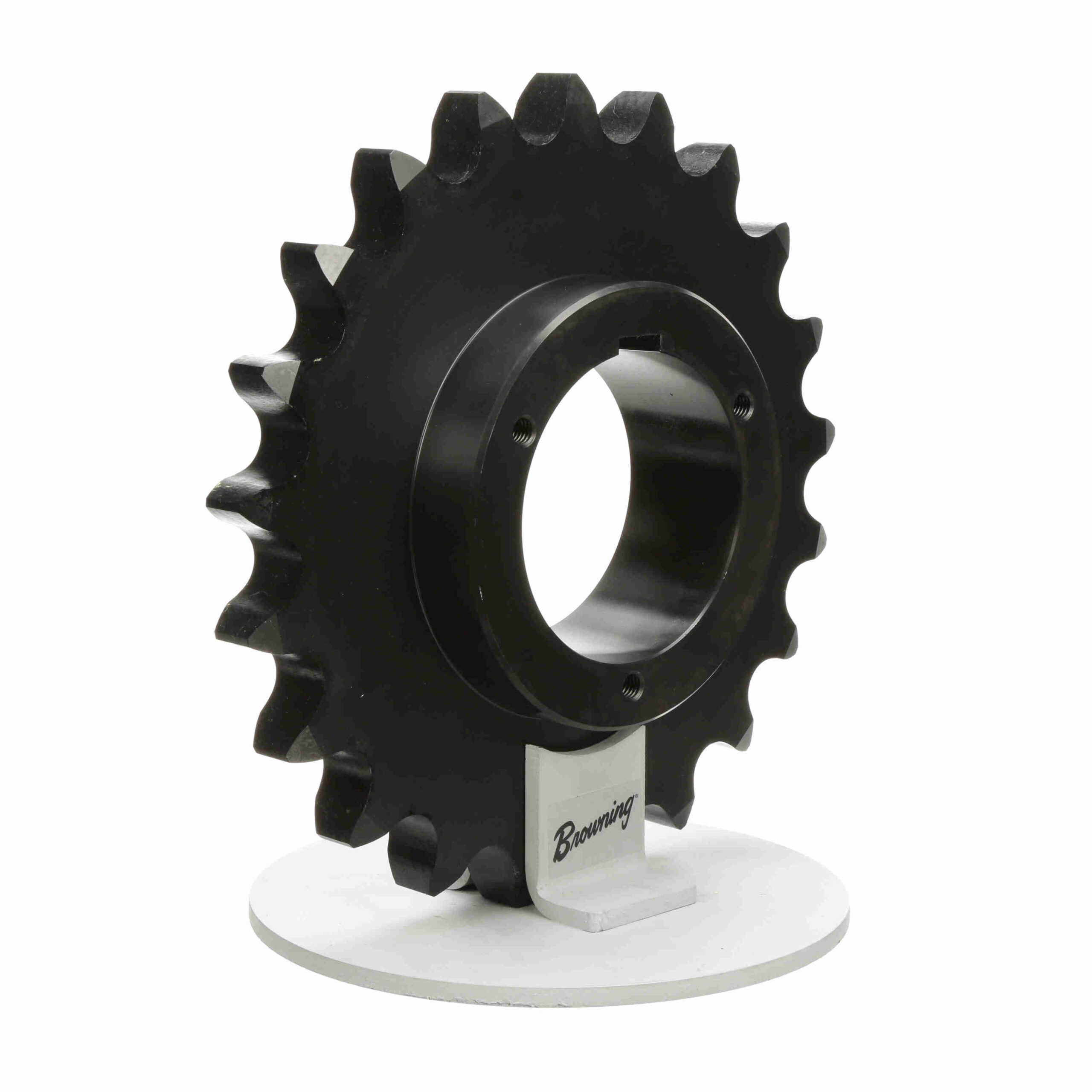

Browning Steel Bushed Bore Roller Chain Sprocket – H120R21
$912.65
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 3.75 in |
|---|---|---|---|
| Number of teeth: | 21 | Bushing Used: | Split Taper |
| Pitch Diameter (in): | 10.064 in | Chain Pitch (in): | 1.5 in |
| Bore (Min) (in): | 1.125 in | Material: | Steel, Hardened Teeth |
| Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain | Bore Type: | Bushed Bore |
| Overall Length (in): | 3.219375 in | Outside Diameter (in): | 10.852 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.924 |
| Number of Hubs: | 1 | UPC: | 662289256679 |
| Weight: | 20.83 LB | Packaged Length: | 10.90 Inches |
| Packaged Width: | 10.80 Inches | Packaged Height: | 1.90 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
