- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H120Q12

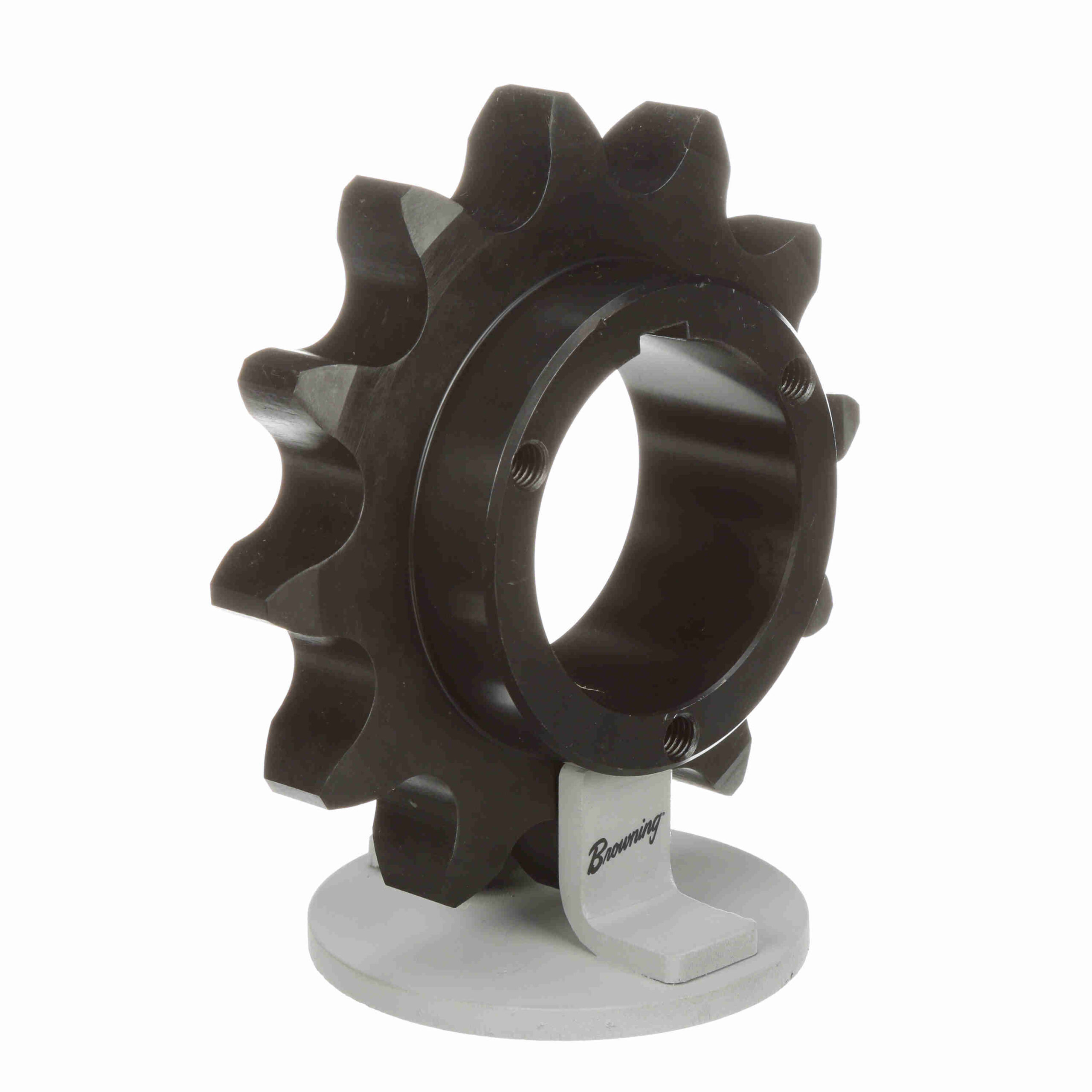

Browning Steel Bushed Bore Roller Chain Sprocket – H120Q12
$588.45
Out of stock
Out of stock
| Bore (Max) (in): | 2.6875 in | Chain Pitch (in): | 1.5 in |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.75 in | Pitch Diameter (in): | 5.796 in |
| Bushing Used: | Split Taper | Material: | Steel, Hardened Teeth |
| Number of teeth: | 12 | Outside Diameter (in): | 6.498 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.924 |
| Pitch Type: | Single | UPC: | 662289266500 |
| Weight: | 5.90 LB | Packaged Length: | 6.63 Inches |
| Packaged Width: | 6.63 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
