- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H120Q11

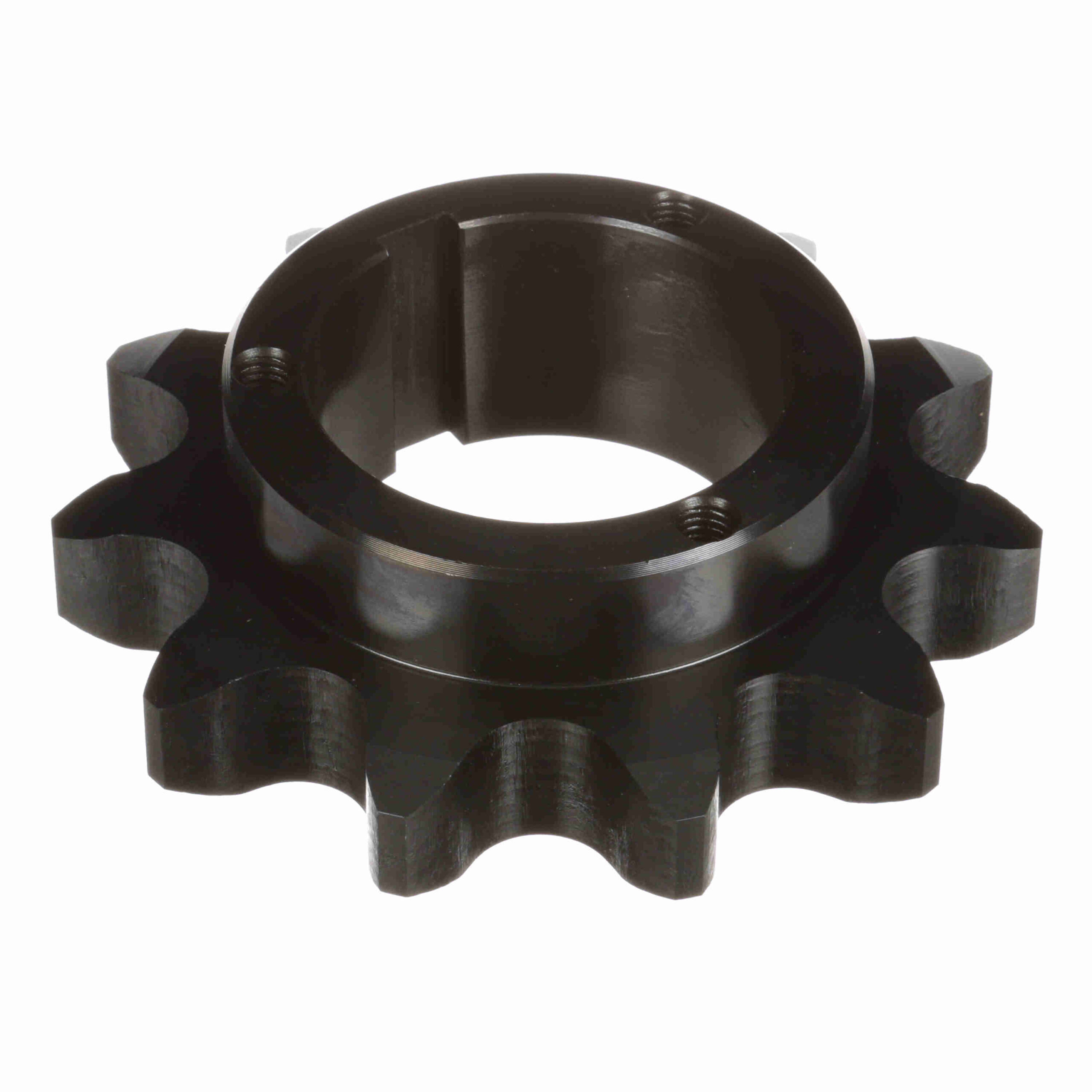

Browning Steel Bushed Bore Roller Chain Sprocket – H120Q11
$557.09
Out of stock
Out of stock
| Bore (Min) (in): | 0.75 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Number of teeth: | 11 | Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain |
| Chain Pitch (in): | 1.5 in | Bushing Used: | Split Taper |
| Pitch Diameter (in): | 5.324 in | Bore (Max) (in): | 2.6875 in |
| Material: | Steel, Hardened Teeth | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 6.009 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 0.924 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289136575 |
| Weight: | 4.97 LB | Packaged Length: | 6.20 Inches |
| Packaged Width: | 6.40 Inches | Packaged Height: | 2.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
