- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100R25

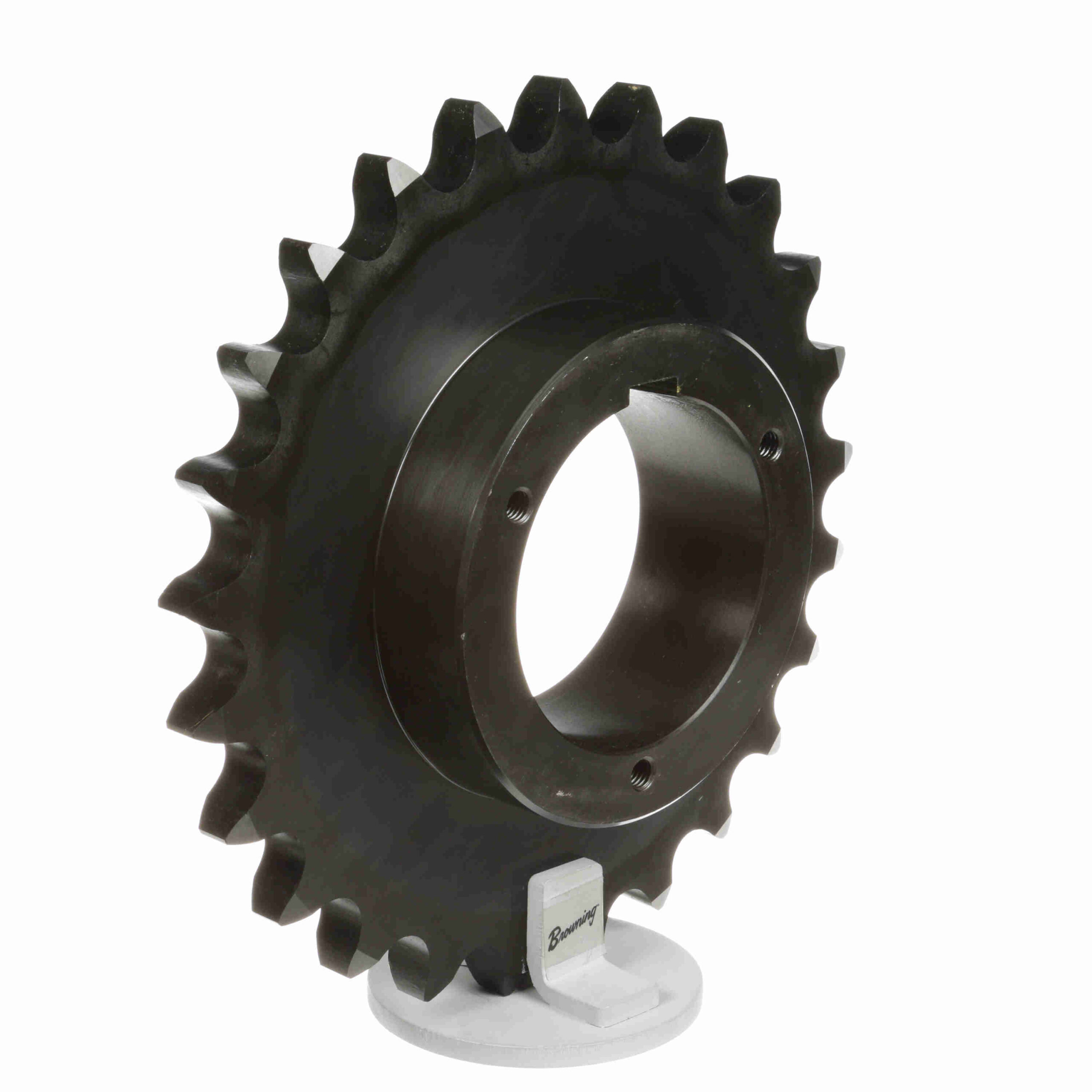

Browning Steel Bushed Bore Roller Chain Sprocket – H100R25
$668.40
Availability: 8 in stock
Availability: 8 in stock
| Pitch Diameter (in): | 9.973 in | Bushing Used: | Split Taper |
|---|---|---|---|
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Bore (Max) (in): | 3.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 1.25 in |
| Material: | Steel | Bore (Min) (in): | 1.125 in |
| Number of teeth: | 25 | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 10.645 in | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.692 in |
| Hub Diameter (in): | 5.375 in | Length Through Bore (in): | 2.875 in |
| Minimum Bore (in): | 1 | Maximum Bore (in): | 3.75 |
| Hub Projection (in): | 2.188 | Pitch Type: | Single |
| Hardened Teeth: | Yes | Width Across Tooth Sets: | 0.692 |
| Number of Hubs: | 1 | Overall Width (in): | 3.15625 in |
| UPC: | 662289770199 | Weight: | 17.41 LB |
| Packaged Length: | 10.80 Inches | Packaged Width: | 10.90 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
