- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100Q24

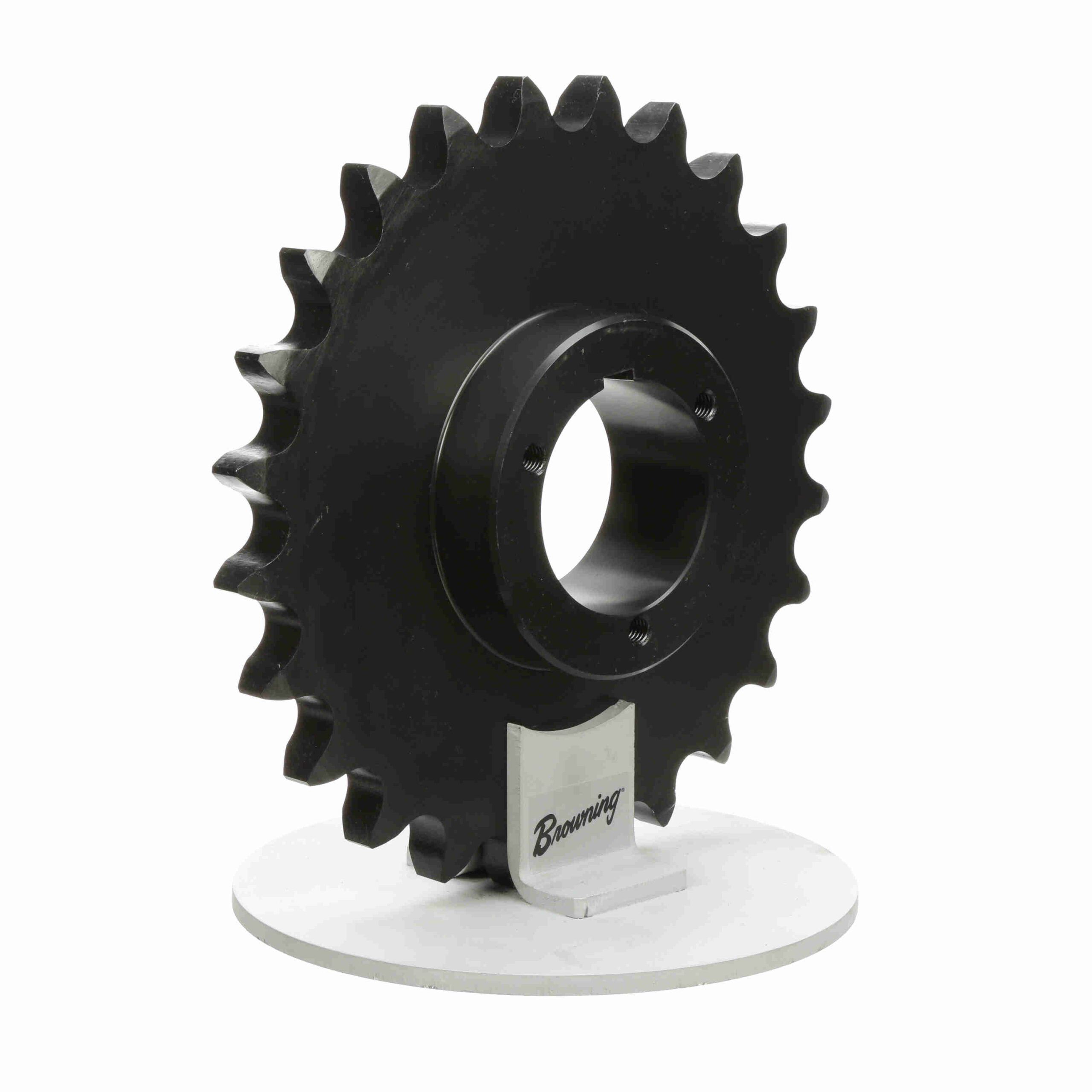

Browning Steel Bushed Bore Roller Chain Sprocket – H100Q24
$663.91
Out of stock
Out of stock
| Chain Pitch (in): | 1.25 in | Pitch Diameter (in): | 9.577 in |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Number of teeth: | 24 |
| Bore (Max) (in): | 2.6875 in | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
| Material: | Steel, Hardened Teeth | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 10.245 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.692 | UPC: | 662289296453 |
| Weight: | 15.17 LB | Packaged Length: | 11.00 Inches |
| Packaged Width: | 10.70 Inches | Packaged Height: | 2.30 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
