- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H100Q23

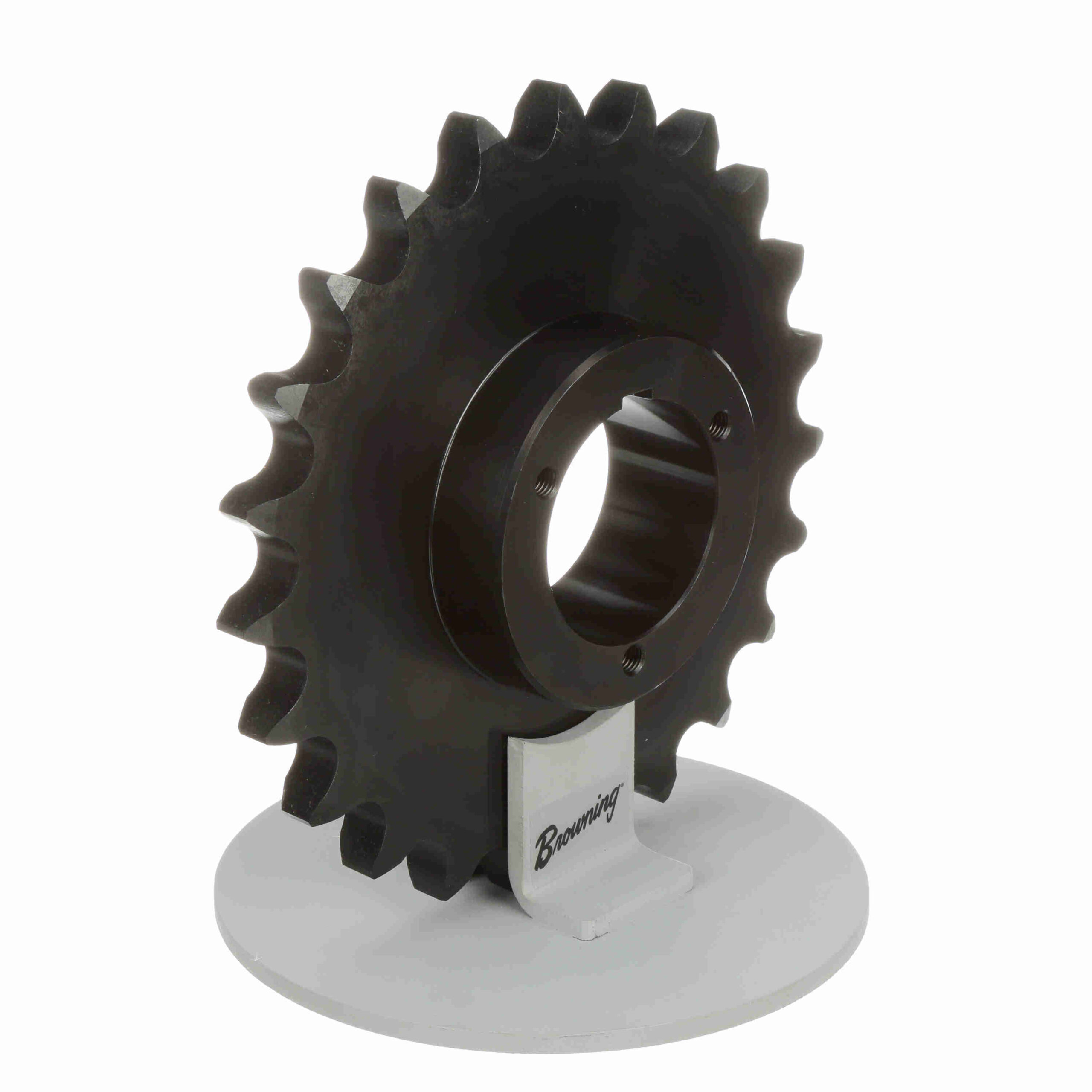

Browning Steel Bushed Bore Roller Chain Sprocket – H100Q23
$734.10
Out of stock
Out of stock
| Pitch Diameter (in): | 9.18 in | Number of teeth: | 23 |
|---|---|---|---|
| Bushing Used: | Split Taper | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Chain Pitch (in): | 1.25 in | Bore (Max) (in): | 2.6875 in |
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 0.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 9.844 in |
| Overall Length (in): | 2.828125 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.692 | UPC: | 662289166428 |
| Weight: | 14.04 LB | Packaged Length: | 10.00 Inches |
| Packaged Width: | 10.00 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
