- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 16 MM

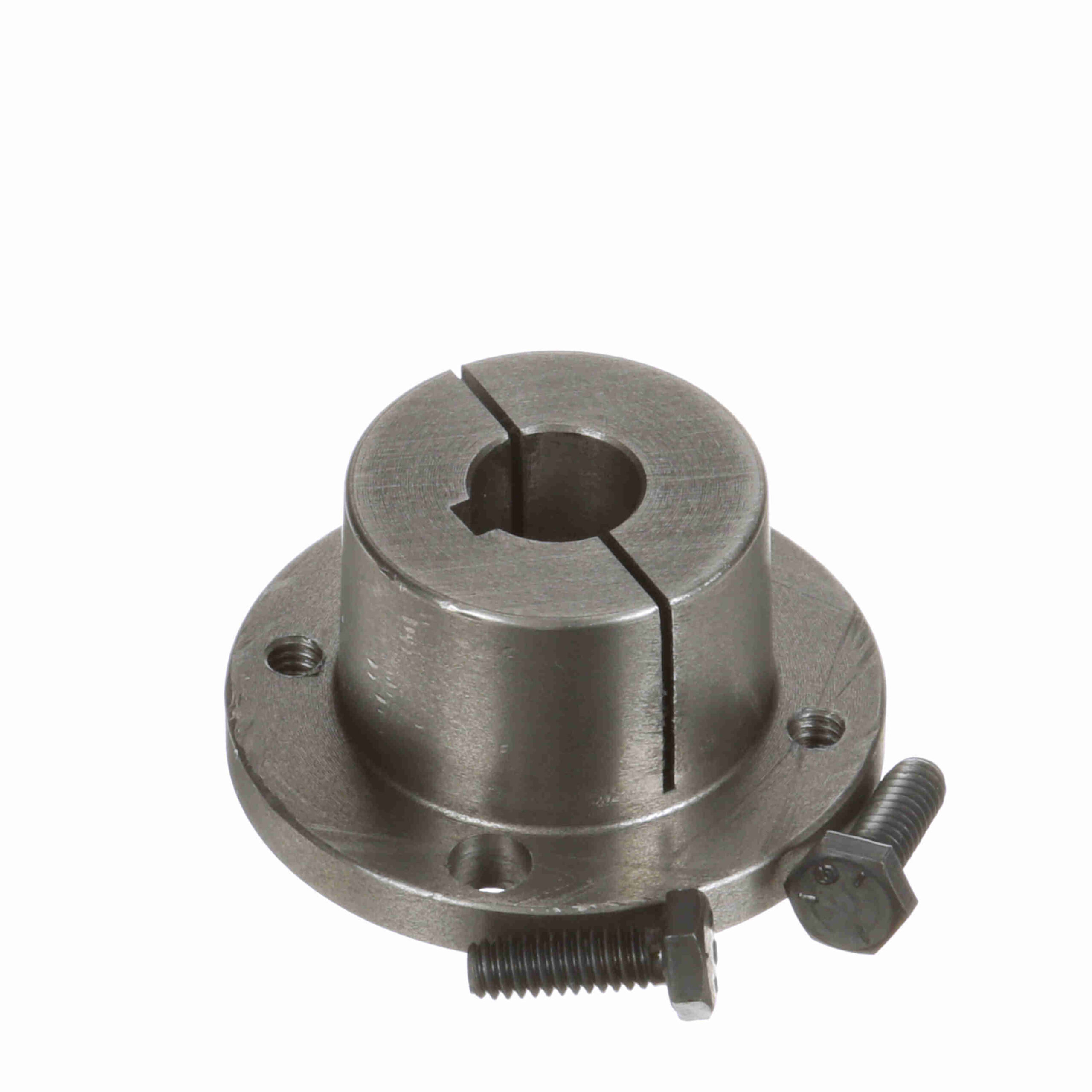

Browning Split Taper Bushing – Metric Bore Type – H 16 MM
$46.73
Out of stock
Out of stock
| Bushing Type: | H | Length Through Bore (mm): | 31.75 mm |
|---|---|---|---|
| Outside Diameter (in): | 2.5 in | Outside Diameter (mm): | 63.5 mm |
| Product Type: | Split Taper Bushing | Material: | Sintered Steel or Ductile Iron |
| Model Name: | H-Bushing_1_Master | Wrench Torque (in-lb): | 95 |
| Compatible Bore Size [Max] (mm): | 16 mm | Keyseat (mm): | 5 x 2.5 mm |
| Cap Screws (Size): | 1/4 x 3/4 | Bore Size (mm): | 16 mm |
| Total Length (in): | 1.25 in | Total Length (mm): | 31.75 mm |
| Bore Type: | Metric | Cap Screws (No.): | 2 |
| UPC: | 662289361526 | Weight: | 1.21 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.6 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
