- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 10 MM

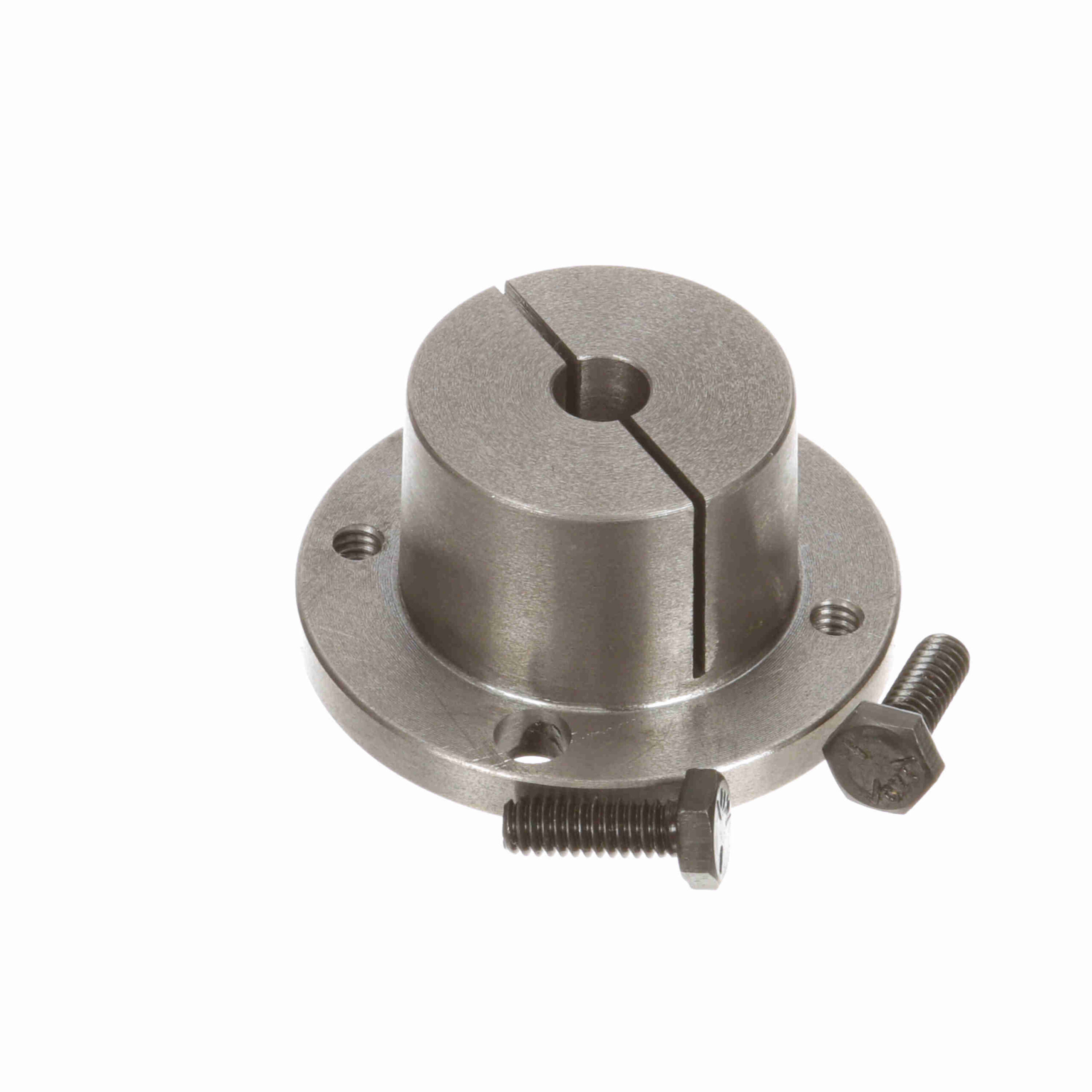

Browning Split Taper Bushing – Metric Bore Type – H 10 MM
$46.73
Out of stock
Out of stock
| Model Name: | H-Bushing_1A_Master | Product Type: | Split Taper Bushing |
|---|---|---|---|
| Outside Diameter (in): | 2.5 in | Material: | Sintered Steel or Ductile Iron |
| Bushing Type: | H | Wrench Torque (in-lb): | 95 |
| Total Length (mm): | 31.75 mm | Bore Size (mm): | 10 mm |
| Outside Diameter (mm): | 63.5 mm | Total Length (in): | 1.25 in |
| Compatible Bore Size [Max] (mm): | 10 mm | Cap Screws (Size): | 1/4 x 3/4 |
| Length Through Bore (mm): | 31.75 mm | Bore Type: | Metric |
| Cap Screws (No.): | 2 | Keyseat: | No Keyway |
| UPC: | 662289351541 | Weight: | 0.85 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.6 Inches |
| Packaged Height: | 1.4 Inches |
