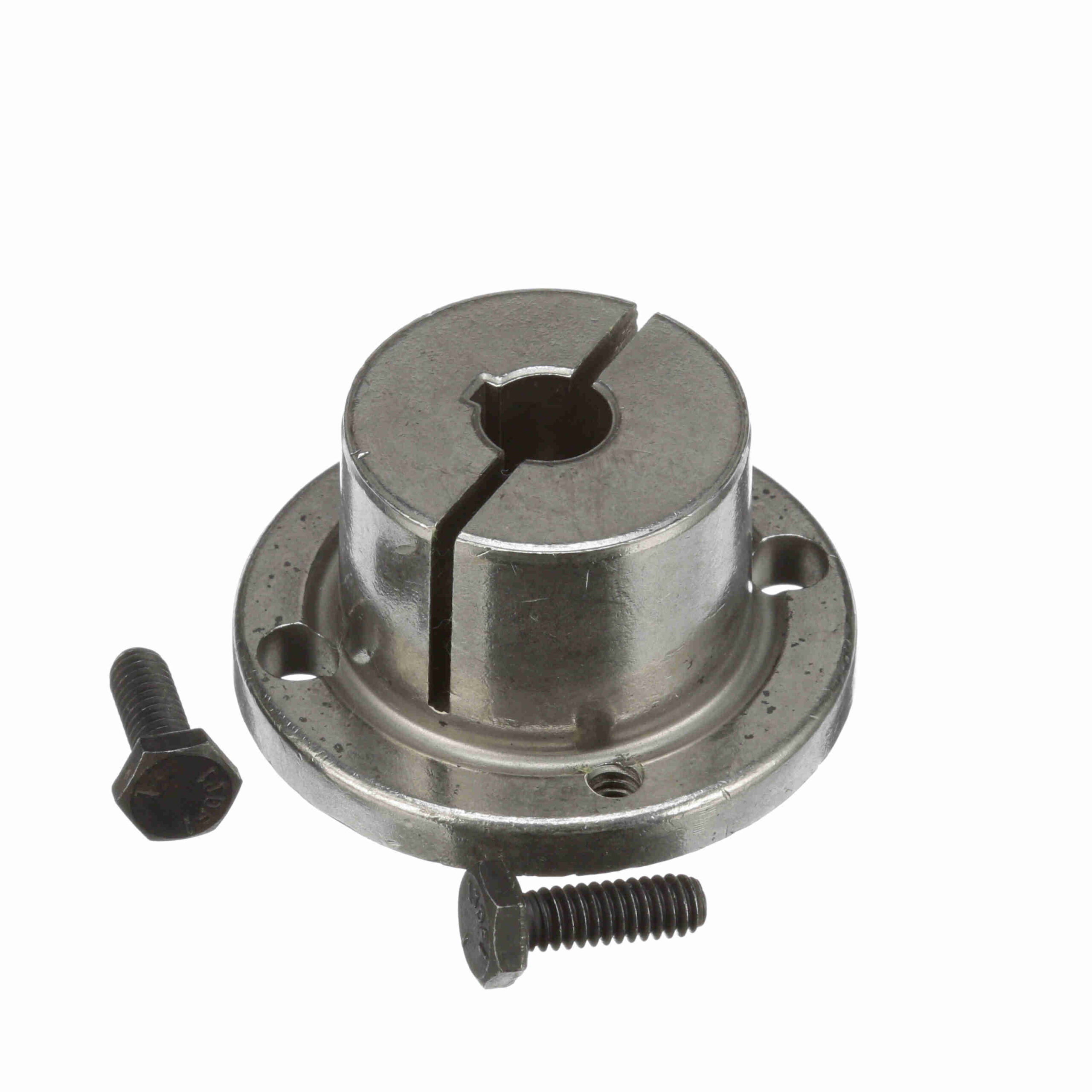

H 1/2

Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.

Compatible Bore Size [Max] (in):	0.5 in	Outside Diameter (in):	2.5 in
Model Name:	H-Bushing_1_Master	Wrench Torque (in-lb):	95
Cap Screws (Size):	1/4 x 3/4	Bushing Type:	H
Total Length (in):	1.25 in	Length Through Bore (in):	1.25 in
Product Type:	Split Taper Bushing	Keyseat:	1/8 x 1/16
Material:	Sintered Steel or Ductile Iron	Bore Size (in):	0.5 in
Bore Type:	Inch	Cap Screws (No.):	2
UPC:	662289168989	Weight:	0.78 LB
Packaged Length:	2.7 Inches	Packaged Width:	2.7 Inches
Packaged Height:	1.4 Inches	HTC:	8483.90.8080
Country of Origin:	United States of America
