- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
GR 52 SS

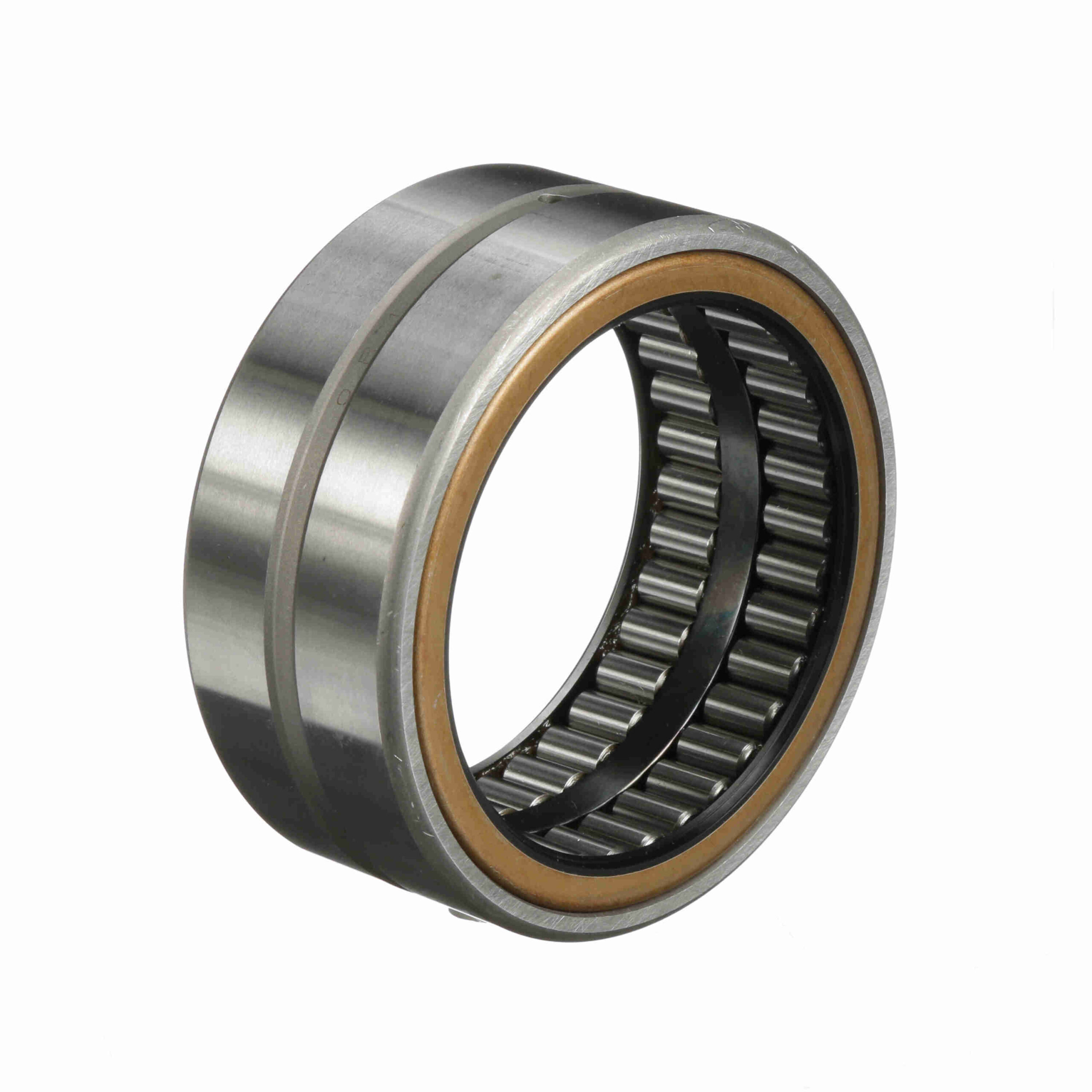

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 52 SS
$233.36
Availability: 8 in stock
Availability: 8 in stock
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 63, 800 lb |
| Full Complement/Caged: | Full Complement | Speed [Max] Grease (RPM): | 1, 180 rpm |
| Dynamic Load Rating (lb): | 20, 050 lb | Sealed: | Sealed - Both Sides |
| Duplexing: | No | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 42 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166063092 |
| Weight: | 2.36 LB | Packaged Length: | 5.1 Inches |
| Packaged Width: | 4.8 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
