- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned in
GR 32 S

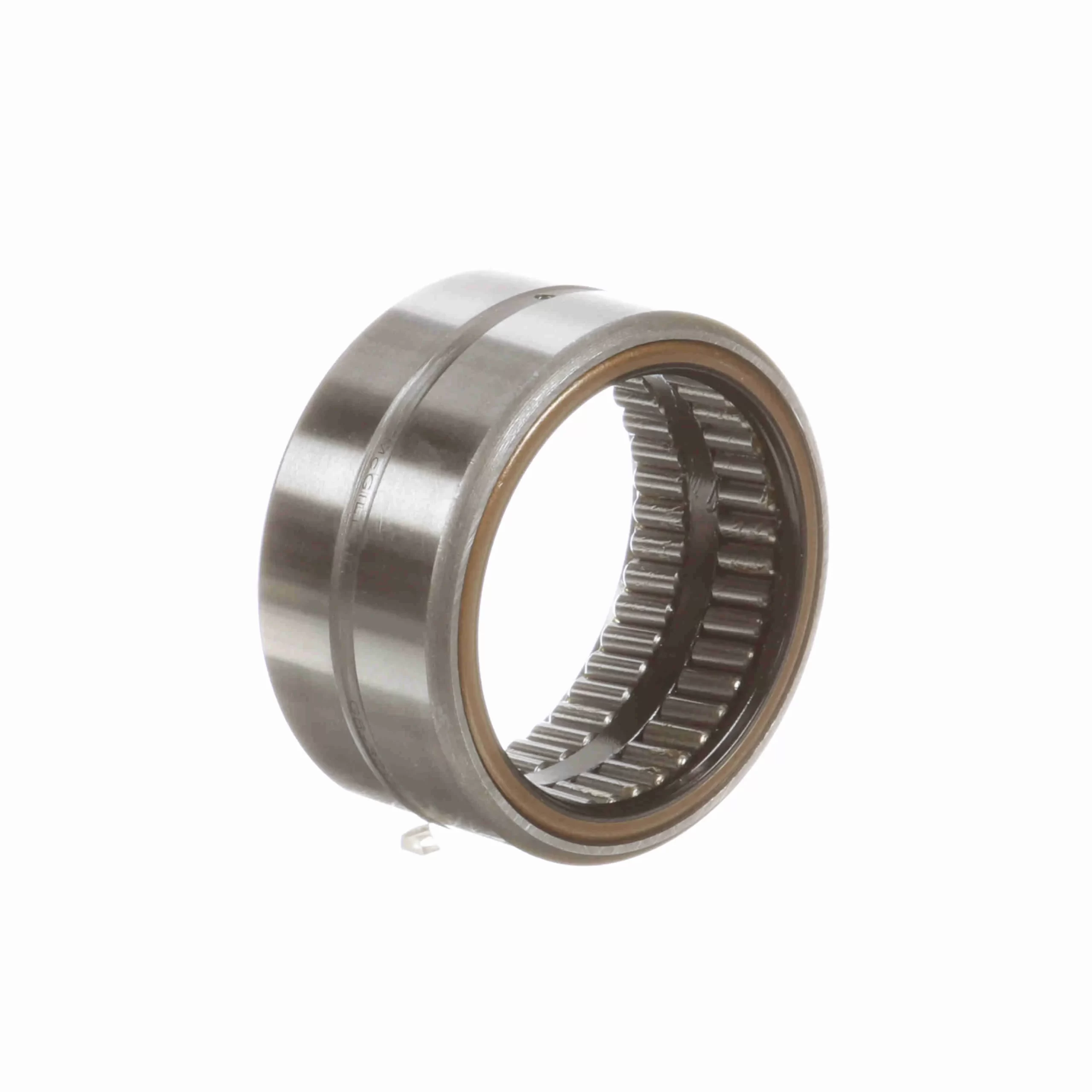

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 32 S
$98.49
Availability: 2 in stock
Availability: 2 in stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Platform: | Guiderol Bearing | Sealed: | Sealed - One Side |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 26, 700 lb |
| Speed [Max] Grease (RPM): | 1, 900 rpm | Dynamic Load Rating (lb): | 8, 000 lb |
| Duplexing: | No | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 25 |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166062422 |
| Weight: | 0.53 LB | Packaged Length: | 2.62 Inches |
| Packaged Width: | 1.31 Inches | Packaged Height: | 2.62 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
