- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
GR 28

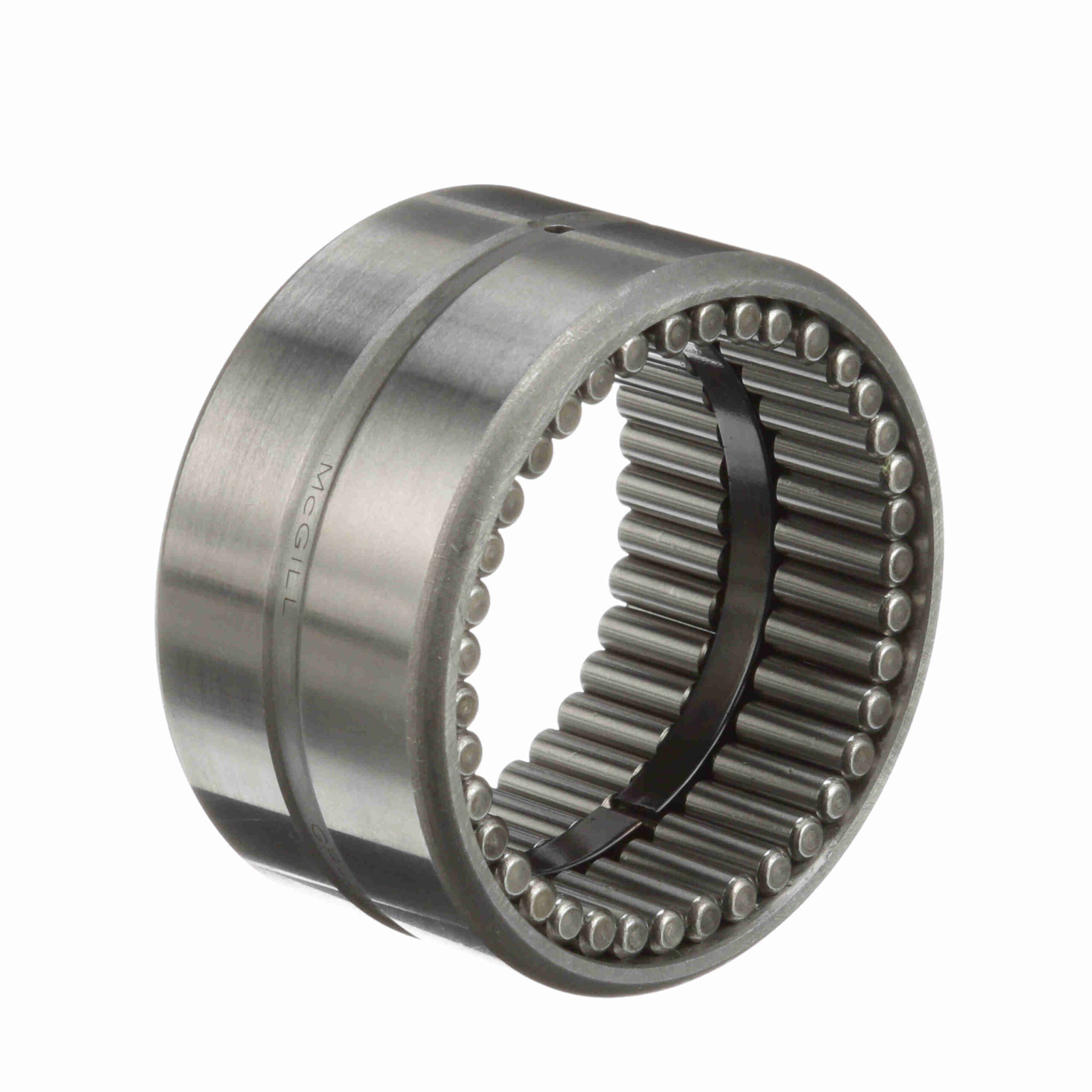

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – GR 28
$53.24
Out of stock
Out of stock
| Series: | Standard | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Speed [Max] Grease (RPM): | 1, 700 rpm | Dynamic Load Rating (lb): | 9, 850 lb |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Speed [Max] Oil (RPM): | 3, 400 rpm |
| Sealed: | None | Static Load Rating (lb): | 32, 100 lb |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 23, MI 24 | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166062194 | Weight: | 0.53 LB |
| Packaged Length: | 2.6 Inches | Packaged Width: | 2.4 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
