- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
GR 26 SS

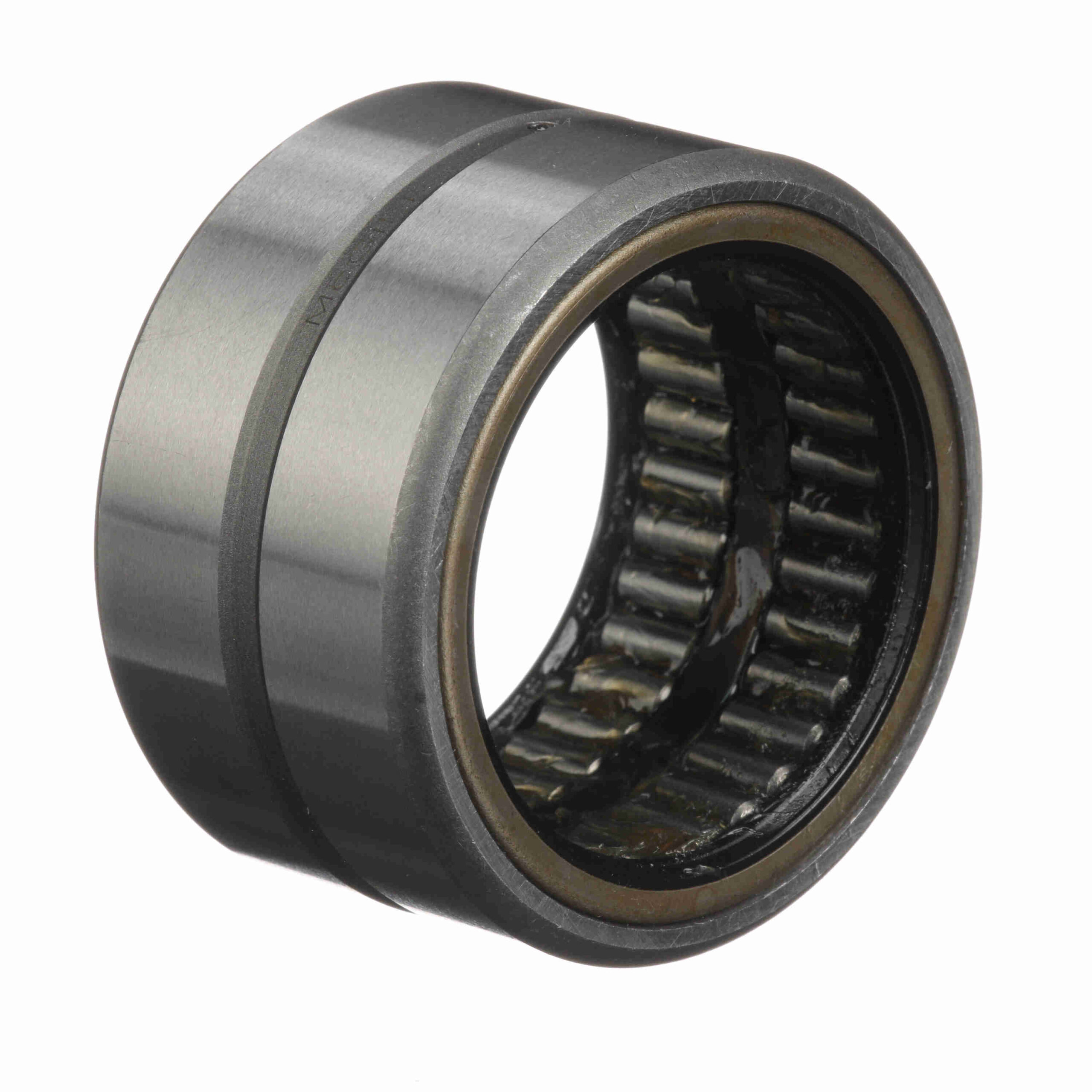

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 26 SS
$82.98
Availability: 22 in stock
Availability: 22 in stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Dynamic Load Rating (lb): | 7, 500 lb | Static Load Rating (lb): | 21, 700 lb |
| Speed [Max] Oil (RPM): | 2, 350 rpm | Sealed: | Sealed - Both Sides |
| Speed [Max] Grease (RPM): | 1, 200 rpm | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 21 | Precision Rating: | RBEC-1 |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166062149 |
| Weight: | 0.49 LB | Packaged Length: | 2.6 Inches |
| Packaged Width: | 2.3 Inches | Packaged Height: | 1.6 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
