- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
GR 24

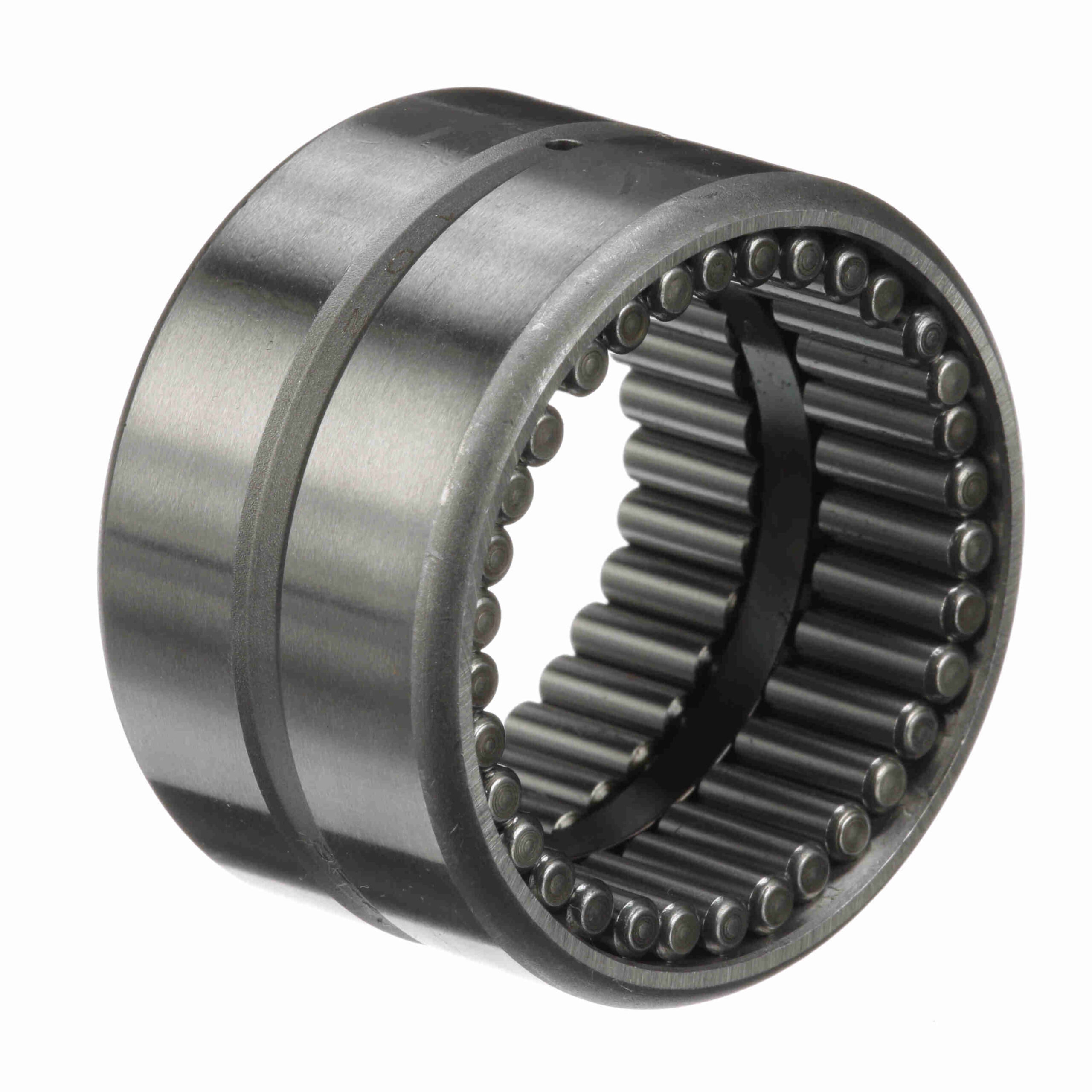

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – GR 24
$57.78
Availability: 8 in stock
Availability: 8 in stock
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Full Complement/Caged: | Full Complement | Speed [Max] Oil (RPM): | 4, 000 rpm |
| Speed [Max] Grease (RPM): | 2, 000 rpm | Duplexing: | No |
| Dynamic Load Rating (lb): | 9, 150 lb | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 27, 800 lb | Sealed: | None |
| Flanges: | No flange | Related Inner Ring: | MI 19 |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166062002 |
| Weight: | 0.47 LB | Packaged Length: | 2.31 Inches |
| Packaged Width: | 1.56 Inches | Packaged Height: | 2.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
