- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Narrow width configuration
GR 22 N

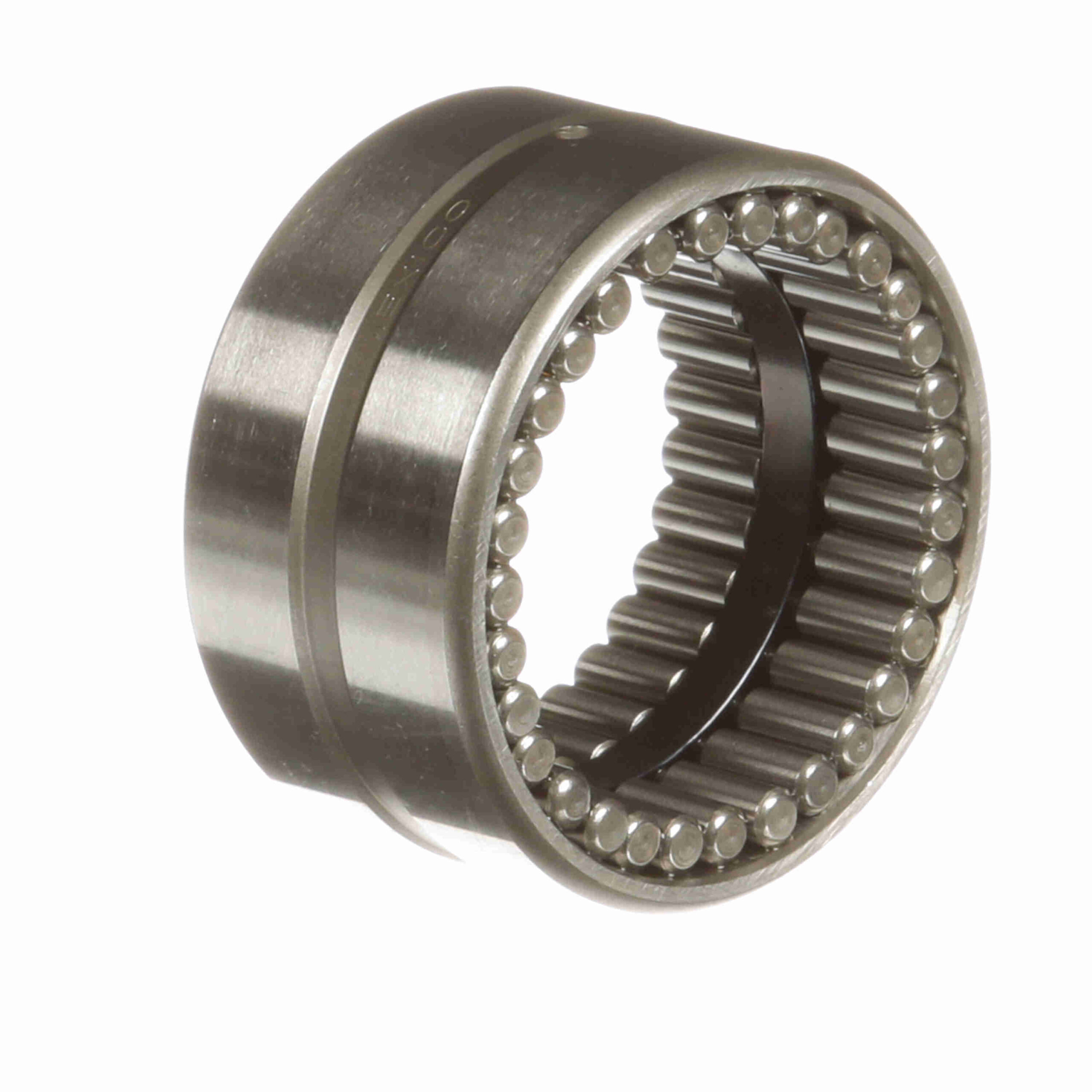

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – GR 22 N
$251.68
Out of stock
Out of stock
| Includes Inner Ring: | No | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Misalignment: | No |
| Speed [Max] Grease (RPM): | 2, 200 rpm | Dynamic Load Rating (lb): | 7, 100 lb |
| Sealed: | None | Speed [Max] Oil (RPM): | 4, 400 rpm |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Duplexing: | No | Static Load Rating (lb): | 18, 600 lb |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Related Inner Ring: | MI 18 N | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Enclosure: | Open | Separable: | Nonseparable |
| Retainer: | No | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166061982 | Weight: | 0.71 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.9 Inches |
| Packaged Height: | 1.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
