- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
GR 20

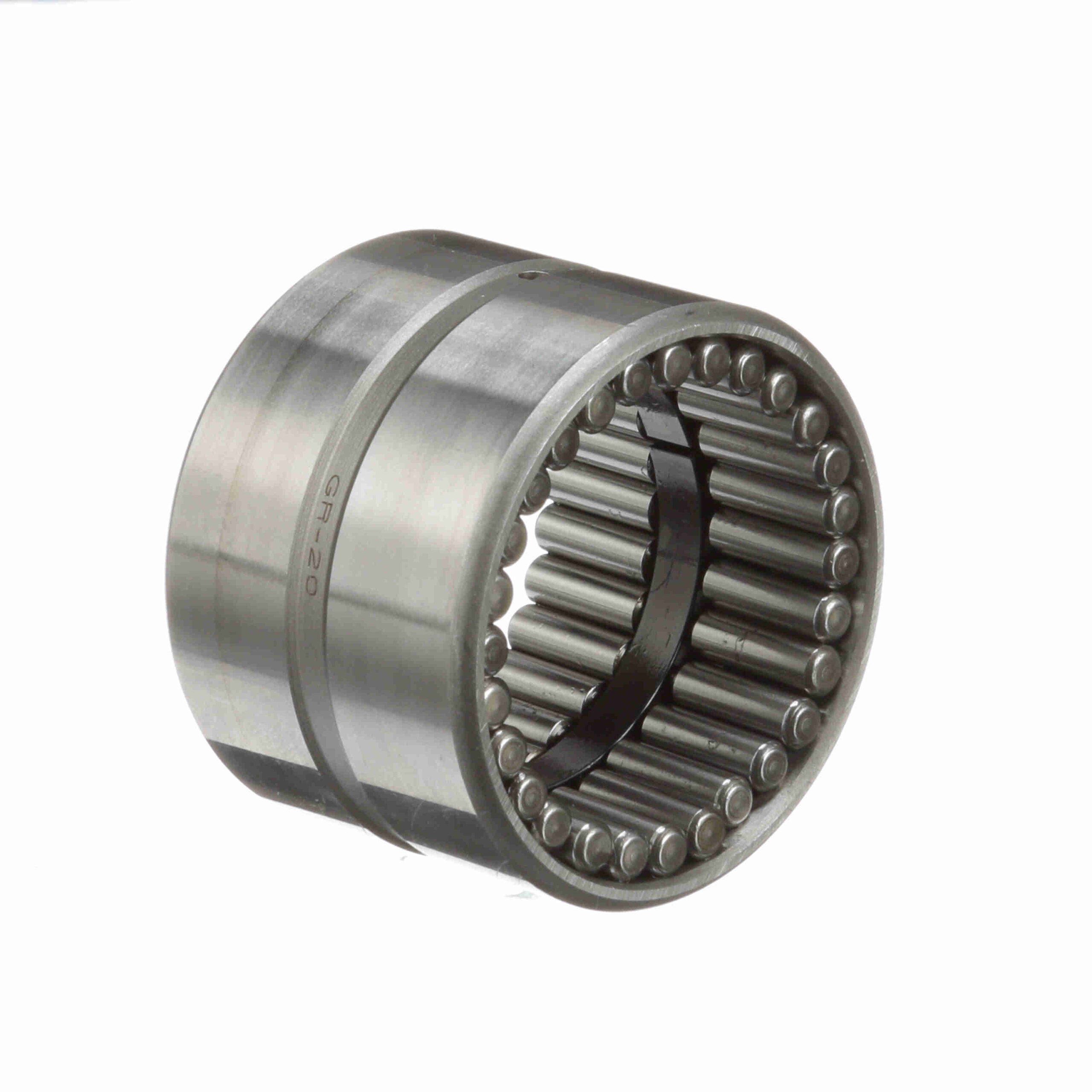

McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) – GR 20
$47.84
Availability: 3 in stock
Availability: 3 in stock
| Includes Inner Ring: | No | Series: | Standard |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Radial Clearance: | Normal | Misalignment: | No |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Number of Rows: | 1 | Bore Type: | Straight |
| Platform: | Guiderol Bearing | Full Complement/Caged: | Full Complement |
| Sealed: | None | Duplexing: | No |
| Static Load Rating (lb): | 23, 100 lb | Speed [Max] Oil (RPM): | 4, 800 rpm |
| Speed [Max] Grease (RPM): | 2, 400 rpm | Dynamic Load Rating (lb): | 8, 300 lb |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 16 | Flanges: | No flange |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166061777 |
| Weight: | 0.34 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
