- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
GR 10

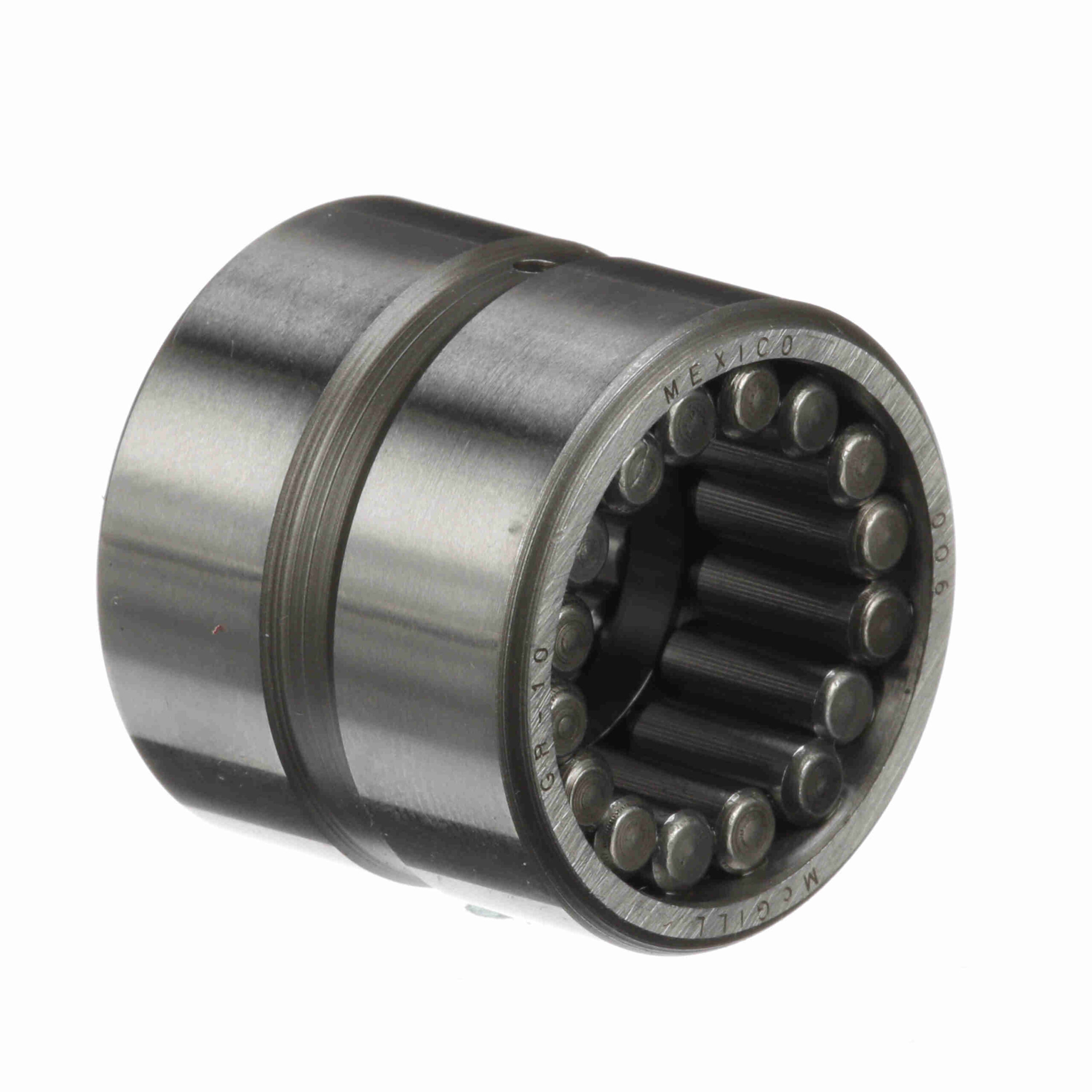

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – GR 10
$42.78
Availability: 36 in stock
Availability: 36 in stock
| Includes Inner Ring: | No | Series: | Standard |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Speed [Max] Oil (RPM): | 9, 600 rpm | Dynamic Load Rating (lb): | 4, 700 lb |
| Sealed: | None | Static Load Rating (lb): | 9, 100 lb |
| Full Complement/Caged: | Full Complement | Speed [Max] Grease (RPM): | 4, 800 rpm |
| Related Inner Ring: | MI 6 | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166061166 | Weight: | 0.58 LB |
| Packaged Length: | 2.4 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
