- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Double rubber-lipped with both seal lips turned out
- With separable inner ring
GR 10 RSS/MI 6

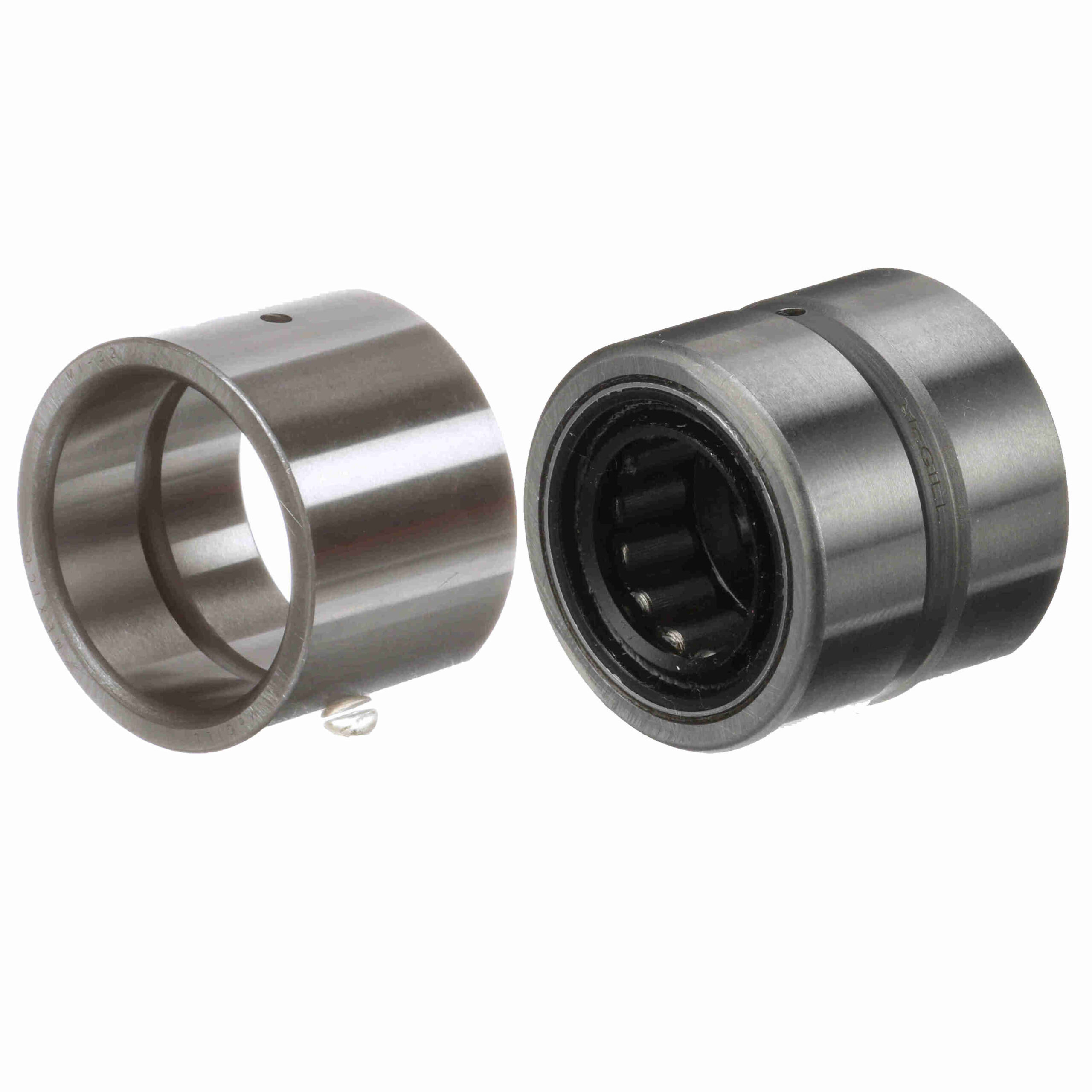

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 10 RSS/MI 6
$58.61
Out of stock
Out of stock
| Series: | Standard | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Includes Inner Ring: | Yes | Cage Material: | No retainer |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Full Complement |
| Speed [Max] Grease (RPM): | 6, 100 rpm | Duplexing: | No |
| Static Load Rating (lb): | 6, 400 lb | Platform: | Guiderol Bearing |
| Dynamic Load Rating (lb): | 3, 400 lb | Standard Met: | ABMA, ISO |
| Precision Rating: | Not Rated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Inner ring - both sides | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Retainer: | No |
| Operating Temperature Range (F): | -20F to 250 °F °F | UPC: | 726166061272 |
| Weight: | 0.20 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
