- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
FB-32RC

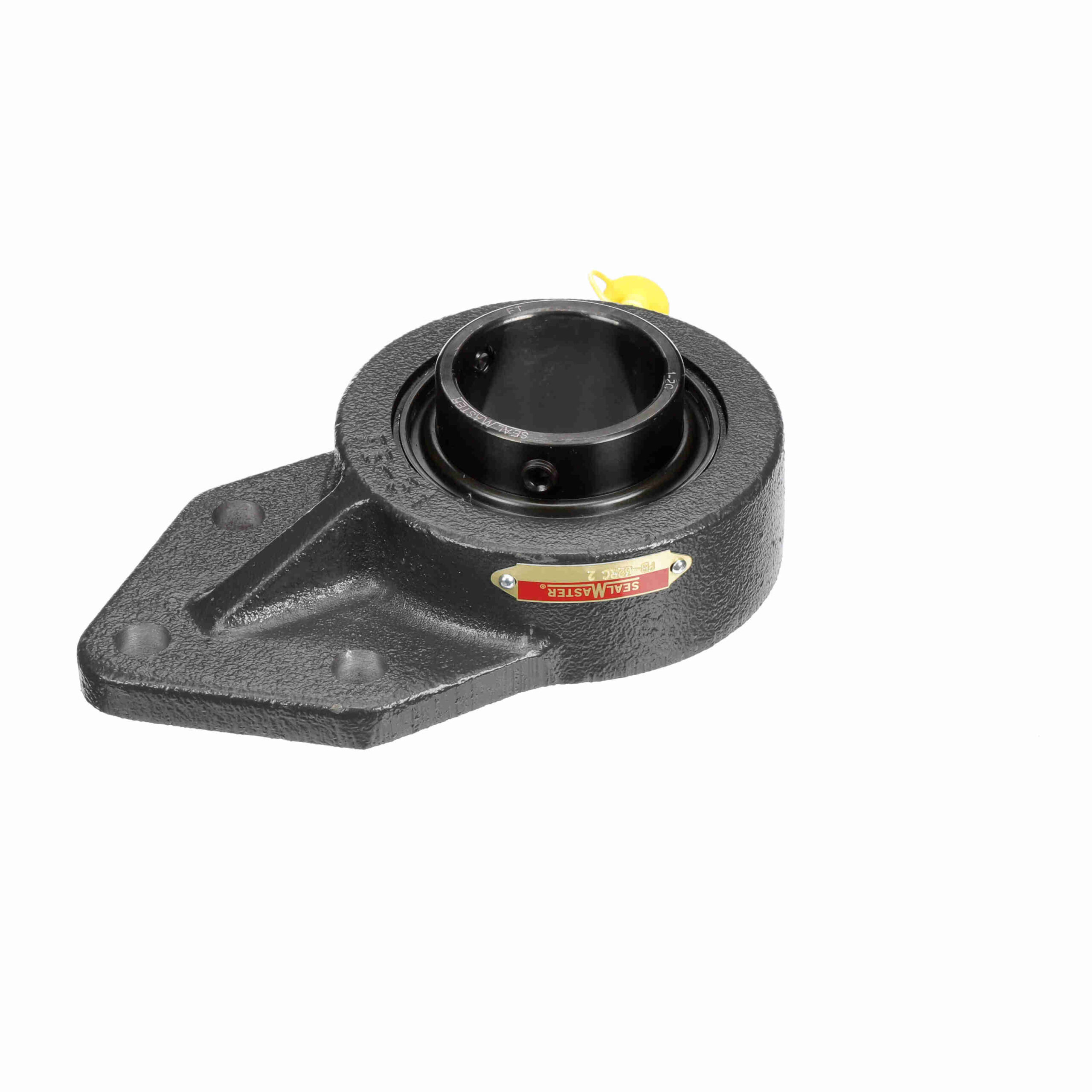

Sealmaster Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – FB-32RC
$354.15
Out of stock
Out of stock
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Speed (Max): | 3550 | Housing Base: | Solid |
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Housing Type: | Flange, Bracket, Three Bolt | Housing Material: | Cast Iron |
| Retainer Type: | Land Riding Retainer | Seal Type: | Single Lip Contact Seal |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Bore Shape: | Straight |
| Expansion: | No | Insert No.: | 1-2C |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Locking Type: | Setscrew |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Color: | Gray | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | UPC: | 662461026168 |
| Weight: | 5.10 LB | Packaged Length: | 5.19 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 7.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
