- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
FB-20

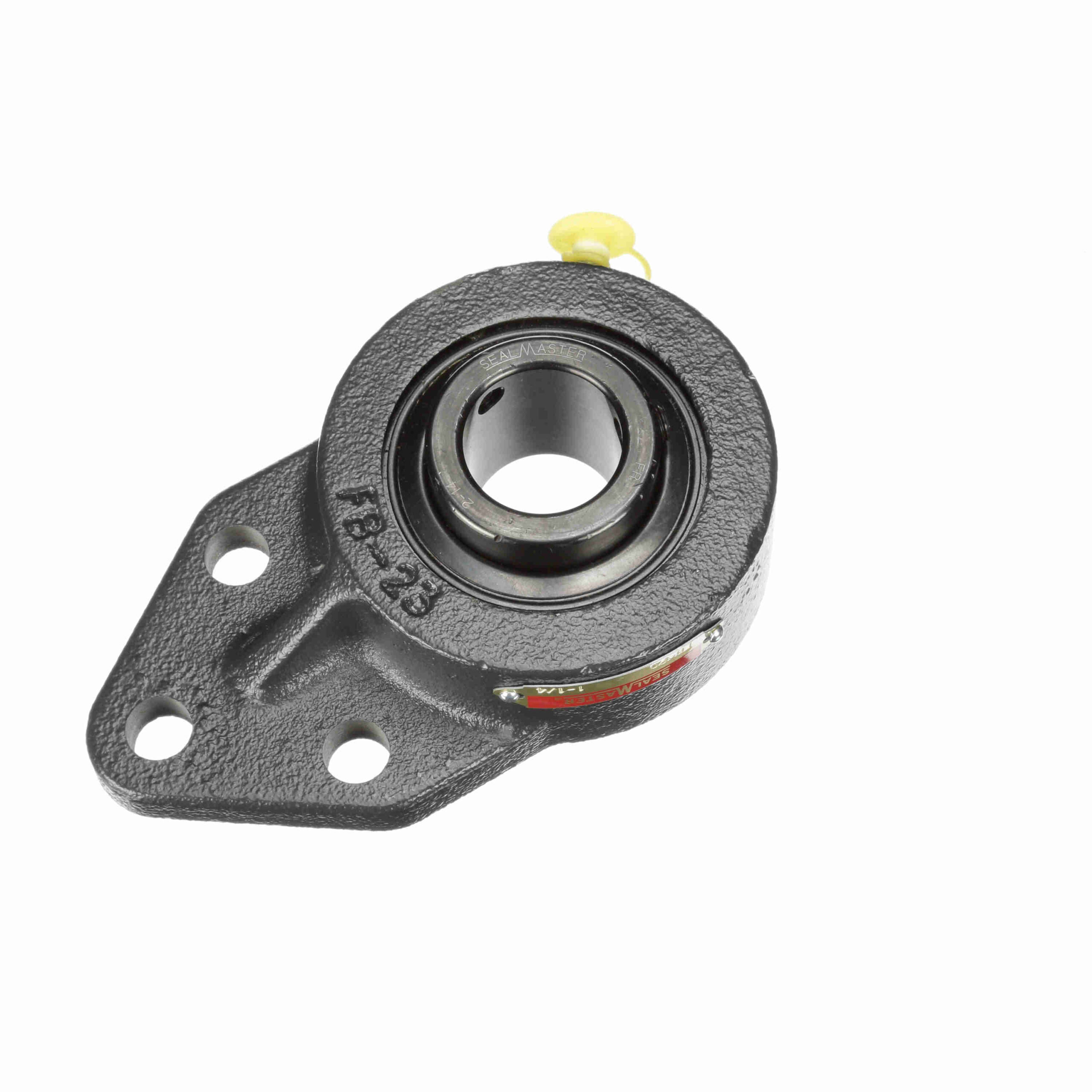

Sealmaster Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – FB-20
$189.66
Availability: 9 in stock
Availability: 9 in stock
| Measure Units: | Inch | Speed (Max): | 4650 |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Duty Series: | Standard Duty |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | 2-14 |
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
| Seal Type: | Felt Labyrinth Seal | Bore Shape: | Straight |
| Retainer Type: | Land Riding Retainer | Housing Base: | Solid |
| Expansion: | No | Housing Type: | Flange; Bracket; Three Bolt |
| Rolling Element: | Ball Bearing | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Housing Color: | Gray | End Cap: | No |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662461010211 |
| Weight: | 3.78 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
