- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
F 55 MM

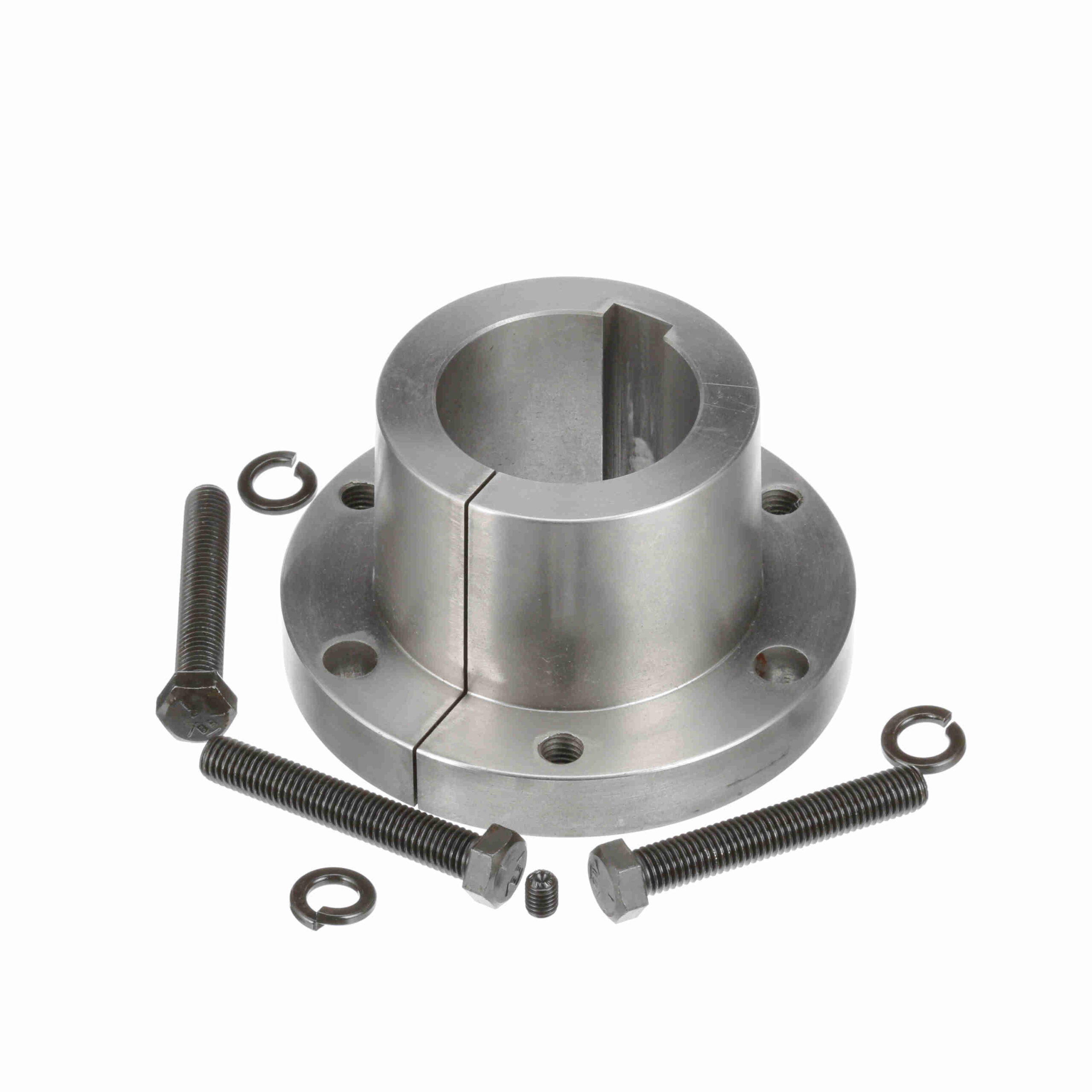

Browning Q-D Bushing – Metric Bore Type – F 55 MM
$757.60
Out of stock
Out of stock
| Total Length (in): | 3.68 in | Bushing Type: | F |
|---|---|---|---|
| Total Length (mm): | 93.472 mm | Cap Screws (No.): | 3 |
| Keyway: | 16mm x 5mm | Torque Capacity (in-lb): | 30, 000 |
| Cap Screws (Bolt Circle): | 5.625 | Product Type: | Q-D Bushing |
| Length Through Bore (mm): | 93.472 mm | Outside Diameter (in): | 6.625 in |
| Wrench Torque (ft.-lbs.): | 75 | Compatible Bore Size [Max] (mm): | 55 mm |
| Cap Screws (Size): | 9/16-12 x 3 5/8 | Mounting Type: | Conventional |
| Outside Diameter (mm): | 168.275 mm | Bore Type: | Metric |
| Bore Size (mm): | 55 mm | Barrel Length: | 2.7425 in |
| Barrel Diameter: | 4.375 in | Flange Thickness: | 0.9375 in |
| Material: | Gray Iron - G3047 | UPC: | 662289615506 |
| Weight: | 16.00 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7.19 Inches | Packaged Height: | 4 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
