- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

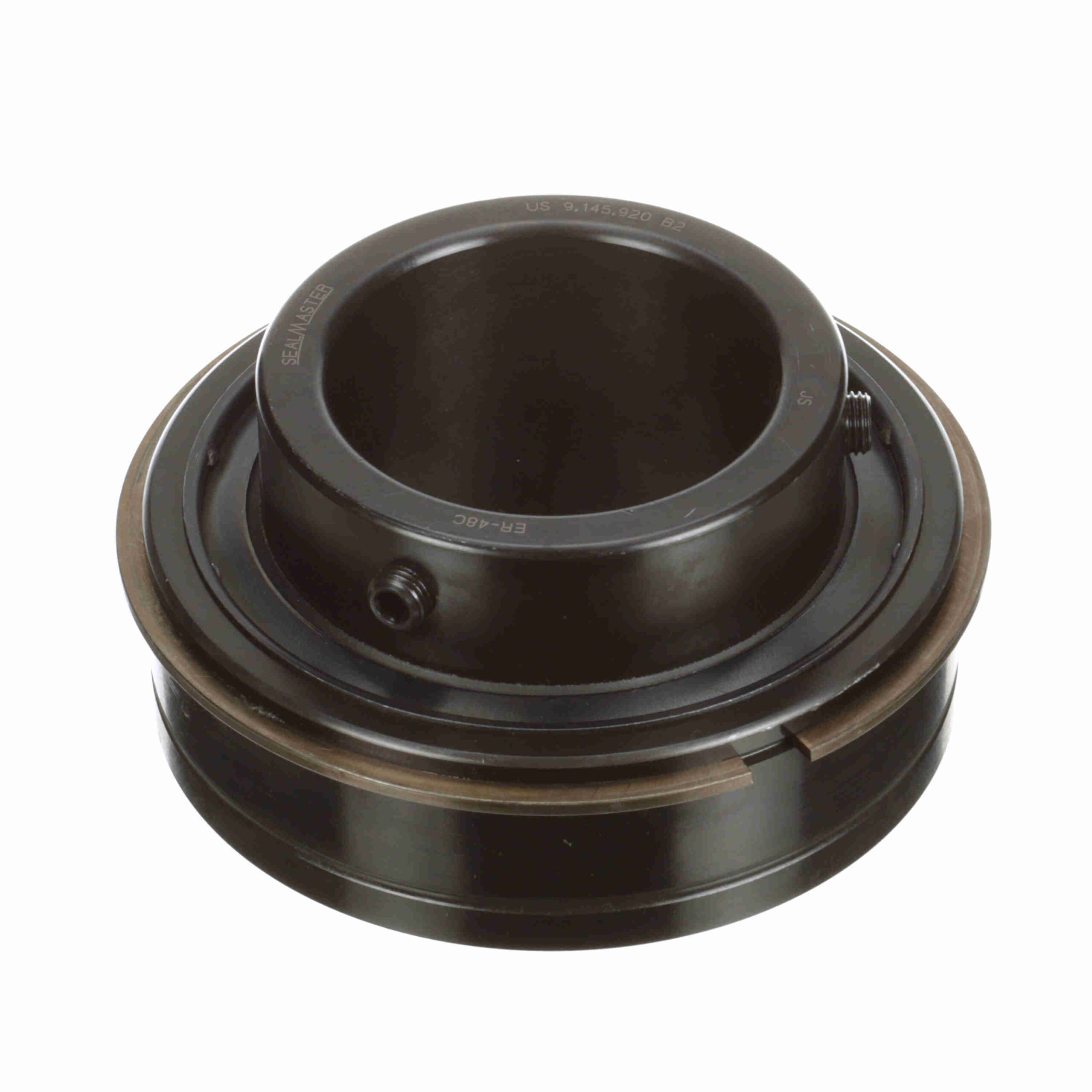

ER-48C
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ER-48C
$485.82
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel; Black Oxided |
|---|---|---|---|
| Housing Type: | Insert (ER Style) | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Radius: | 0.12 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Duty Series: | Standard |
| Measure Units: | Inch | Retainer Type: | Land Riding Retainer |
| Seal Type: | Single Lip Contact Seal | Lubrication: | Lithium Complex NLGI 2 Grease |
| Expansion: | No | Misalignment: | None |
| Locking Type: | Setscrew | Internal Clearance: | Standard |
| Speed (Max): | 1950 | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 17, 412 | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 13, 174 | Cage Material: | Brass |
| Series: | ER | Precision Rating: | ABEC 1 |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Cylindrical |
| UPC: | 662461025079 | Weight: | 8.65 LB |
| Packaged Length: | 5.75 Inches | Packaged Width: | 5.63 Inches |
| Packaged Height: | 3.63 Inches | HTC: | 8482.10.5056 |
| Country of Origin: | United States of America |
