- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

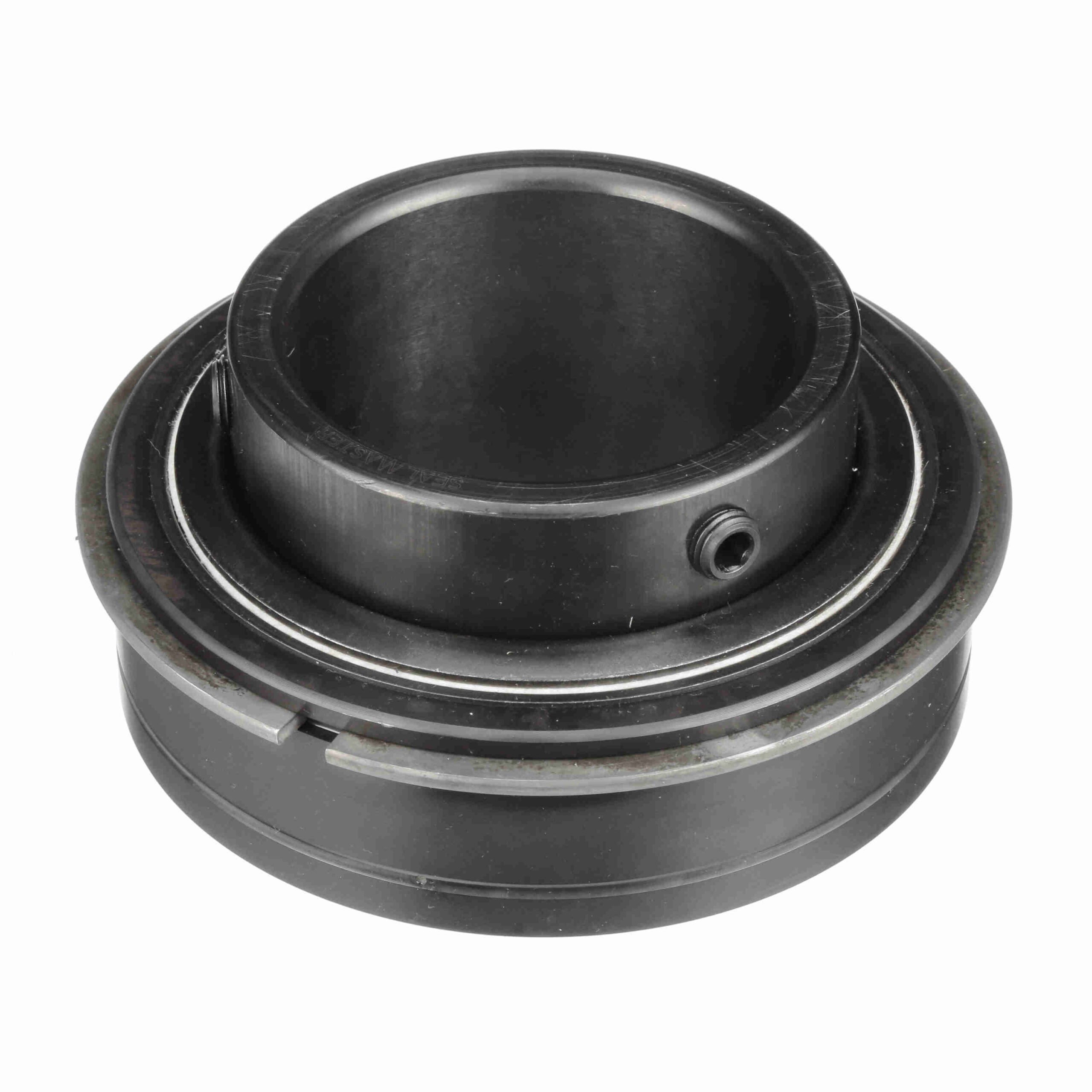

ER-47
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ER-47
$264.63
Availability: 3 in stock
Availability: 3 in stock
| Set Screw Thread: | 7/16-20 UNF X .438 | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Insert (ER Style) | Rolling Element: | Ball Bearing |
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard |
| Measure Units: | Inch | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Radius: | 0.08 |
| Expansion: | No | Locking Type: | Setscrew |
| Internal Clearance: | Standard | Speed (Max): | 2450 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 14, 839 | Misalignment: | None |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 11, 224 |
| Series: | ER | Precision Rating: | ABEC 1 |
| Cage Material: | Brass | Grease Fitting Thread Size: | 1/4-28 UNF-3A X .250 |
| Outer Race Profile: | Cylindrical | Inner Race Profile: | Wide Inner Ring |
| UPC: | 662461008898 | Weight: | 6.24 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 3.13 Inches |
| Packaged Height: | 5.56 Inches | HTC: | 8482.10.5056 |
| Country of Origin: | United States of America |
