- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

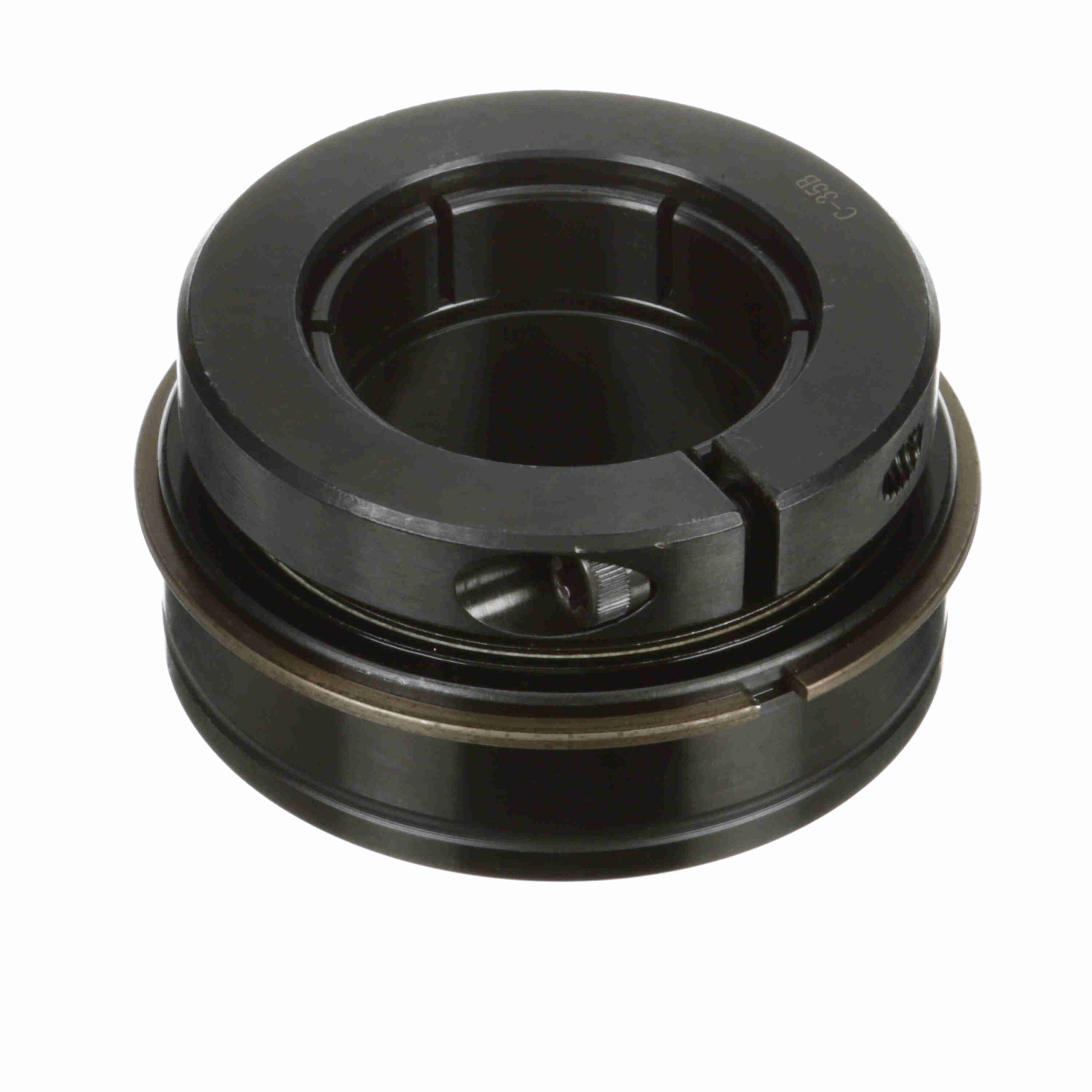

ER-35T
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – ER-35T
$161.90
Availability: 3 in stock
Availability: 3 in stock
| Maximum Operating Temperature: | 220 °F | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided | Housing Type: | Insert (ER Style) |
| Retainer Type: | Land Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Radius: | 0.08 | Seal Type: | Felt Labyrinth Seal |
| Duty Series: | Standard | Set Screw Thread: | 3/8-24 UNF X .31 |
| Bore Shape: | Straight | Measure Units: | Inch |
| Misalignment: | None | Locking Type: | Concentric |
| Speed (Max): | 4500 | Internal Clearance: | Standard |
| Lubrication: | Lithium Complex NLGI 2 Grease | Expansion: | No |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Tapered Lands |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 6, 601 |
| Series: | ER-T | Cage Material: | PPS |
| Precision Rating: | ABEC 1 | Grease Fitting Thread Size: | 3/8-24 UNF X .31 |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Cylindrical |
| UPC: | 662461031308 | Weight: | 3.44 LB |
| Packaged Length: | 4.25 Inches | Packaged Width: | 2.25 Inches |
| Packaged Height: | 4.25 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
