- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
ER-208TMC

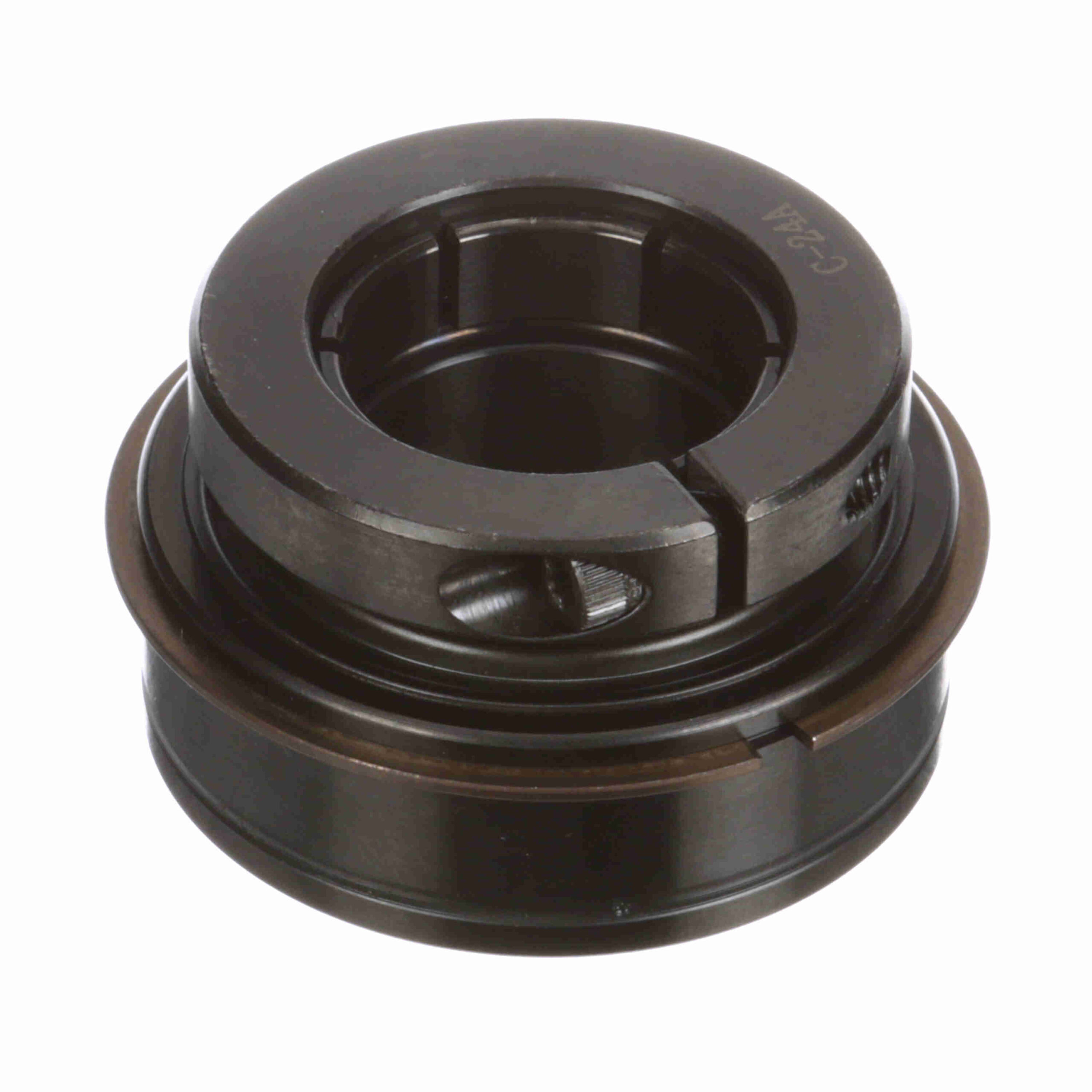

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – ER-208TMC
$149.35
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Housing Type: | Insert (ER Style) | Retainer Type: | Land Riding Retainer |
| Measure Units: | Metric | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Duty Series: | Standard | Radius: | 0.062 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Expansion: | No | Relubricatable: | Yes |
| Misalignment: | None | Locking Type: | Concentric |
| Internal Clearance: | Standard | Speed (Max): | 4150 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Outer Ring Land Profile: | Tapered Lands |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Radial Static Load Capacity (lb): | 4, 467 | Precision Rating: | ABEC 1 |
| Series: | ER-T | Cage Material: | PPS |
| Outer Race Profile: | Cylindrical | Inner Race Profile: | Wide Inner Ring |
| UPC: | 662461254011 | Weight: | 2.02 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 3.63 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
