- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-51

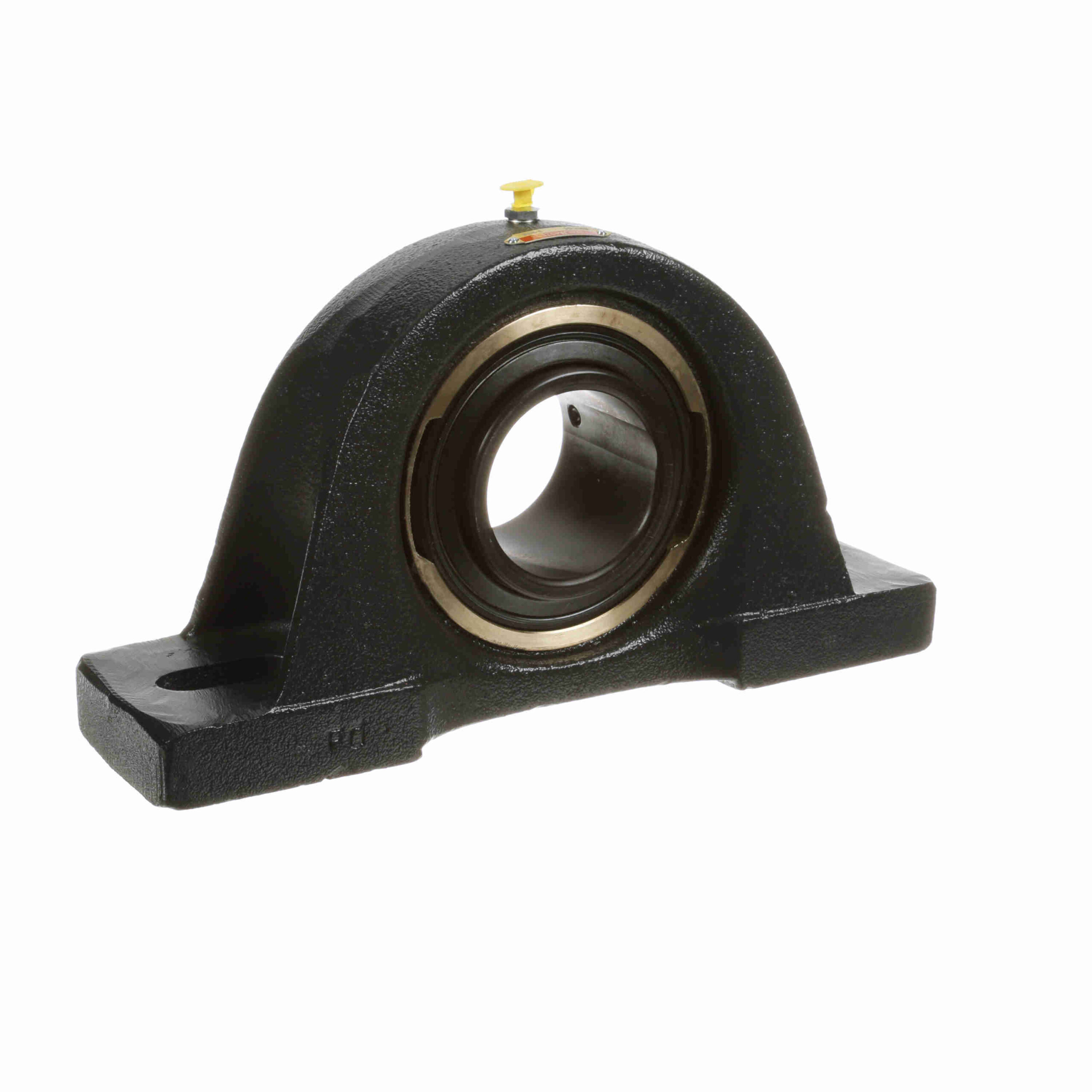

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – EMP-51
$1,362.45
Out of stock
Out of stock
| Speed (Max): | 2250 | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Internal Clearance: | Standard |
| Housing Base: | Solid | Housing Type: | Pillow Block, Two Bolt |
| Expansion: | Yes | Rolling Element: | Ball Bearing |
| Insert No.: | AR-2-33 | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Duty Series: | Medium Duty | Measure Units: | Inch |
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 17, 412 |
| Misalignment: | ±2.0° Misalignment - Static Only | Relubricatable: | Yes |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Misalignment Type: | Static Only | End Cap: | No |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 13, 174 |
| UPC: | 662461014219 | Weight: | 42.55 LB |
| Packaged Length: | 17.25 Inches | Packaged Width: | 9.88 Inches |
| Packaged Height: | 4.88 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
