- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Looser than standard housing fit for ease of alignment on lightweight frames
- Air Handling noise check for quiet operation
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-35 HTA

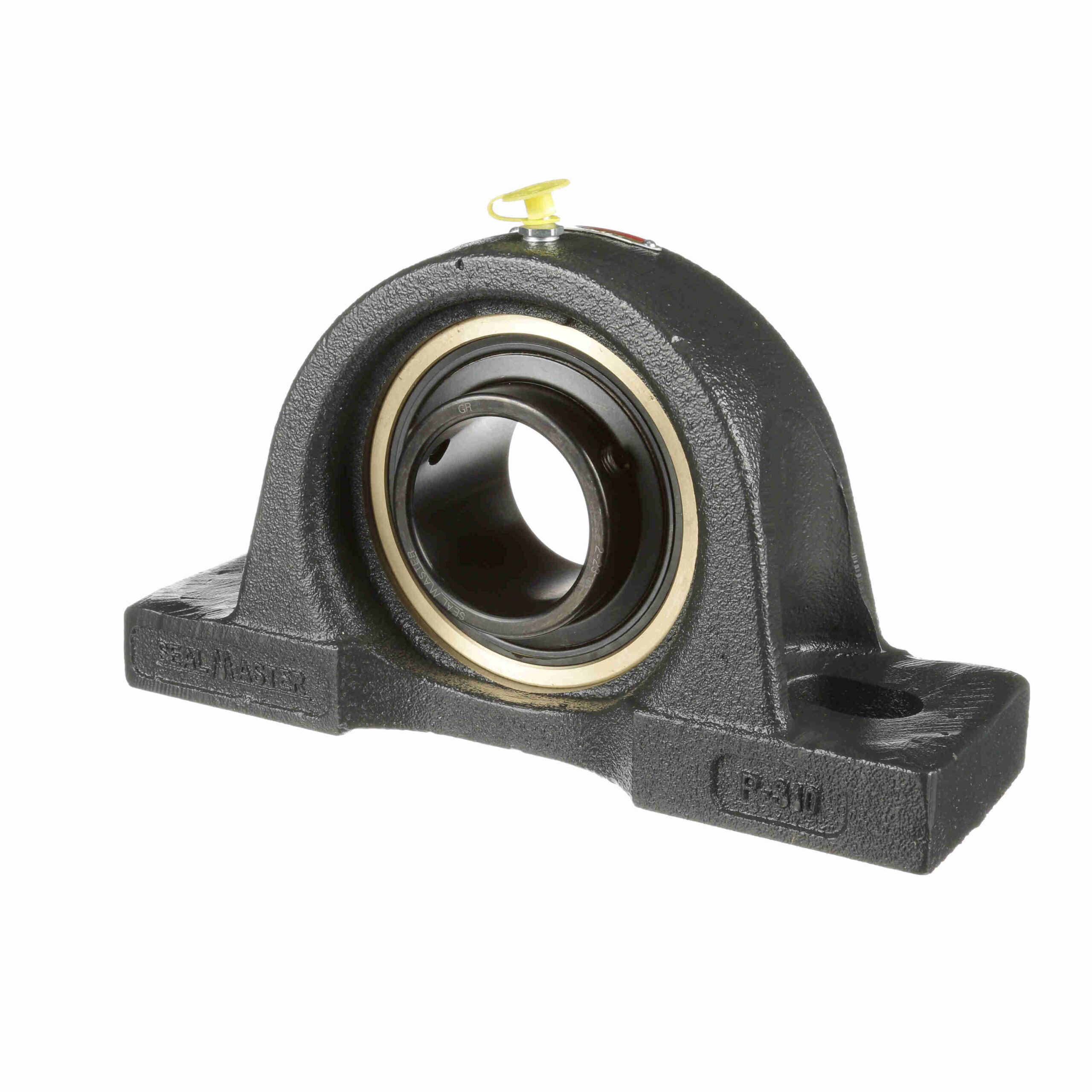

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature & Air Handling Housing Fit, Noise Tested – EMP-35 HTA
$888.77
Out of stock
Out of stock
| Seal Type: | High Temp Labyrinth | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Internal Clearance: | Increased |
| Measure Units: | Inch | Housing Base: | Solid |
| Radial Dynamic Load Capacity (lb): | 11, 789 lb | Housing Construction: | One Piece |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Platform: | Air Handling | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Options: | High Temperature and Air Handling Housing Fit, Noise Tested |
| Housing Color: | Gray | End Cap: | No |
| Radial Static Load Capacity (lb): | 8, 150 lb | Maximum Speed (RPM): | 1400 rpm |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | Synthetic NLGI 2 High Temperature Grease | Housing Type: | Pillow Block, Two Bolt |
| Locking Type: | Setscrew | Housing Style: | Pillow Block |
| Duty/Series: | Medium Duty | Fixed vs. Expansion: | Expansion |
| Insert Number: | AR-2-23 HT | Inner Race Heat Treat Method: | Zone-Hardened |
| Ability to Relubricate: | Yes | Operating Temperature Range (F): | Max. +400°F °F |
| Maximum Operating Temperature (F): | 400 °F | UPC: | 662461000000 |
| Weight: | 15.60 LB | Packaged Length: | 10.38 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
