- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-27 CXU

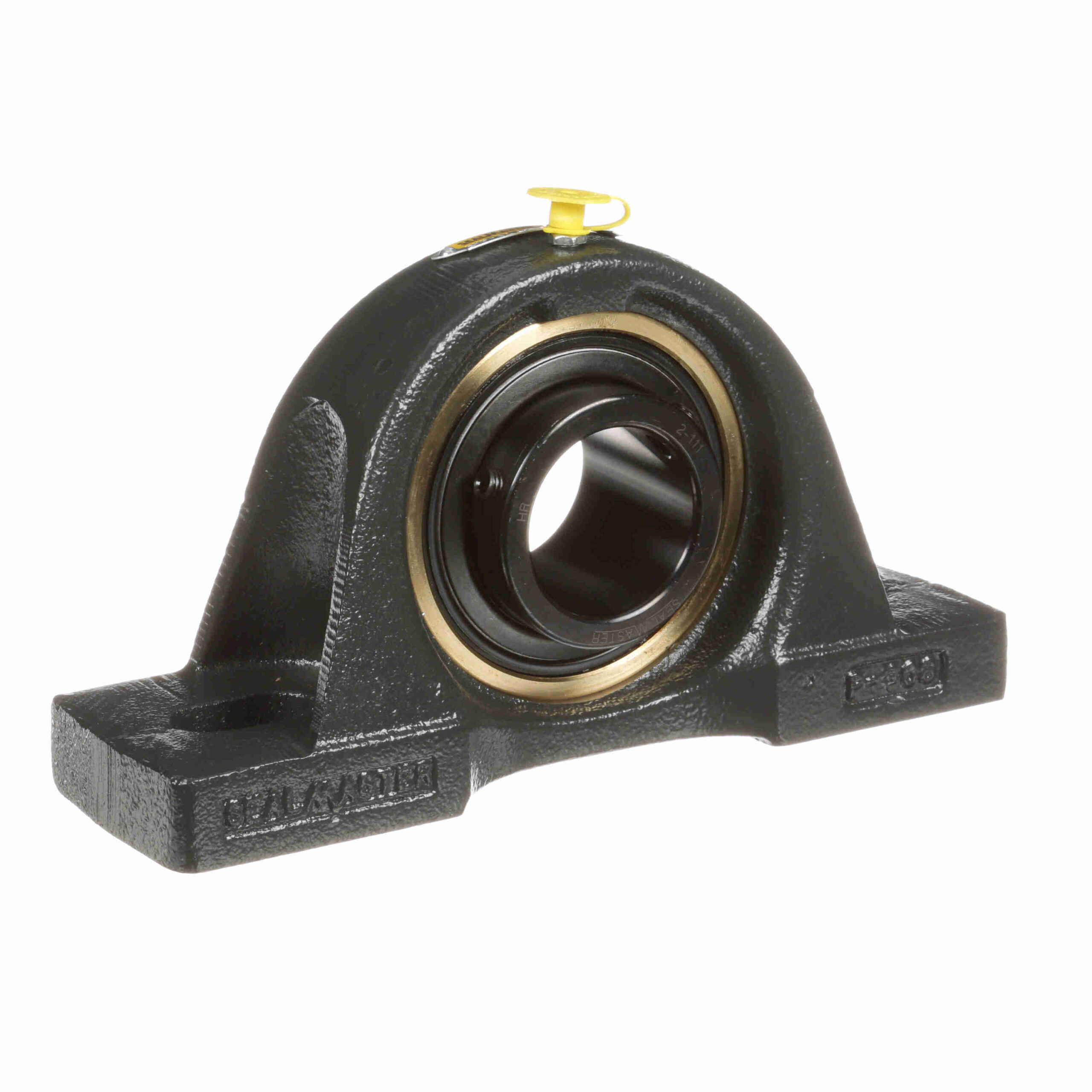

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – EMP-27 CXU
$606.90
Out of stock
Out of stock
| Internal Clearance: | Standard | Measure Units: | Inch |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 lb |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Replaceable Insert: | Yes | Options: | Air Handling Housing Fit, Noise Tested |
| Platform: | Air Handling | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 139 lb | Housing Type: | Pillow Block, Two Bolt |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Material: | Cast Iron |
| Duty/Series: | Medium Duty | Locking Type: | Setscrew |
| Fixed vs. Expansion: | Expansion | Housing Style: | Pillow Block |
| Maximum Speed (RPM): | 3800 rpm | Retainer Type: | Land Riding Retainer |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | AR-2-111 | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461000000 | Weight: | 9.00 LB |
| Packaged Length: | 9.25 Inches | Packaged Width: | 5.12 Inches |
| Packaged Height: | 3 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
