- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-16T

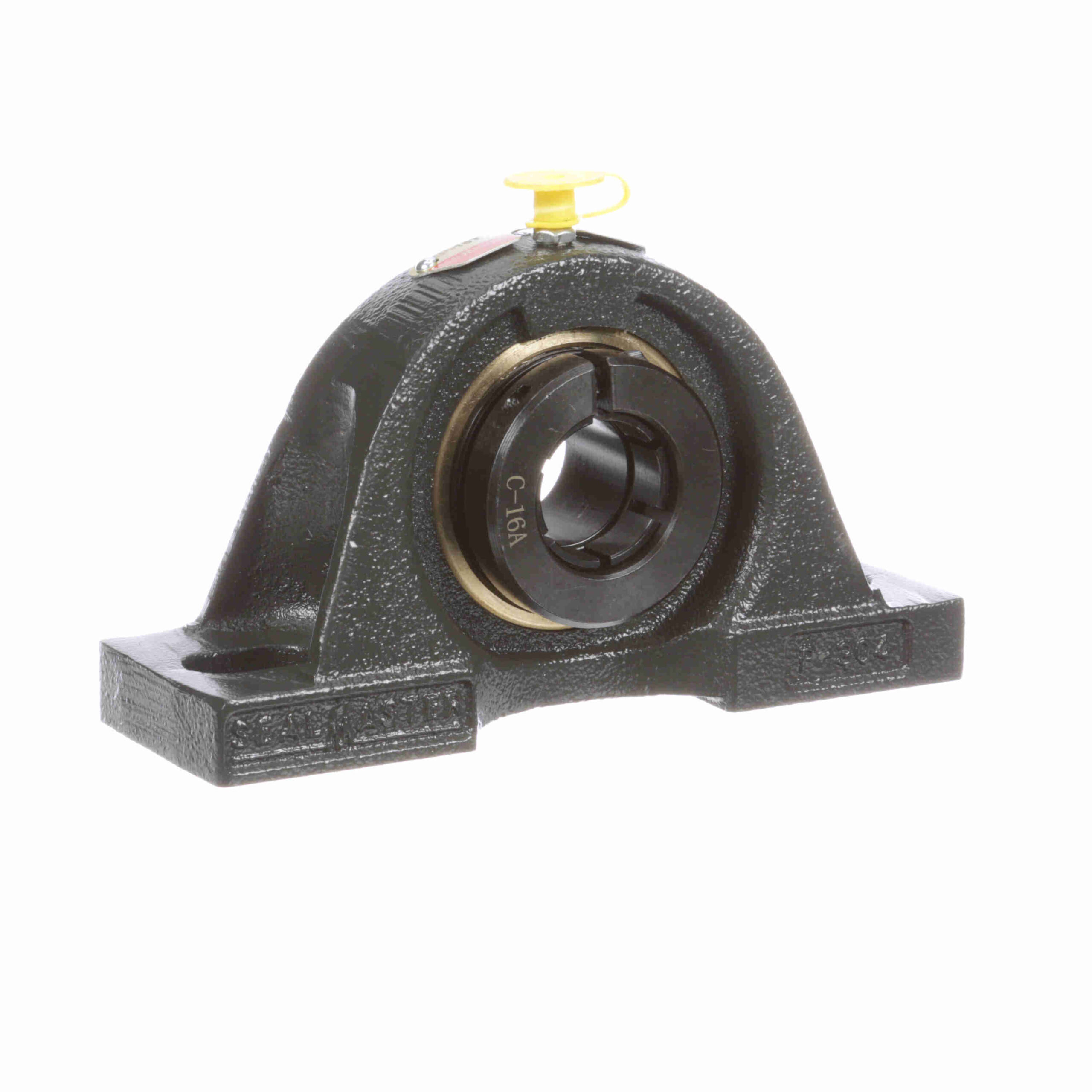

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – EMP-16T
$323.94
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 lb |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 1, 651 lb |
| Locking Type: | Concentric | Housing Style: | Pillow Block |
| Duty/Series: | Medium Duty | Housing Type: | Pillow Block, Two Bolt |
| Retainer Type: | Land Riding Retainer | Maximum Speed (RPM): | 9000 rpm |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Fixed vs. Expansion: | Expansion | Maximum Operating Temperature (F): | 220 °F |
| Insert Number: | AR-2-1T | Inner Race Heat Treat Method: | Zone-Hardened |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 3.75 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
