- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing
EFP 315

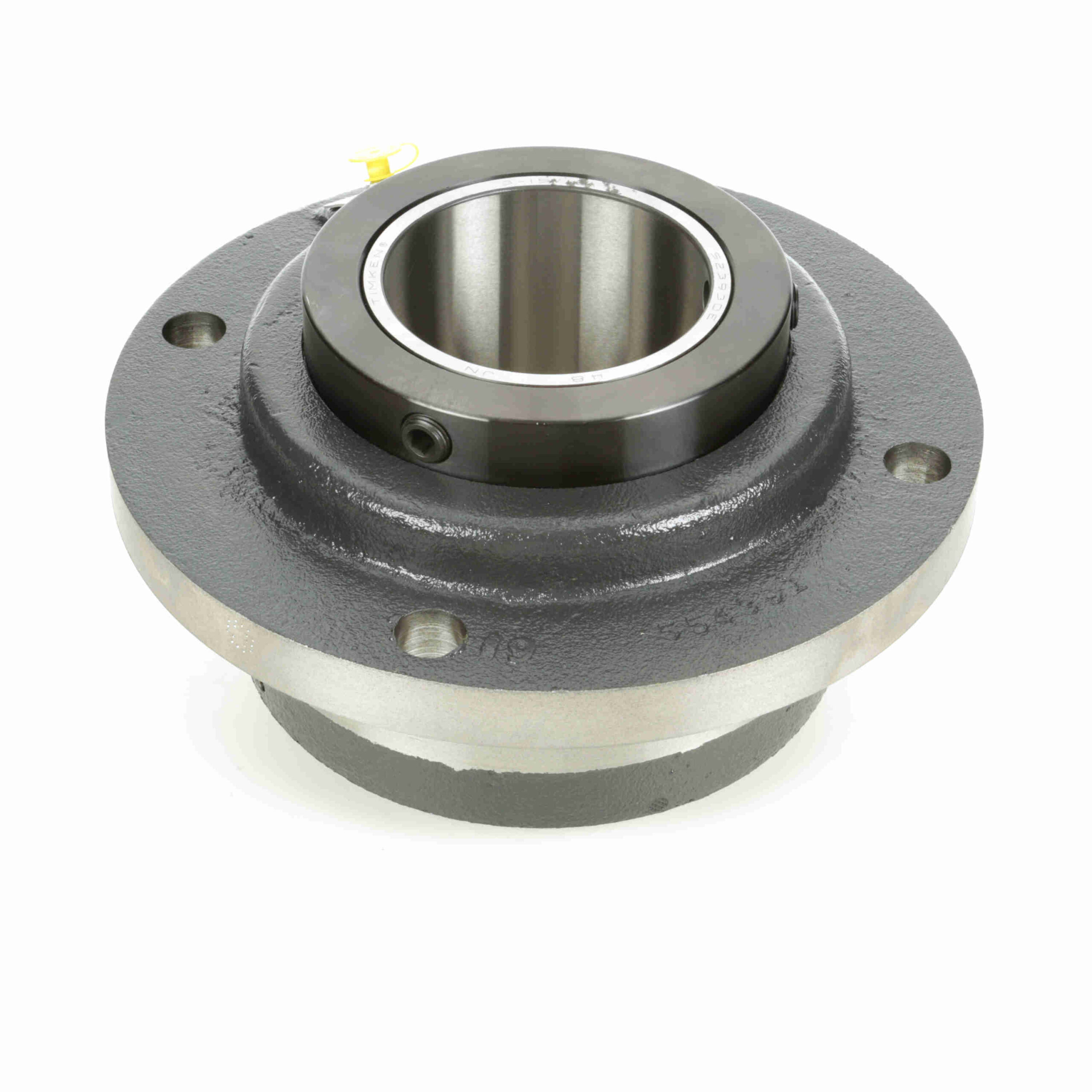

Sealmaster Mounted Cast Iron Piloted Flange Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – EFP 315
$3,295.25
Out of stock
Out of stock
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Rolling Element: | Tapered Roller | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Seal Type: | Felt Labyrinth Seal |
| Expansion: | Yes | Insert Material: | 52100 Bearing Steel |
| Housing Type: | Flange; Piloted | Relubricatable: | Yes |
| Pilot Configuration: | With Pilot | Speed (Max): | 1250 |
| Misalignment: | ±3.0° Misalignment - Static Only | Duty Series: | Standard |
| Housing Construction: | Split Two Piece | Internal Clearance: | Standard |
| Locking Type: | Double Collar Mount | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Lubrication: | Lithium; EP; NLGI#2 | Housing Color: | Gray |
| Platform: | RPB Series | Replaceable Insert: | No |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Retainer Material: | Steel | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Uncoated | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662288680086 | Weight: | 56.00 LB |
| Packaged Length: | 11 Inches | Packaged Width: | 11 Inches |
| Packaged Height: | 6.63 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | United States of America |
