- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 3 5/16

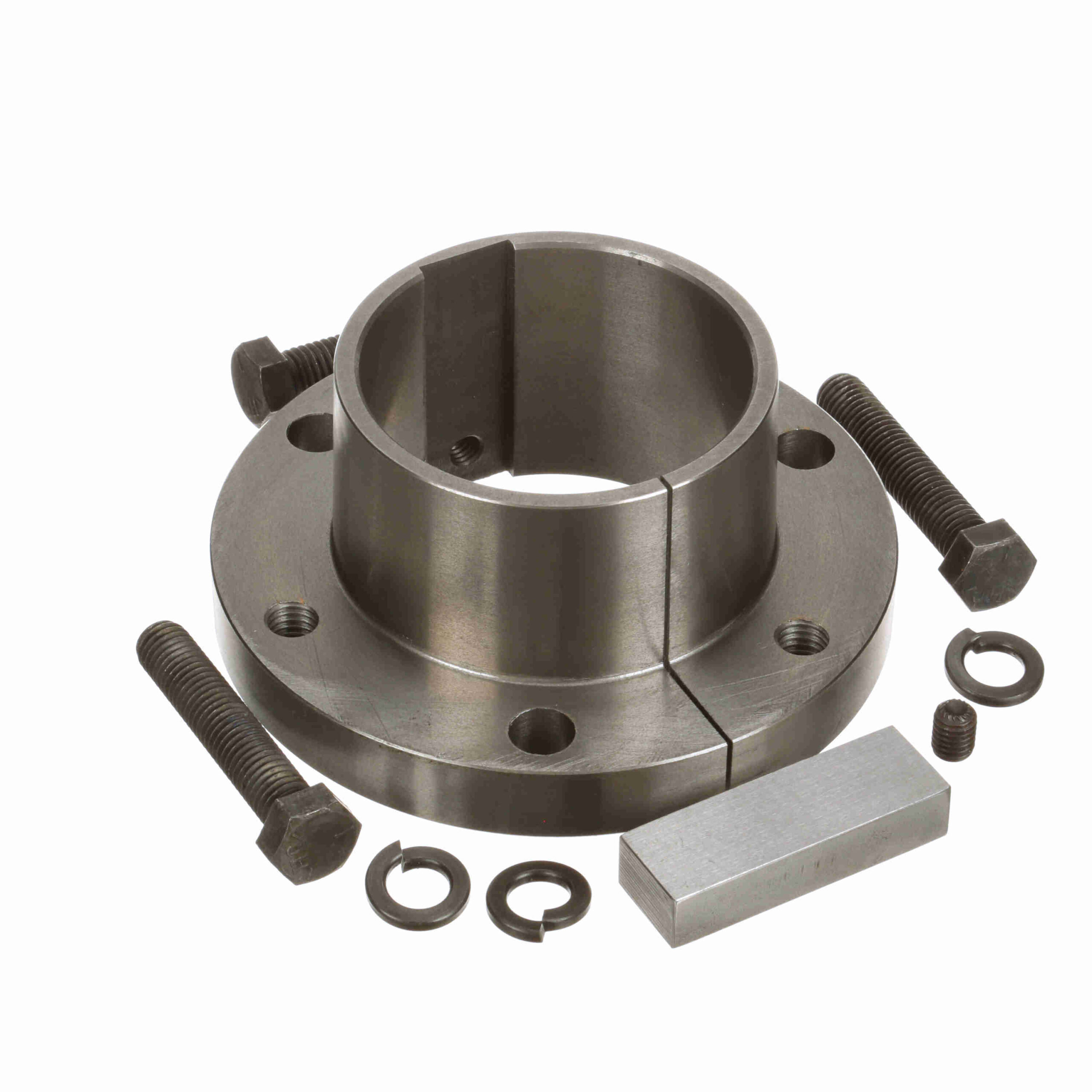

Browning Q-D Bushing – Inch Bore Type – E 3 5/16
$515.75
Out of stock
Out of stock
| Compatible Bore Size [Max] (in): | 3.3125 in | Model Name: | QD-E_Bushing_Master |
|---|---|---|---|
| Length Through Bore (in): | 2.64 in | Cap Screws (No.): | 3 |
| Bushing Type: | E | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Product Type: | Q-D Bushing | Cap Screws (Bolt Circle): | 5 |
| Mounting Type: | Conventional | Wrench Torque (ft.-lbs.): | 60 |
| Keyway: | 7/8 x 7/16 | Torque Capacity (in-lb): | 20, 000 |
| Bore Type: | Inch | Outside Diameter (in): | 6 in |
| Total Length (in): | 2.64 in | Bore Size (in): | 3.3125 in |
| Flange Thickness: | 0.75 in | Barrel Diameter: | 3.834 in |
| Material: | Ductile Iron-Grade 65-45-52 | Barrel Length: | 1.89 in |
| UPC: | 662289354399 | Weight: | 5.81 LB |
| Packaged Length: | 6.4 Inches | Packaged Width: | 6.6 Inches |
| Packaged Height: | 3.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
