- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 3 1/8

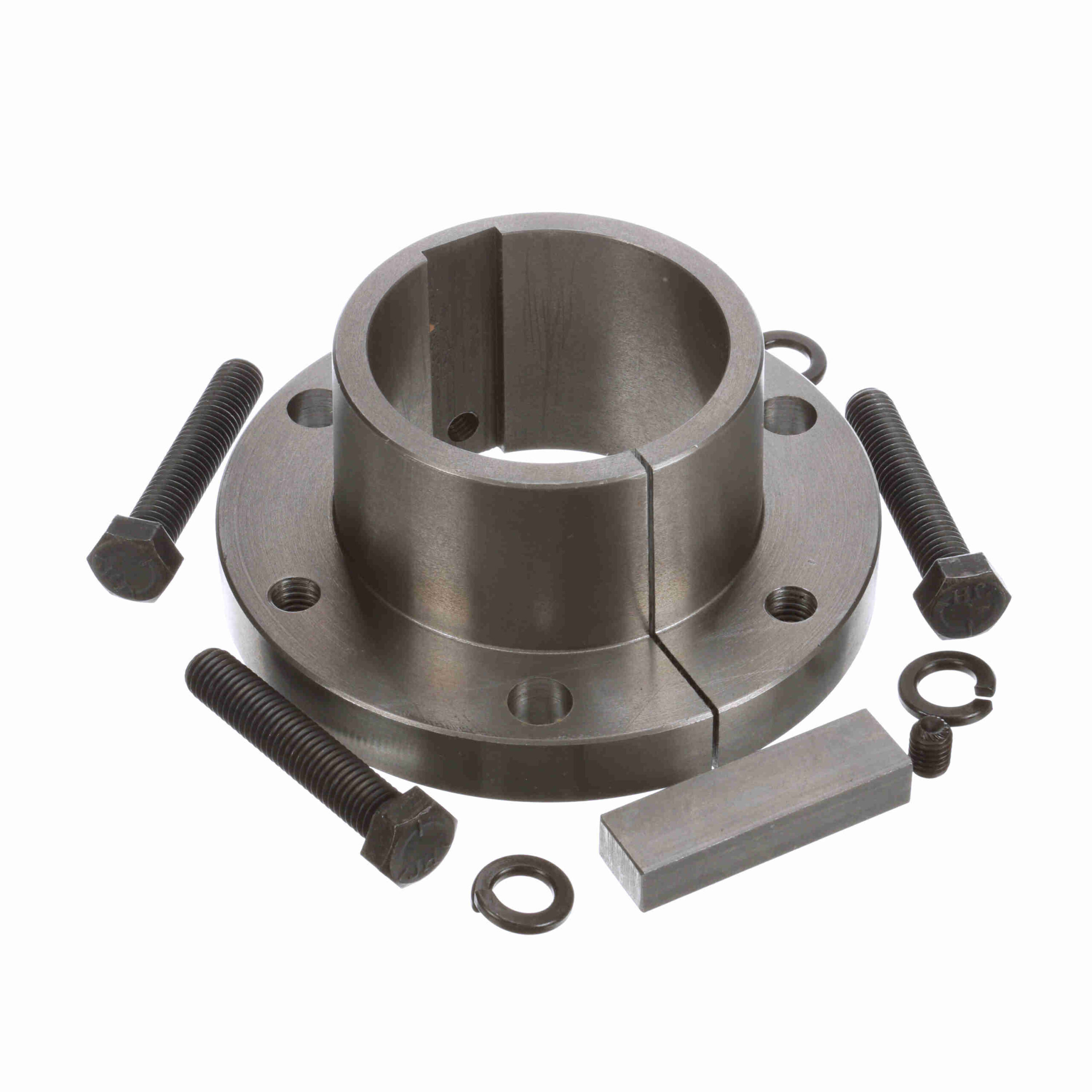

Browning Q-D Bushing – Inch Bore Type – E 3 1/8
$515.75
Out of stock
Out of stock
| Keyway: | 3/4 x 3/8 | Cap Screws (No.): | 3 |
|---|---|---|---|
| Torque Capacity (in-lb): | 20, 000 | Total Length (in): | 2.64 in |
| Mounting Type: | Conventional | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Compatible Bore Size [Max] (in): | 3.125 in | Bushing Type: | E |
| Outside Diameter (in): | 6 in | Length Through Bore (in): | 2.64 in |
| Wrench Torque (ft.-lbs.): | 60 | Model Name: | QD-E_Bushing_Master |
| Bore Type: | Inch | Product Type: | Q-D Bushing |
| Cap Screws (Bolt Circle): | 5 | Bore Size (in): | 3.125 in |
| Barrel Diameter: | 3.834 in | Barrel Length: | 1.89 in |
| Flange Thickness: | 0.75 in | Material: | Ductile Iron-Grade 65-45-49 |
| UPC: | 662289344383 | Weight: | 6.37 LB |
| Packaged Length: | 6.3 Inches | Packaged Width: | 6.3 Inches |
| Packaged Height: | 3.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
