- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 2 1/4

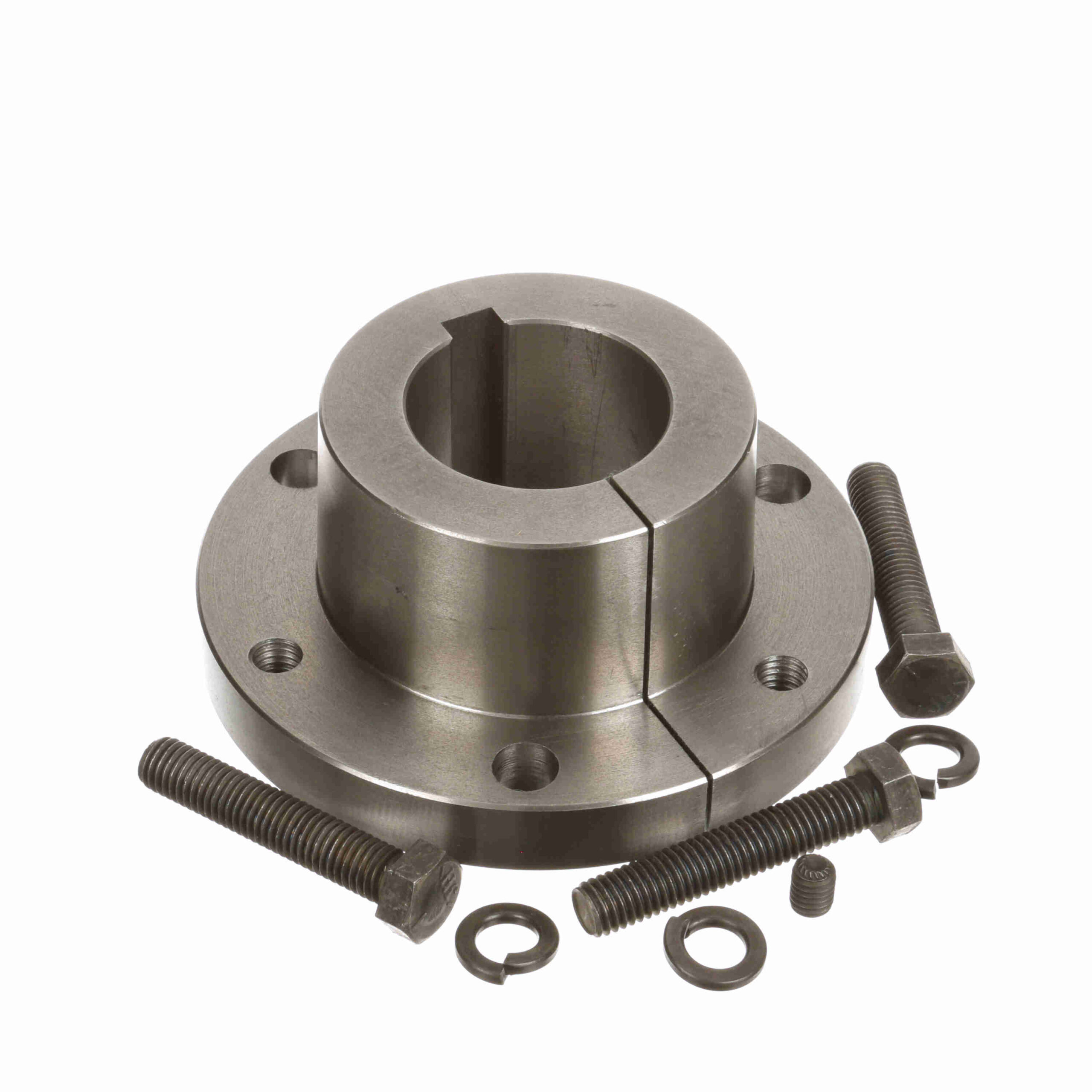

Browning Q-D Bushing – Inch Bore Type – E 2 1/4
$261.58
Out of stock
Out of stock
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 5 |
|---|---|---|---|
| Product Type: | Q-D Bushing | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Bushing Type: | E | Length Through Bore (in): | 2.64 in |
| Model Name: | QD-E_Bushing_Master | Total Length (in): | 2.64 in |
| Bore Type: | Inch | Torque Capacity (in-lb): | 20, 000 |
| Keyway: | 1/2 x 1/4 | Wrench Torque (ft.-lbs.): | 60 |
| Outside Diameter (in): | 6 in | Mounting Type: | Conventional |
| Compatible Bore Size [Max] (in): | 2.25 in | Bore Size (in): | 2.25 in |
| Barrel Length: | 1.89 in | Barrel Diameter: | 3.834 in |
| Flange Thickness: | 0.75 in | Material: | Ductile Iron-Grade 65-45-32 |
| UPC: | 662289321162 | Weight: | 8.54 LB |
| Packaged Length: | 6.4 Inches | Packaged Width: | 6.6 Inches |
| Packaged Height: | 3.3 Inches |
