- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS60Q21

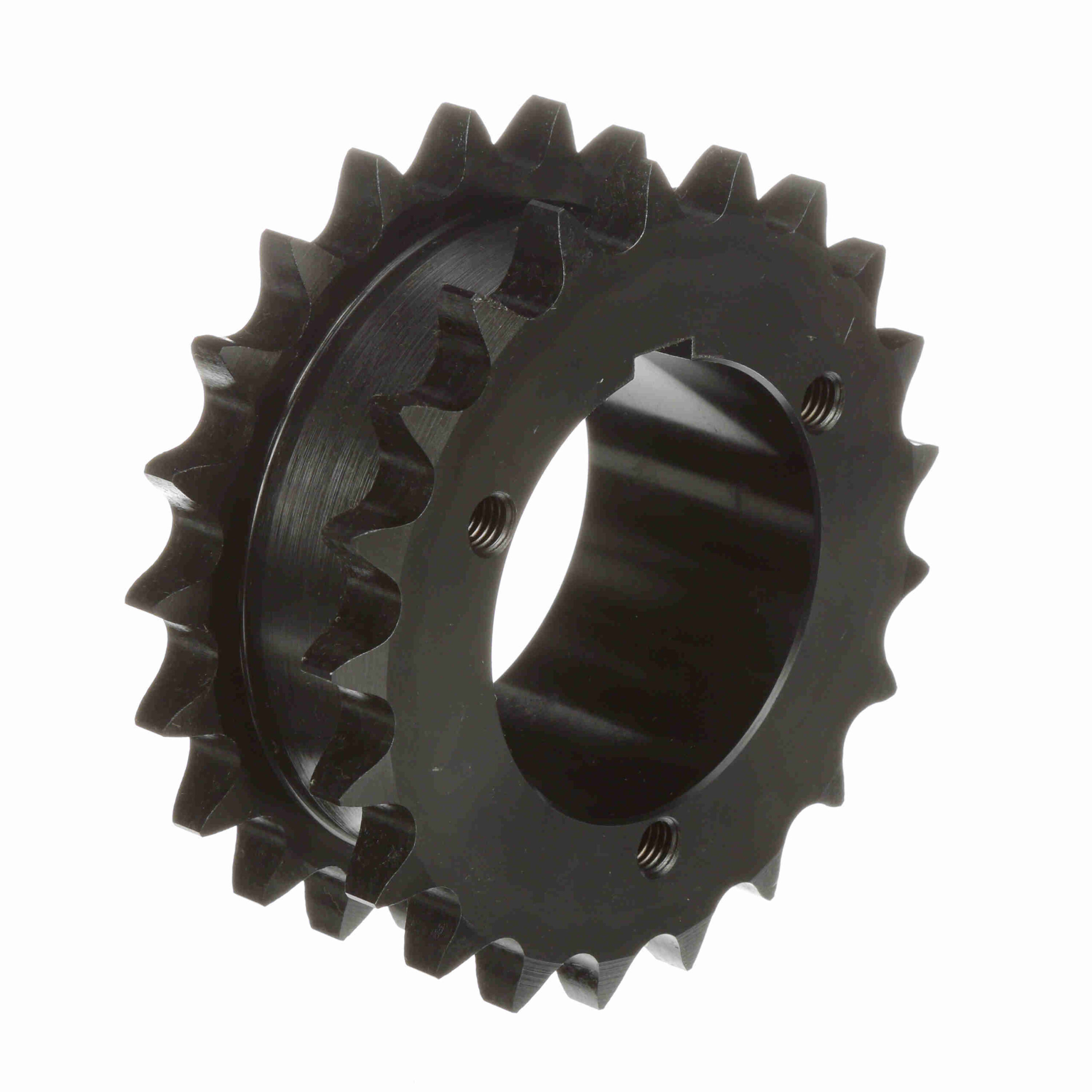

Browning Steel Bushed Bore Roller Chain Sprocket – DS60Q21
$379.10
Out of stock
Out of stock
| Material: | Steel | Pitch Diameter (in): | 5.032 in |
|---|---|---|---|
| Chain Pitch (in): | 0.75 in | Bore (Min) (in): | 0.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 2.6875 in |
| Bushing Used: | Split Taper | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Number of teeth: | 21 | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 5.426 in | Overall Length (in): | 3.03125 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Hardened Teeth: | Yes | Pitch Type: | Single |
| UPC: | 662289168484 | Weight: | 5.36 LB |
| Packaged Length: | 6.10 Inches | Packaged Width: | 6.10 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
