- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D80R48

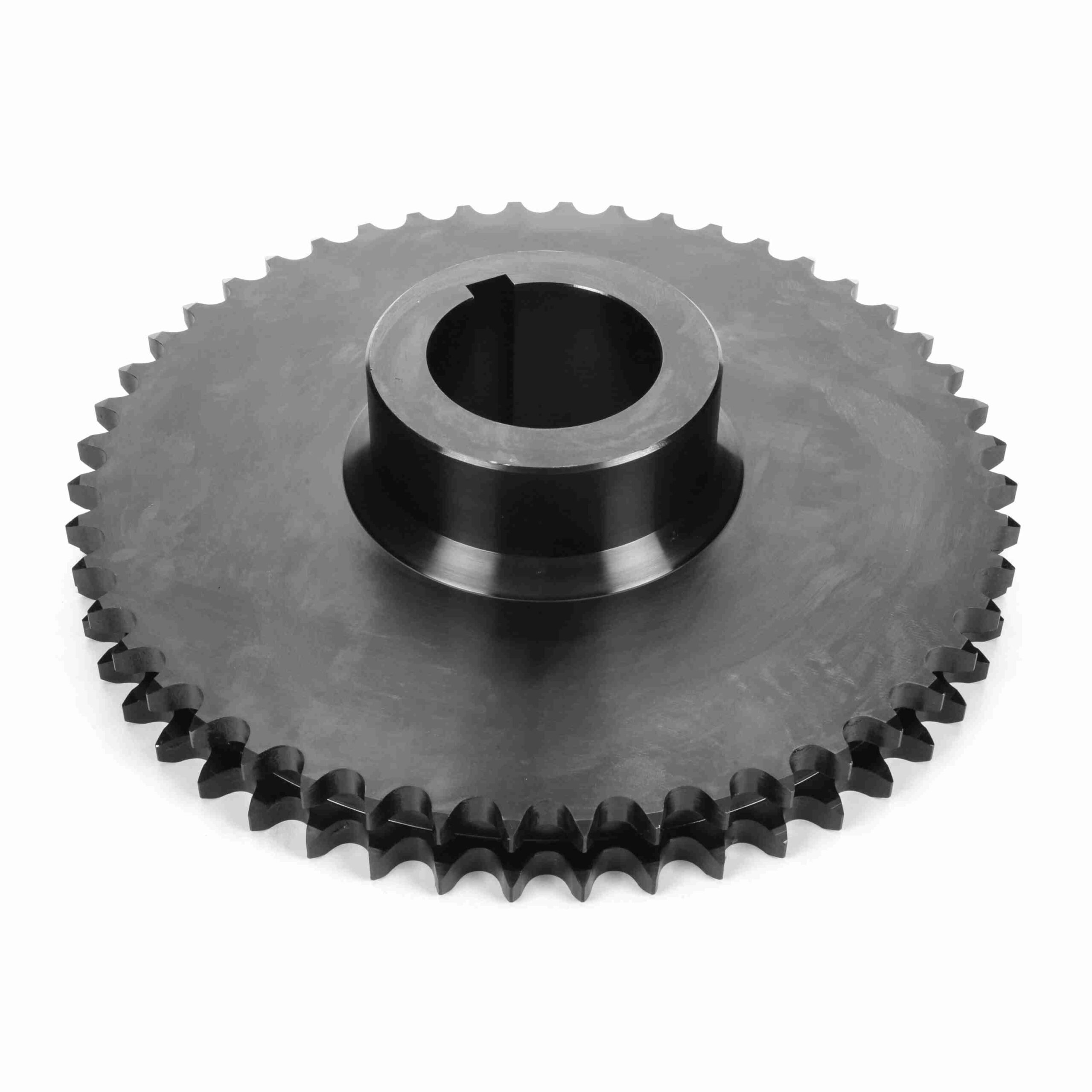

Browning Steel Bushed Bore Roller Chain Sprocket – D80R48
$1,914.75
Out of stock
Out of stock
| Bore (Max) (in): | 3.625 in | Pitch Diameter (in): | 15.2898 in |
|---|---|---|---|
| Material: | Steel | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
| Chain Pitch (in): | 1 in | Bushing Used: | Split Taper |
| Number of teeth: | 48 | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Min) (in): | 1.375 in | Outside Diameter (in): | 15.857 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 5.141375 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.625 | Minimum Bore (in): | 1.375 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 1.71 | UPC: | 662289139811 |
| Weight: | 86.00 LB | Packaged Length: | 15.86 Inches |
| Packaged Width: | 15.86 Inches | Packaged Height: | 5.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
