- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D80R20

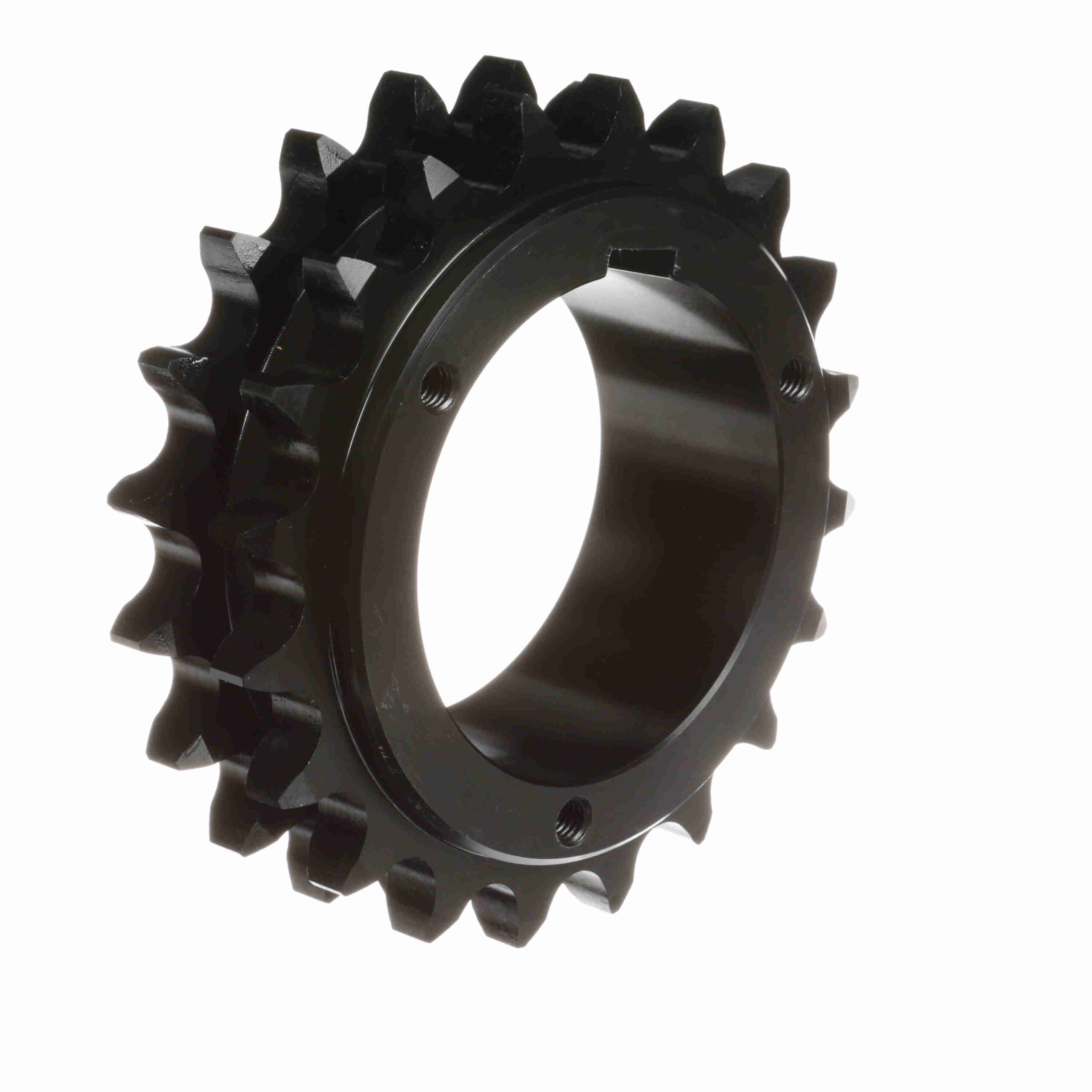

Browning Steel Bushed Bore Roller Chain Sprocket – D80R20
$495.08
Availability: 2 in stock
Availability: 2 in stock
| Number of teeth: | 20 | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Pitch Diameter (in): | 6.3925 in | Material: | Steel, Hardened Teeth |
| Bushing Used: | Split Taper | Bore (Max) (in): | 3.75 in |
| Chain Pitch (in): | 1 in | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Outside Diameter (in): | 6.914 in |
| Overall Length (in): | 3.141375 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 1.71 |
| Pitch Type: | Single | UPC: | 662289209637 |
| Weight: | 7.88 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7.19 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
